Home > Products > Milling Machine > Bed- type Milling Machine XA7150W Metal Cutting Machine for sale

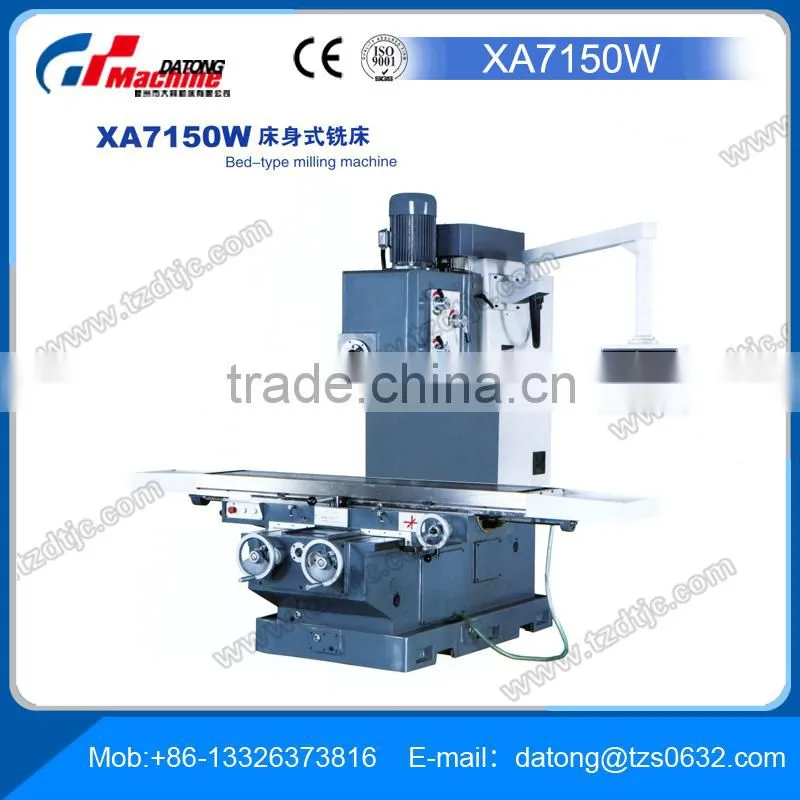

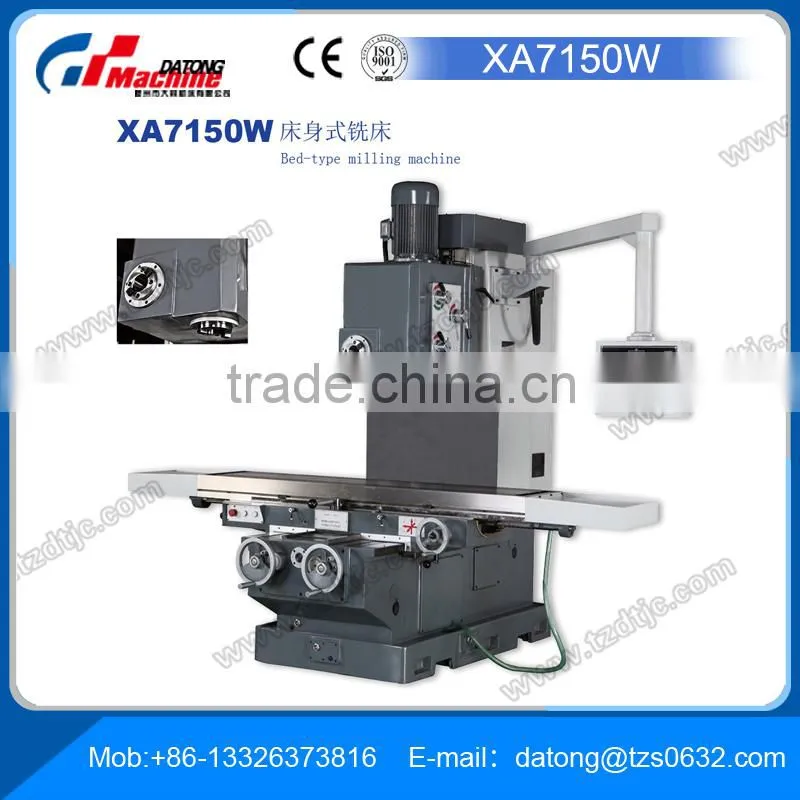

Bed- type Milling Machine XA7150W Metal Cutting Machine for sale
- 200 Set / Sets per Month
- qingdao.tianjin.shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Vertical Knee-type Milling XLK5032C Metal milling machine for sale
- Vertical Knee-type Milling XLK5032CL Metal milling machine for sale
- Vertical CNC Milling Machine XK5036 for sale
- Vertical CNC Milling Machine XK5036B-1 for sale
- Universal Drilling Milling Machine X6328C
- CNC Tool Milling Machine - WF 4.2 CNC
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | datong |
Model Number: | XA7150W | Type: | Vertical | CNC or Not: | Normal |
Voltage: | 380V | Power(W): | 7.5kw | Dimension(L*W*H): | 3300X2420X2340mm |
Weight: | 4500KG | Certification: | CE ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Features:
1.universal milling with two spindles
2.machine with automatic feed
3.drive type is gear drive
4.with control panel
Specifications:
NO | XA7150W | Parameter | ||
1 | Table size | 2000×400mm | ||
2 | Table travel | 1500*620mm | ||
3 | T-slot no/width/distance | 3/18/100mm | ||
4 | Spindle taper | Vertical | ISO50 | |
Horizontal | ||||
5 | Vertical travel of headstock | 40~720mm | ||
6 | Spindle speed | vertical | 18steps | 42-1290r.p.m |
Horizontal | ||||
7 | Distance from spindle axis to column surface | 602.5mm | ||
8 | Table feed | X/Y feed speed | 20-2000mm/min | |
X/Y rapid feed speed | 2500mm/min | |||
9 | Main motor | 7.5 KW | ||
10 | Mechanical feed motor | 2.9KW,18N/m | ||
11 | Coolant motor | 90W | ||
12 | Overall dimension L*W*H | 3300×2420×2340mm | ||
13 | Net weight | 4500kg | ||
14 | Max.load of table | 2000Kg |
Packaging & Shipping
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
