downspipe machine manufacture

FOB Price

USD $8,000 - $13,000 / Set

1 Set(Min.Order)

Supply Ability 25 Set / Sets per Month
Port Xin Gang port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Steel	Use	Other, Wall, Roof,door,wall,ceiling
Production Capacity	25m/min	Place of Origin	Hebei, China
Brand Name	XINGBO	Model Number	downspipe machine manufacture
Power(W)	5.5kw	Voltage	as client want
Dimension(LWH)	5.51.51.6	Weight	2.5tons
Certification	CE BV ISO	Warranty	365 days
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

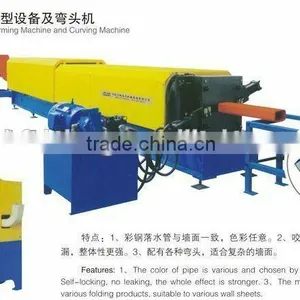

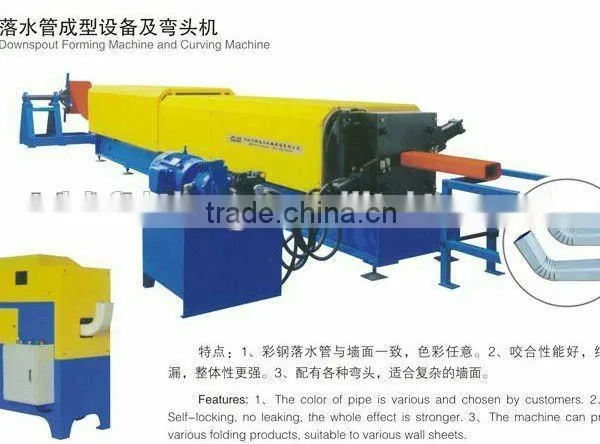

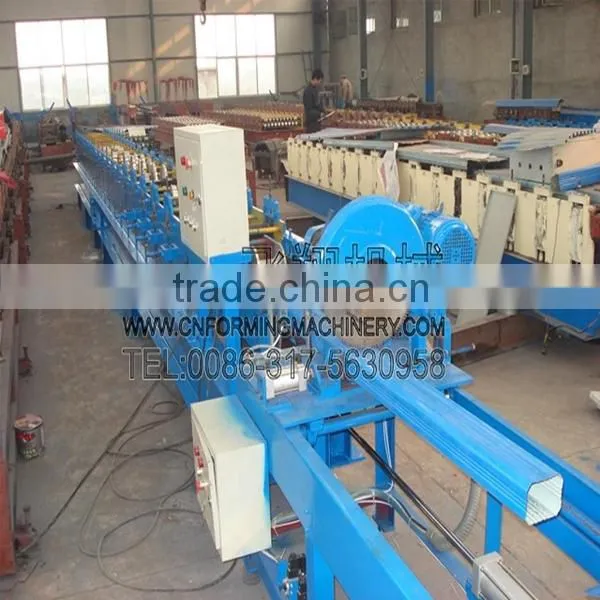

Downspipe machine manufacture

Company Information

Our factory:

Our credit:

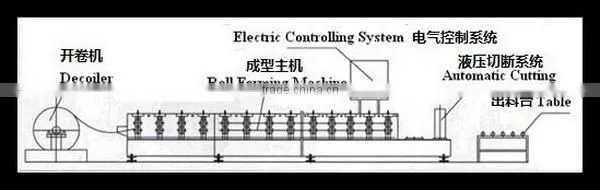

1.The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---punching machine---cutting---product to stand

2.Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

3.Technical parameters

1)Profile thickness:0.3--0.8mm

2)inner tight decoiler

il inner diameter:450mm--550mm

B.max width of coiling:1250mm

C.max weight of loading:5000kg

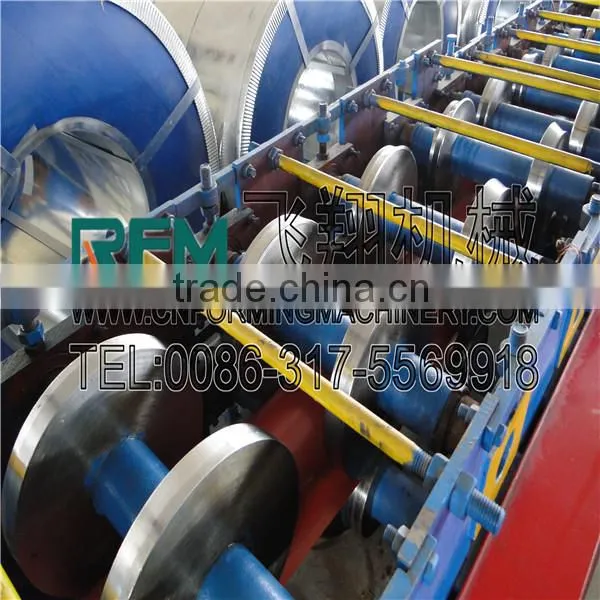

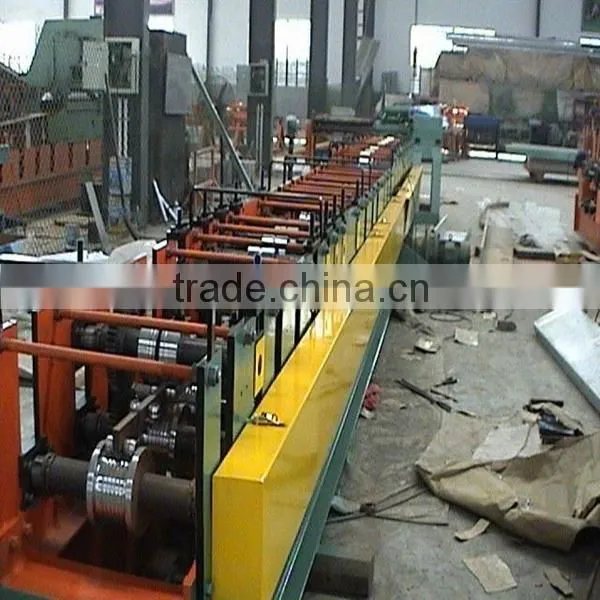

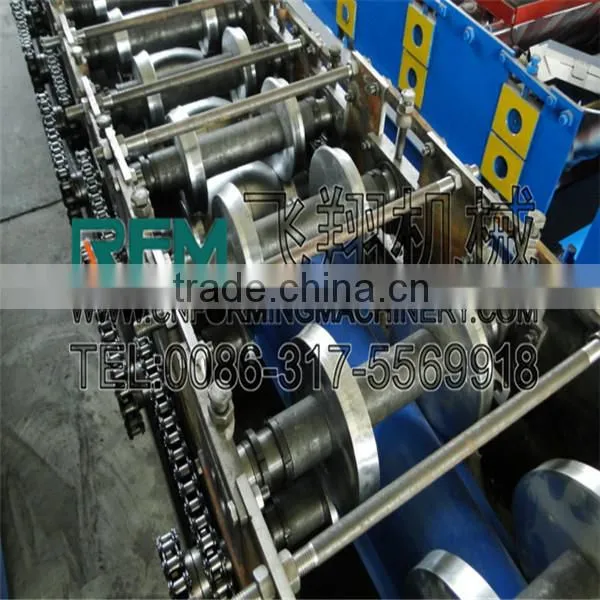

3)main forming machine

A.Shaft material:45# steel,bearing steel outer diameter 85mm

B.Main motor power:5.5kw

C.Forming speed:8--10m/min

D.Voltage:380v,50hz

E.Roller station:15 rows

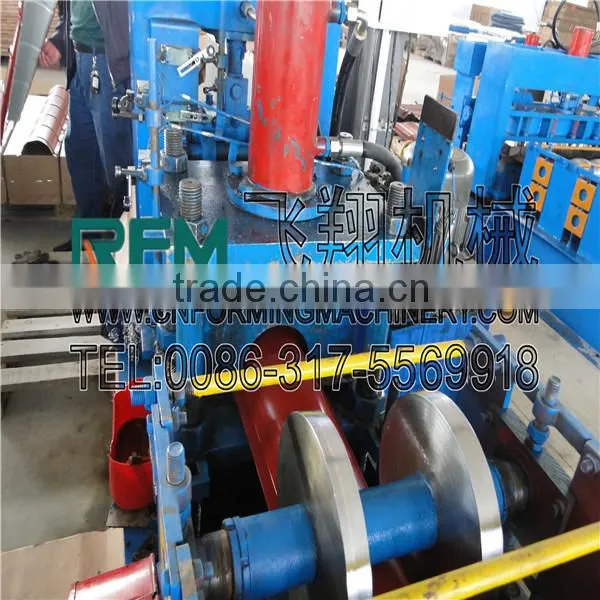

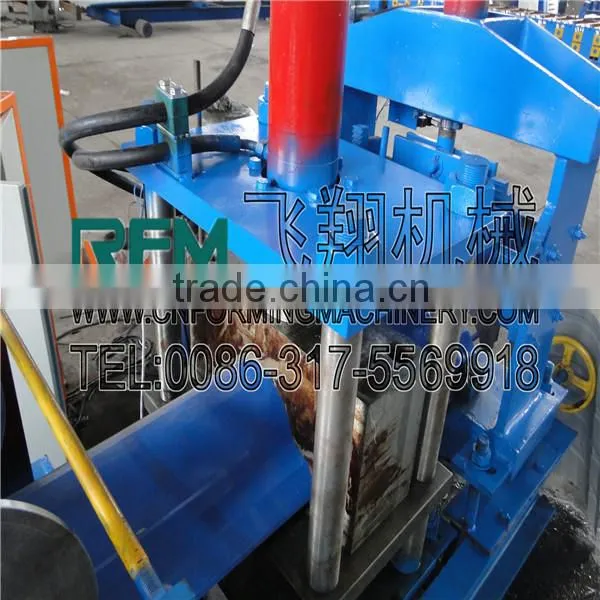

4)cutting system

A.hydraulic cutter

B.Blade and mould material:Cr12 steel with quenched treated 60-62°

C.Cutting system advanced hydraulic drive,after automatic cutting after forming.no

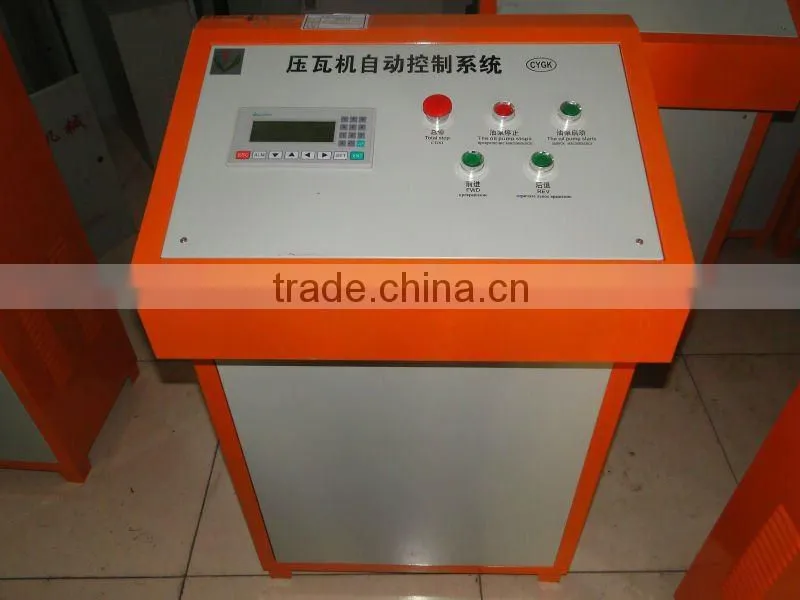

5)control system

A.PLC: taida form Taiwan

B.Coder:from south korea

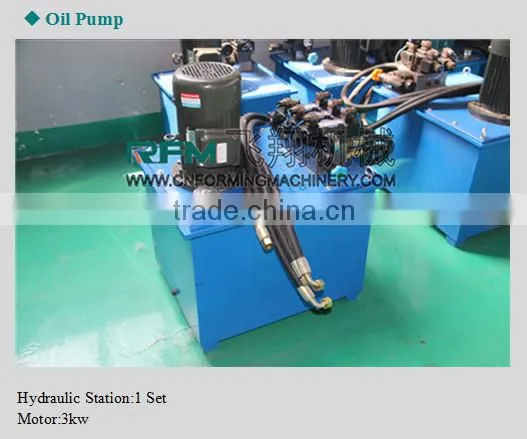

6)hydraulic system

A.advanced hydraulic system from taiwan

B.Power:3kw

MORE INFORMATION ,PLEASE CLICK HERE

Our Services

1. we can produce the special machine,send your drawing to us,we can design for you.

2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.

4. engineers available to service machinery overseas.

5. if you come to visit our factory,we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, special design is available!
