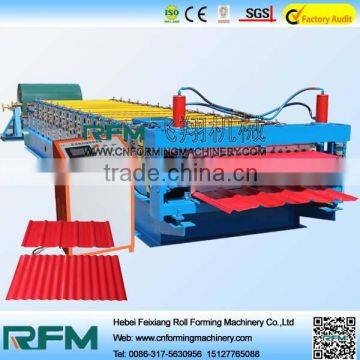

FX steel barrel corrugated tiles metal forming making machine

  FX steel barrel corrugated tiles metal forming making machine

1,profile drawings

Processing material: colored steel plate, galvanized plate, or aluminium plate

Material thickness:  0.3---0.8mm

Material hardness: 550 mpa---350 mpa

Material width:  1220mm

Formed width: 1000mm

Wavelength: 250 mm

Step height: 10mm

Step length:150mm---380mm(adjustable)

Forming speed: 12 m/min

Working speed :12m/min

press speed:2-4m/min

2, The chart of process flow:

Decoiling--active feeding---forming---measuring lengh---cutting---product to stand

3,Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

4, inner tight decoiler

il inner diameter:450mm--550mm

B.max width of coiling:1250mm

C.max weight of loading:5000kg

5,Input material:

Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

6,forming system:

Usage: In order to keep the product shape and precision, adopts welded sheet structure,motor reducer drive, chain transmission(the first and the last roller,the down roller should be attached with the upper one with the chain drive.), roller surfaces polishing, hard plating , heat treatment and galvanizational treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

One counter gauges length, pulses, and decides length.

Omron encoder for length measurement.

A.Shaft material:45# steel,bearing steel outer diameter 85mm

B.Main motor power:5.5kw

C.Forming speed:8--10m/min

D.Voltage:380v,50hz

E.Roller station:11

10,hydraulic station:

10.1 It is controlled by gear wheel oil pump. Afer filling the hydraulic oil into the

hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

10.2 Power:3kw

10.3 Hydraulic oil: 40#

10.4 Components: The system includes a set of hydraulic tank , a set of hydraulic oil

pump, two hydraulic pipes.and two sets of electromagnetism valves.

11,control system:

Feature:

1.Adopted PLC , transducer, touch panel from Mitsubishi Japan to ensure high speed

with stability, precision and lifetime.

2.Other electric element are Schneider

3.Equipped with movable switch , air break, radiator, transformer & electric leakage

protector for operation convenience and safety.

12,output table

13,certfication:

14,delivery:

 15,company apprance:

16 contact:
