Home > Products > For optical cable > PE film coated aluminum adhesive tape

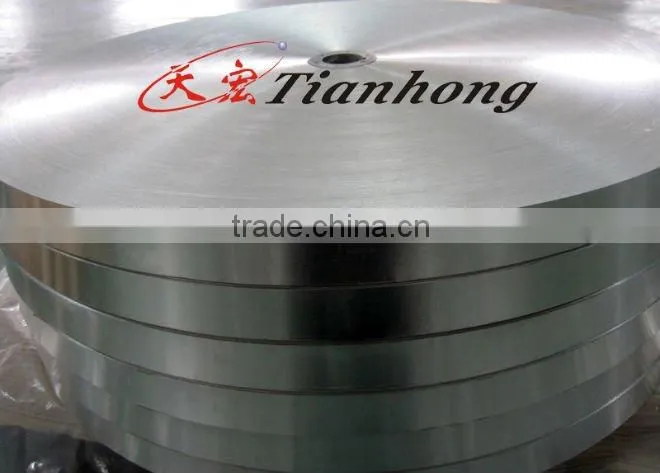

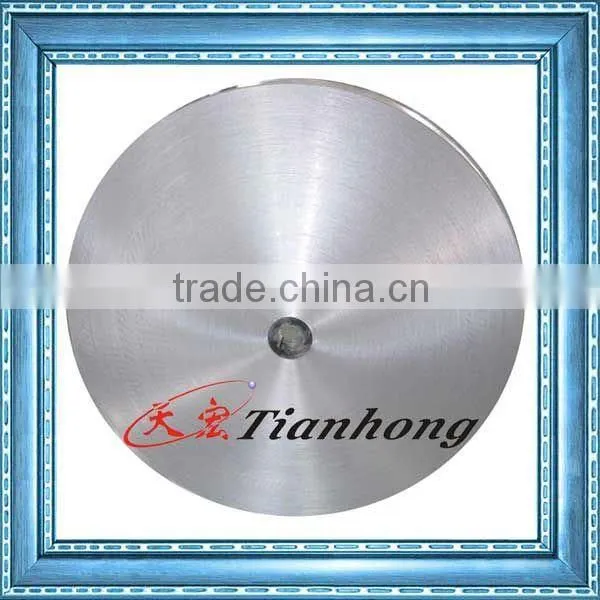

PE film coated aluminum adhesive tape
- 200 Ton / Tons per Month
- Shanghai/Ningbo
- T/T
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Tianhong | Model Number: | Customer requirements |
| Type: | Insulation Tape | Material: | Composite Polymer | Application: | Other, Customer requirements |
| Rated Voltage: | min 2 kv | Tensile Strength: | ≥50 |
Product Description
Specifications
Aluminium tape widely used in electronics, electrical, telecommunication,etc.
Single side test report
| No. | Name | Width (mm) | Thickness (mm) | Tension (N) | Tensile atrength (MPa) | Elongation at break (%) |
| 1 | PE+AL | 33.000 | 0.2 | 411.81 | 65.829 | 17.28 |
Double side test report
| No. | Name | Width (mm) | Thickness (mm) | Tension (N) | Tensile strength (MPa) | Elongation at break (%) |
| 1 | PE+AL+PE | 28.000 | 0.252 | 474.64 | 67.268 | 21.088 |
Specifications:
Thickness, length and width can according to customer requorements
Name | Single side PE coated Aluminum Tape |
Thickness | 150µ-600µ |
Width | 17mm-600mm |
ID(inner diameter) | 53.5mm / 76mm / 102mm / 150mm 2.1in / 3.0in / 4.0in / 5.9in |
ID material | Plastic or Metal |
OD(outer diameter) | 500-1000mm |
Color | Silver/Green |
Name | Double side PE coated Aluminum Tape |
Thickness | 200µ-600µ |
Width | 17mm-600mm |
ID(inner diameter) | 53.5mm / 76mm / 102mm / 150mm 2.1in / 3.0in / 4.0in / 5.9in |
ID material | Plastic or Metal |
OD(outer diameter) | 500-1000mm |
Color | Silver/Green |
