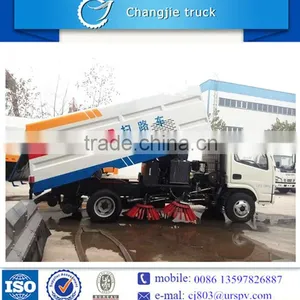

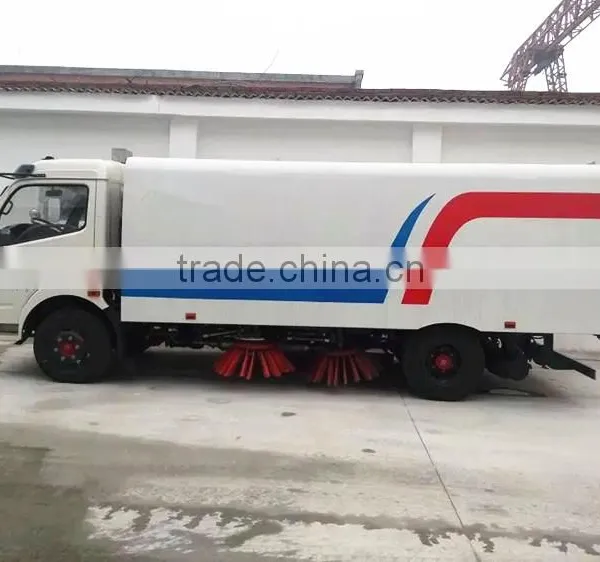

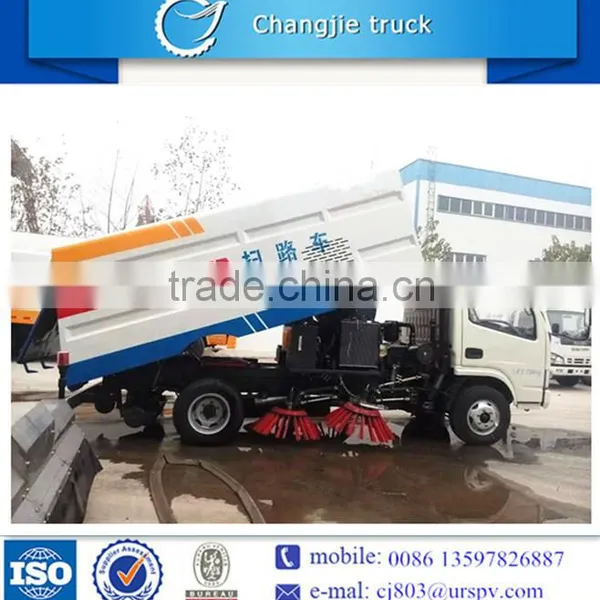

High performance Dongfeng 4x2 4cbm street cleaning truck

Name: High performance Dongfeng 4x2 4cbm street cleaning truck
Brand: Dongfeng
Availability: InStock

FOB Price

USD $20,000 - $25,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Hubei, China
Brand Name	Dongfeng	Model Number	DFA1080SJ12D3
Dimension(LWH)	670022902500mm	Weight	8275
Certification	CCC ISO SGS BV	Warranty	1 Year
After-sales Service Provided	Overseas third-party support available

Product Description

High performance Dongfeng 4x2 4cbm street cleaning truck

Our company is a professional ROAD SWEEPER TRUCK manufacturer for 10 years

Our trucks with 3C,ISO,SGS,BV approved

Chassis supply:DONGFENG,JAC,JMC,FOTON

Any questions,contact me without hesitation on 135-9782-6887

Product features:

1.Stainless steel garbage tank,water tank

2.Maintenance free blower with high quality,and maintenance free automatic clutch

3.Hydraulic oil pump imported from Italy, long service life, stable and reliable, low failure rate

4.Hydraulic valve imported form Germany

5.The hydraulic lines using the German standard technical seal structure, good shock resistant

performance, high sealing reliability,can realize no leakage seal effect

6.The key electronic components using French Schneider technique

Product Description

Product Name	Dongfeng street cleaning truck
Product Model	Dongfeng DLK
Main parameters	Overall size(LWH)	6700×2290×2500mm
	Gross weight	8275kgs
	Rated capacity	2380kgs
	Curb weight	5700kgs
	Approaching/Departure Angle	24/16(°)
	Front/Rear suspension	1210/1690mm
	Axle loading	3310/4965
	Max.speed	99km/h
Chassis	Chassis Brand	Dongfeng
	Chassis model	DFA1080SJ12D3
	Drive type	4X2, LHD/RHD
	Fuel Type	Diesel
	Tire Specification	7.50-16 14PR,7.50R16 14PR 8.25-16 12PR,8.25R16 12PR
	Tire No.	6
	Wheelbase	3800mm
	Alex No.	2
	Leaf Spring No.	8/10+7,11/9+7
	Front trend	1770,1831,1740,1845mm
	Rear trend	1586,1640,1610,1680mm
	Passengers in cab	3
Engine	Manufacturer	Guangxi Yuchai Machinery
	Model	YC4E140-42
	Horse Power	140HP
	Displacement/Power	4260ml/103kw
	Emission standard	Euro 4
Item		Parameters
Auxiliary engine model		JX493G
Auxiliary engine power		57kw/77.5hp
Maximum speed		≥95km/h
Cleaning width		≥2.8-3 m
Water tank volume		2m3
Garbage box volume		5m3
Operating speed		3~15km/h
Maximum operation ability		4500m2/h
Maximum suction size		100mm
Cleaning efficiency		≥99%

Certifications

Our Services

1. After-sale service:

- One year warranty

- Fast respond to any problems.

- Provision with relevant technical support.

- Available spare parts after ordering.

2. Supply service:

- OEM ability. We can produce according to your requirements,the size, color, materials, logo etc all optional

for you.

- Start manufacturing as soon a your order confirmed.

- Inventory products can be delivered immediately.

3. Contact

- We offer 24-hour hot line service: 0086-13597826887.

- Please feel free to contact me if you have any questions, contact information is showed afterwards
