Wire-free Immobilizer RF Relays for Corolla

Specifications

Product features:

Directly replace the relay of fuel line of the automobile, and wire free. Applicable for more than 300 models from Europe, America, Japan and Korea etc.

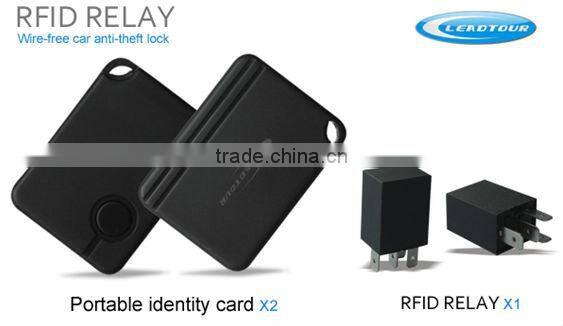

The anti-theft lock is comprised of RF relay and portable identity card

Installation:

Wire-free direct insertion installation:

about the controlled automobile, open the relay box, and find the relay with the same size of this RF relay and is the relay of the control fuel pump. The relay can be found as follows: find the relay with the same size of this RF relay, remove the relay, start the automobile (at the origin place, neutral), if the automobile is flameout several minutes later, insert the relay and the restarting the automobile is normal. If the relay is the same with one of the four RF relays described in the product list, the relay can be replaced by this RE relay.

The removed relay shall be the same with pin 85 and pin 86 (pin 1 and pin 2) of this RF relay, which are pins of the relay coil

This RF relay can replace ON relay and other electromagnetism relay, which are installed with professional's guide.

Use:

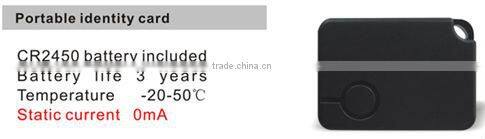

1. The portable identity card can be placed into bag, pocket or key chain. For starting the automobile, shake the card.

2. After the automobile is started, if effective portable identity card is not detected, the automobile is flameout 12 seconds later. If the effective portable identity card is not detected in consecutive 3 times, the automobile is flameout after restarting and the automobile enters the anti-theft self-locking status. Only the portable identity card and starting the automobile and unlock in 5 seconds, then start the automobile and enter the normal status. (After flameout for some vehicles, the electromagnetism relay will work for further 3 minutes. If the RF relay is used to replace the electromagnetism control, within 3 minutes after flameout, the automobile can be restarted without the identity card).

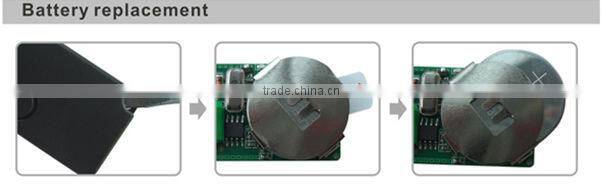

Battery replacement:

For the first use, remove the insulation sheet of the battery; the side marked with “+” of the battery is upwards;

after the battery is communicated, short-time operation indication is required.
