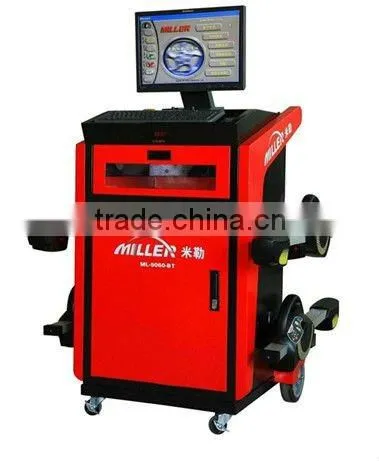

Bluetooth Auto Wheel Alignment Machine

Specifications

Wheel Alignment Machine:
1.Transmission: Bluetooth.
2.Printer : HP-Ink-jet printer with Color.
3.8 beam 50 degree wide-angle

  Bluetooth Auto Wheel Alignment Machine :

Packing: Specila exporting wooden case 1420*850*1450mm 14 pcs for 20' container

Specification:

1,Internal dual core processor (DSP & CPLD). Strong-light proof.

2,Enhanced BLUETOOTH2.0 wireless communication system. The most efficient frequency can be automatically selected without interference.

3,8 beam 50 degree wide-angle CCD measured wider, faster treatment.

4,Comprehensive special measurement capabilities to measure Tread difference, wheelbase difference, can be directly carried out ultra-low chassis, the A6/B5 cars toe-in curve.

5,Intelligent power management technology. Sensor alarm and automatic power-off protection function, which could greatly extend the battery life

6,Free exchange of a single sensor without calibration

7,Sensor accuracy inaccurate automatic alarm function.

8,Database network upgrade. Users can add custom data to the database, and the upgrade will not change the original customer data .

 9,With other basic conventional features (e-level, multi-language options, adjust animation, etc.)

Five Advantages

Greater range, higher accuracy;

Against light and radio wave interference

Parameters are more comprehensive, and functions are more powerful



Upgrade more easy, convenient and timely



System more stable and easier maintenance







1. Power Supply Voltage: 110V/220V

2. Rim diameter: 13"-21"

3. Toe: +15°~-15°(±1')

4. Camber: +10°~-10°(±1')

5. Caster: +20°~-20°(±3')

6. Kingpin inclinable: +20°~-20°(±3')

7. Set back: +10°~-10°(±2')

8. Thrust angle: +10°~-10°(±1')

9. Net Weight: 180Kg



10. The Mainframe and printer:

Power: 0.5KW

Electric voltage: 110V/220V

Computer: Lenovo

CPU: 2.5G  Memory: 1GB Hard disk: 160G

DVD Driver: Yes

Keyboard and Mouse: 1set

Monitor: Lenovo 19" LCD

Printer : HP-Ink-jet printer with Color

Transmission: Bluetooth



 Optional Big cabinet (All models are applicable):
