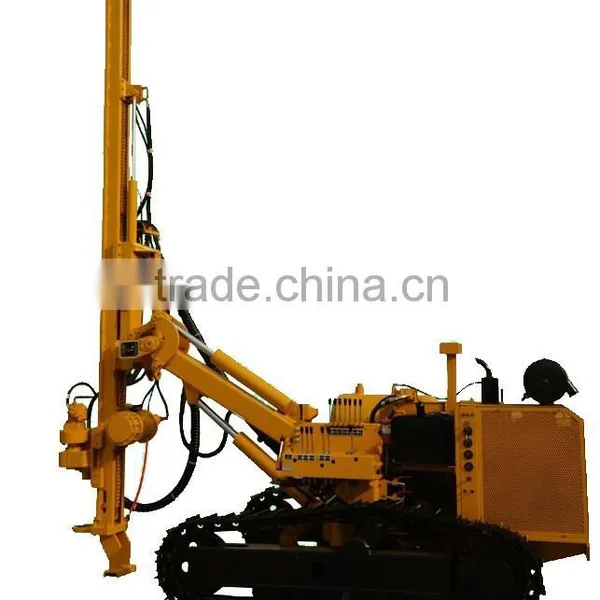

Integrated Hydraulic DTH Rock Drilling Rig for Mining

Integrated Hydraulic DTH Rock Drilling Rig for Mining

150m Truck mounted water well drilling rig

The integral hydraulic down-the-hole drill is widely used for blast hole drilling in open-air projects, such as metallurgy, mins, construction materials, railway, hydropower constructions, national defense constructions and earthworks. As one of most advanced integral hydraulic down-the-hole drill in domestic market, it is equipped with an efficient high pressure down-the-hole drilling system to facilitate the blast hole drilling with high precision and efficiency. Internationalized sourcing, optimizing design of computer, power matching, development and application of load bearing system help to realize a full power matching of the power system from power to pump, and then to load bearing, which enables to reduce the energy consumption for the machine and ensure a best performance and a high reliability can be achieved.

High pressure motor drive

1,Enhance promote the selection of high-pressure column piston motor drive, the bipolar planetary

reducer drive double row bush roller chain drill push enhance, the maximum pull of 3800 kg, than similar

products (the AVT351 series 1300 kg)increased 192%, greatly reducing the frequency of sticking. Double

row chain prone to breaking adequately ensure the safety of personnel operating Arbors. More conducive

to large-aperture, deep hole drilling job.

2,Rotation using a planetary gear plus a the straight gear reducer program, central supply. Reducer long

life, small amount of maintenance under different drilling diameter size, the nature of the rock, to replace

different displacement motor, so that the drill rotation speed, torque and drill bit wear rationalization, to

achieve the lowest cost of drilling.

3.Walking mode of operation can be optional manual, Wired control or manually, the wireless remote

control, and more suitable for narrow roads, dangerous sections of the work, greatly to ensure the safety

of the operating personnel.

4.Optional highly efficient dry dust, to ensure that environmental requirements are met, and to fully protect the physical

health of operatives and personnel of the operation area.

5,Cold drawn square steel sliding rails and nylon skateboard carriage rigid rails wearable.

6,The hydraulic system is equipped with a double variable piston pump excavator used to pay additional

pump automatically adjust fast with a large driving force in the constant power to protect the large drill

lifting force and 35 degrees traveling gradeability.

7,More 8T excavator standard chassis structure and parts, reliable performance, long life, two-speed

travel. The drive motor and gearbox using imported pieces.

8,The engine is the largest engine manufacturers Yuchai most mature engineering models, performance,

quality and reliability. The Warranty Services network and improve service outlets throughout the country

in various cities and counties. Engine and oil pump connected imported from Germany flywheel output

coupling, superior performance.

9.Engine with two-stage air filtration system, the first filter for Steyr desert, the second for the import of

German Man filter to ensure clean air intake.

10.Key hydraulic components using imported pieces, can fully ensure the service life and reliable

performance.

11.Standard punch aperture 150mm, up to 200mm.
