100T Vertical Rubber Injection Forming Machine

100T Vertical Rubber Injection Forming Machine

Please contact

Name: Spring
Mobile and WhatsApp: +86 13567193083
Wechat: 13567193083

Technical Parameter

Model: S-Z-100-4RT-1-PCD

Type: four column, single station

Clamping force: 100 ton

Piston diameter: 250mm

Feeder cylinder diameter: 80mm

Injection capacity: 1400cc

Injection pressure: 110mpa

Piston stroke: 300mm

Injection stroke: 435mm

Space of heating plates: 180-430mm

Size of upper heating plate :500x500mm

Quantity of heating plate: upper and lower

Type of mold opening: 4RT

Heating method: electric heating tube

Main Configuration

PLC: Xin Je
Touch panel: TouchWin
Direction valve: Dan Xin

Proportional: Northman
Heating control system: Schneider

Machine Feature

1. The weight of our machine is 5 ton, 1 ton heavier than other supplier's.

2. The diameter of our column is 1cm bigger than other supplier's.

Applicable Products

auto parts, o ring, seal ring, key, bottle stopper, rubber packing, medical rubber, etc.

Matched Machine

We can also provide molds, internal mixer, open mixing mill, rubber strip cutting machine, de-flashing machine, rubber preforming machine, rubber separator,  rubber slitting machine and so on.

So we can provide rubber solution for you.

We attended ChinaPlas2016 in Shanghai from 25th, Apr to 28th, Apr.

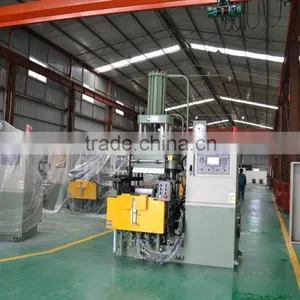

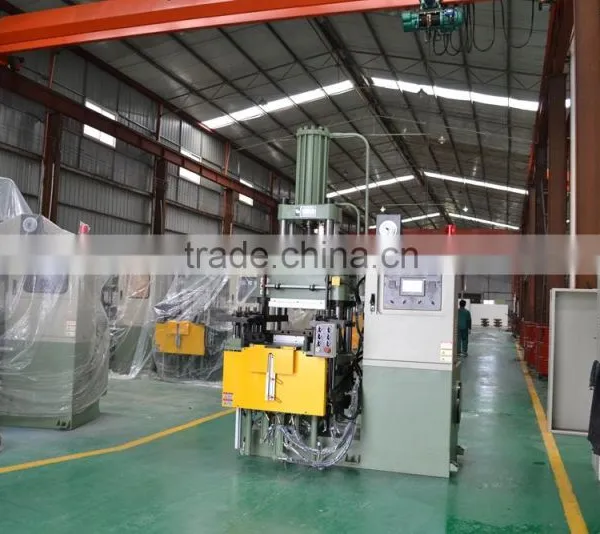

Whole machine picture

Machine detailed picture

injection parts

touch screen

direction valve

proportional valve

electric control box

PLC

heating control

Container Loading
