oilless drive belts chemical air dry Compressor 100cfm

Name: oilless drive belts chemical air dry Compressor 100cfm
Brand: TUOWEI
Availability: InStock

FOB Price

USD $500 - $2,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port FUZHOU
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Type:	Screw	Configuration:	Stationary
Power Source:	AC Power	Lubrication Style:	Oil-free	Mute:	No
Place of Origin:	Fujian, China	Brand Name:	TUOWEI	Model Number:	SGM18
Voltage:	380v/50Hz/3Ph	Dimension(LWH):	190010001635mm	Weight:	970kg
Certification:	CE,TUV,ISO	Warranty:	whole compressor for 1year	After-sales Service Provided:	Overseas third-party support available

Product Description

oilless drive belts chemical air dry Compressor 100cfm

stationary

Product Description

1. Air end: Inheriting the full-stainless steel oil-free air end of French.

2. Motor: With the high-quality motor of well-known brand, IP code of IP 54, Level F of insulation level, grease lubrication, SKF bearing, high efficiency, the special design of the machine can be conducted according to the requirements of the users.

3. Vapor separator: The delicate design of the full stainless steel vapor separating tank makes the vapor completely separate inside.

4. Water screw controller: The advanced controlling and monitoring system can display all operation situation of the whole unit, together with RS485 interface fulfilling remote control.

5. Air inlet valve: Patent air inlet valve 100% reliability.

Detailed Images

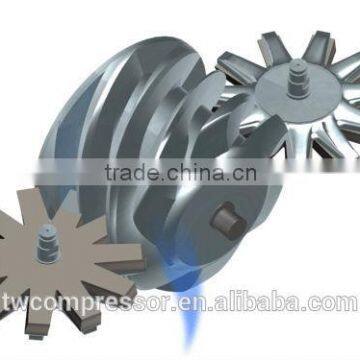

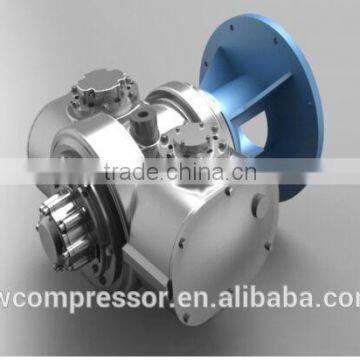

Air end Inside sketch of air end

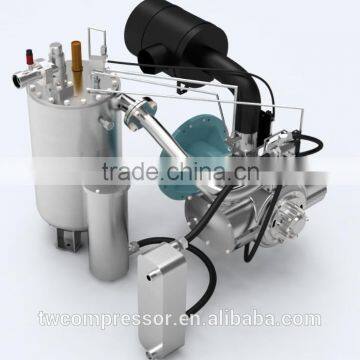

Internal structure of oil-free screw air compressor

Internal circulation graph of oil-free water lubrication

Diagram for the configuration of the outer system of the water cooling series

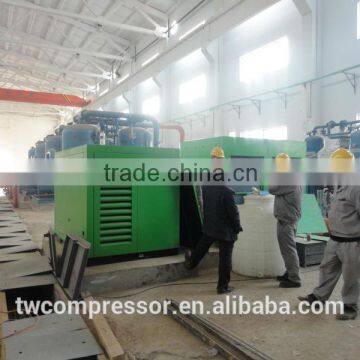

Practical applications

SGM Oil-free Screw Air Compressor Technical Specifications:

Model	Pressure	Capacity	Power	Noise	Weight	Inlet and outlet pipe diameter	Quantity of cooling water	Dimensions	Air outlet
	Mpa	M3/min	Kw	dB(A)	Kg	of cooling water	Water entering 32°C	mm
							T/h
SGM08	0.8	1.15	7.5	58	500	3/4"	2	1300×800×1300	3/4"
	1	1.02
SGM11	0.8	1.55	11	58	540	3/4"	2.5	1300×800×1300	3/4"
	1	1.32
	1.25	1.02
SGM15	0.8	2.4	15	63	650	1"	3.5	1600×910×1350	1"
	1	2.12
	1.25	1.61
SGM18	0.8	3.1	18.5	65	840	1"	4	1600×910×1350	1"
	1	2.62
	1.25	2.13
SGM22	0.8	3.5	22	65	870	1"	5	1600×910×1350	1"
	1	3.13
	1.25	2.61
SGM30	0.8	5	30	66	980	1 1/4"	7	1950×1050×1432	1 1/2"
	1	4.2
	1.25	3.18
SGM37	0.8	6.1	37	67	1000	1 1/4"	9	1950×1050×1432	1 1/2"
	1	5.22
	1.25	4.81
SGM45	0.8	7.3	45	68	1060	1 1/2"	10	2150×1300×1590	2"
	1	6.13
	1.25	5.65
SGM55	0.8	9.6	55	70	1250	1 1/2"	12	2150×1300×1590	2"
	1	8.6
	1.25	7.42
SGM75	0.8	12.5	75	73	1480	1 1/2"	18	2150×1300×1590	2"
	1	11.42
	1.25	9.83
SGM90	0.8	16.3	90	73	2030	2"	20	2550×1400×1605	2 1/2"
	1	14.52
	1.25	12.3
SGM110	0.8	19.4	110	78	2450	2"	24	2550×1400×1605	2 1/2"
	1	16.9
	1.25	15.1
SGM132	0.8	22.21	132	78	2850	2"	30	2550×1400×1605	2 1/2"
	1	20.38
	1.25	18.29
SGM160	0.8	28.85	160	78	3750	2 1/2"	35	3300×2200×2000	3"
	1	24.52
	1.25	22.17
SGM200	0.8	36.63	200	78	4100	3"	43	3300×2200×2000	4"
	1	32.7
	1.25	27.72
SGM250	0.8	42.88	250	78	4750	3"	53	3300×2200×2000	4"
	1	39
	1.25	34.64
SGM320	0.8	59.1	320	80	6350	4"	60	3600×2800×2000	5"
	1	53.5
	1.25	48.25

Warranty

Five years for air end,one year for whole machine.
