Grain Hammer Mill Run by Tractor

Grain Hammer Mill Run by Tractor photo-1
Grain Hammer Mill Run by Tractor photo-2
Grain Hammer Mill Run by Tractor photo-3
Grain Hammer Mill Run by Tractor photo-4
Grain Hammer Mill Run by Tractor photo-5
Grain Hammer Mill Run by Tractor photo-6
US$ 1,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Cheng Li or CL
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Cheng Li or CL
Model Number 9FZ
Type Feed Pellet Machine
Voltage 380v
Power(W) below 26 kw.h/t
Certification ISO9001:2008
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

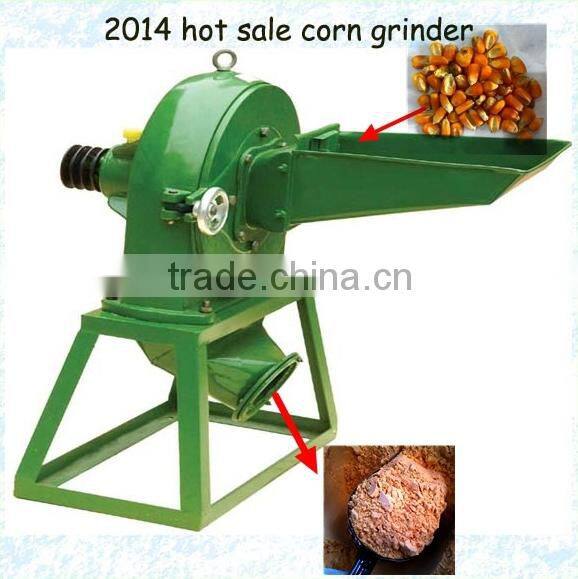

2014Hot sale 9FZ series fodder grinder/ round crusher grinder hammer mill



Working principle

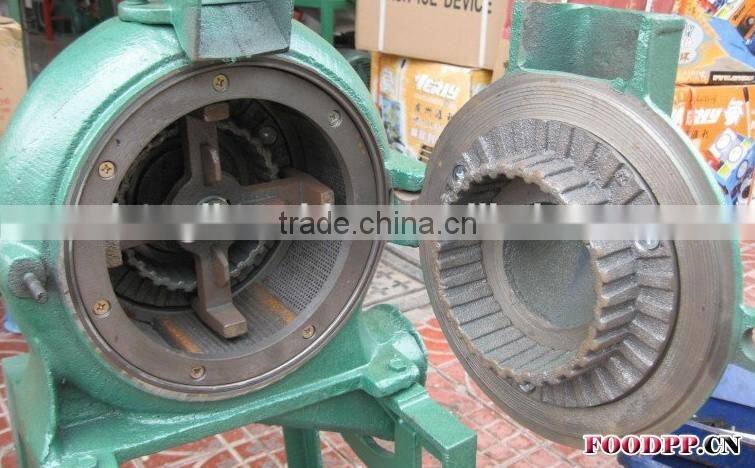

The main part of the grinder is the rotor; the fixed gear is with the function of crushing. When the machine starts, need people to put the raw materials into the machine, after feeding into the crushing room, with the rotation of the rotor, the materials is crushed in the process of impacting with the rotor. Under the function of the self weight and airflow, the crushed materials are discharged.

Introduction:

1) The 9FZ series tooth claw type crusher can crush and grind grains like rice, wheat, corn, sorgarm, beans, sweet potato, potato, potato vine and other massive plants and fiber feeds. it is very helpful for farmer's family to process food for themselves or process feed for feeding livestock and poultry, As it's widespread usage, we also call it a animal feed grain crusher or small crusher for home use.

2) Small size, simple structure, easily operating, with high efficiency.

3) It not only can be driven by the electrical motor, also can be driven by diesel engine.

Technical parameters:

Model

Motor(kw)

Weight(kg)

Dimension(mm)

Capacity(kg/h)

9FZ-160

3kw

25

350*700*500

50-100

9FZ-200

3kw

35

400*550*550

100-150

9FZ-280

4 kw

45

550*550*400

150-250

9FZ-300

4 kw

50

550*580*400

200-300

9FZ-300

5.5kw

65

850*550*1050

300-500

9FZ-320

7.5kw

110

950*650*1050

500-1000

9FZ-360

11kw

125

1050*750*1150

1000-2000

9FZ-400

18.5kw

155

1250*750*1200

1500-3000

9FZ-450

22kw

195

1350*850*1350

2000-5000

 grain hammer mill run by tractorgrain hammer mill run by tractorgrain hammer mill run by tractorgrain hammer mill run by tractor
