mini bottle for carbonated soft drinks/beer filling machinery
- 10 Set / Sets per Month
- shanghai
- T/T
- soft drink manufacturing equipment/beer making machine price
- alcohol beer drinks/3 in 1 beer drink machine
- automatic filling machine/automatic packing machine/beer production plant
- beverage bottling plant/beer bottling machine/automatic machine
- carbonated beverage machine/beer sealing machine
- cheap beer drink machine price/black glass bottle beer
Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Other |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220v/380v/415v/440v | Power: | 5-15KW, By capacity | Place of Origin: | Jiangsu, China |
Brand Name: | kingwan | Model Number: | DXGF | Dimension(L*W*H): | 2200X2100X2200MM |
Weight: | 2000-5000kg | Certification: | CE SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden
Product Description

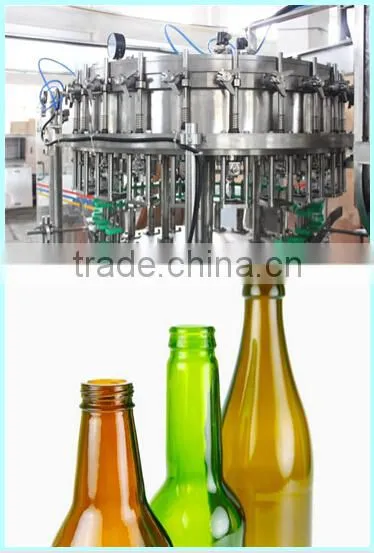

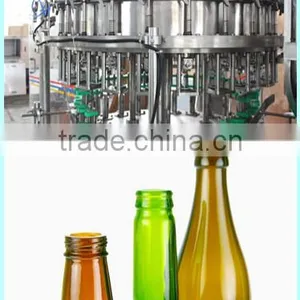

mini bottle for carbonated soft drinks/beer filling machinery
1.Rinsing machine
-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
2. Filling machine
-The starwheels drive the bottles always by the neck through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
- The filling valves are fully made of stainless steel with food grade, sterilization-resisting plastic gaskets. The valves are secured to the bowl and allow easy assembly and disassembly.
3. Capping machine
-Rotative capping turrent, suitable to the application of screw plastic caps on PET /glass bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam .
Product display
Product Parameters
Model | DCGF 18186 | DCGF 24248 | DCGF 323212 | DCGF 404015 | DCGF 505018 | DCGF 606020 |
Head of washing, filling, sealing | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-18 | 60-60-20 |
Production capacity (bottle/hour) | 3000-4000 | 5000-6000 | 7000-8000 | 9000-10000 | 11000-12000 | 15000 |
Suitable bottle diameter(mm) | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml |
Filling precision | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm |
Motor power | 3.84kw | 4.1kw | 5.6kw | 7.5kw | 9kw | 11kw |
Filling pressure | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
Overall dimension (mm) | 2400×1900 ×2300 | 2800×2100 ×2300 | 4200×2300 ×2300 | 5000×2800 ×2400 | 5900×3100 ×2400 | 6500×3500 ×2400 |
Weight(Kg) | 3000 | 4000 | 5000 | 7500 | 9000 | 11000 |
Company information
Contact information
Website:
Tel:008613962267321
Alibaba TradeManager :cn1514722664vksi
Skype:Kingwan8881
Whatsapp:008613962267321
Welcome To Our Factory At Any Time!
beer filling machine beer filling machine beer filling machine
beer filling machine beer filling machine
beer filling machine beer filling machine
beer filling machine beer filling machine
beer filling machine beer filling machine
Company Profile
Jiangsu kingwan Machinery Co., Ltd. is committed to the development of beverages, plastics machinery, hardware, electrical and mechanical equipment and other industries, specializing in concentrated beverage, plastics machinery and hardware, electrical and mechanical equipment research, development, manufacturing and sales, with the company's strong technical force and economic strength, and constantly develop new products with international advanced level of technology.
The company is headquartered in Zhangjiagang, service network throughout the country. The company implemented network management, relying on advanced computer-aided design system and computer management system, standardized operation, in the shortest possible time to provide users with high-quality products.
Companies in the technology leadership, first, customer-oriented principle to provide customers with satisfactory services.
jiangsu kingwan Machinery Co., Ltd., have Zhangjiagang City wanjin Machinery Co., Ltd. specializing in the production of beverage equipment research, production, manufacture, Zhangjiagang City Plastic Machinery Co., specialized in plastic machinery research, development, manufacture, also has engaged in Research hardware, mechanical and electrical equipment production and manufacturing.
Since its inception, proactive, innovative, with a good reputation, unique management style and strong marketing capabilities, has made one after another impressive performance. Over the years, rapid development of robust jiangsu kingWan Machinery Co., Ltd., inseparable from the industry's very best partners.
