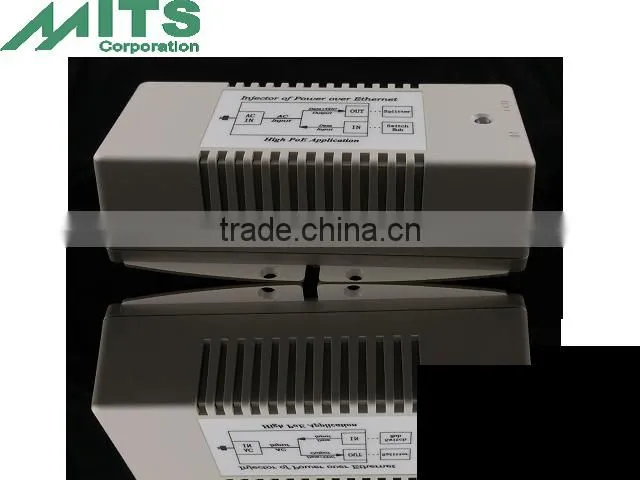

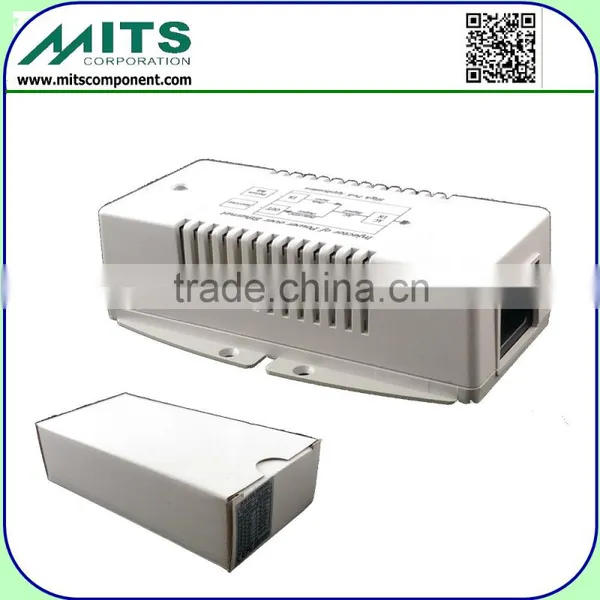

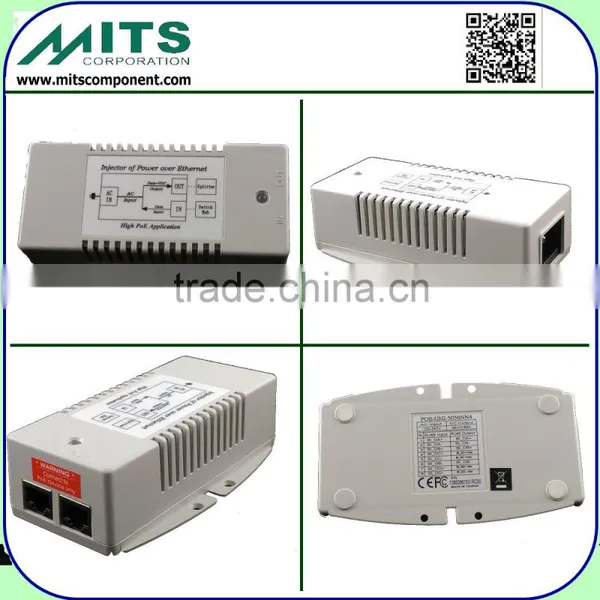

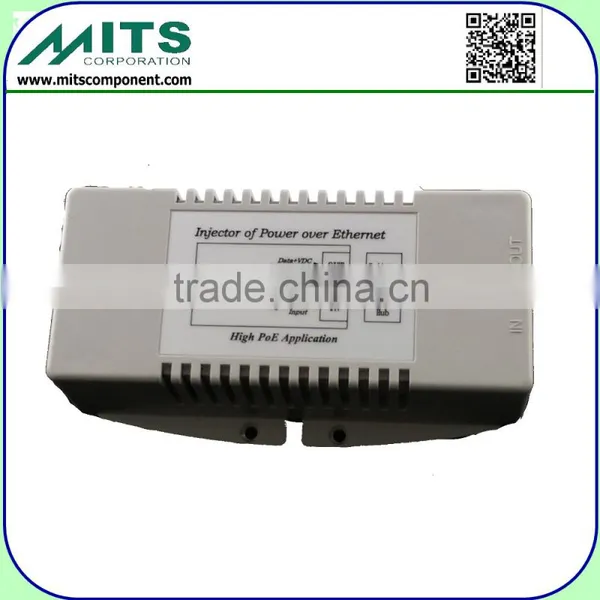

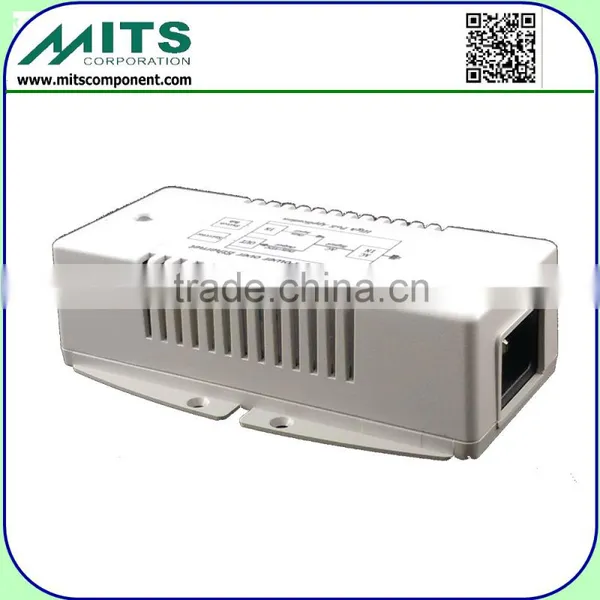

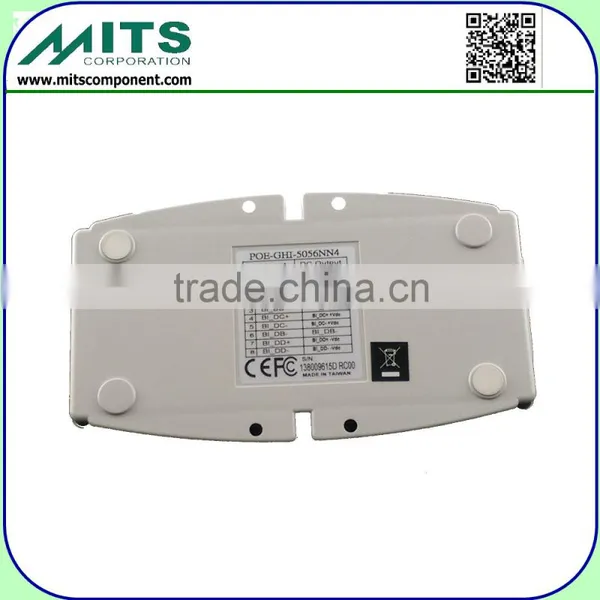

35W/56V Gigabit 802.3at PoE Injector
- 5000 Piece / Pieces per Month
- TPE
-
18W/18V 1 port DC input PoE Injector for IP Phone, IP Cam, AP, Security & Networking Devices
-
24W/48V 1 port DC input PoE Injector for IP Phone, IP Cam, AP, Security & Networking Devices
-
17W/48V 1 port DC input PoE Injector for IP Phone, IP Cam, AP, Security & Networking Devices
-
36W/18V Gigabit High PoE Injector
-
48W/24V Gigabit High PoE Injector
-
50W/56V Gigabit High PoE Injector
Product Details
| Place of Origin: | Taiwan | Brand Name: | MITS | Model Number: | POE-GTI-3556ND4 |
Product Description
Part number: POE-GTI-3556ND4
Description: 35W/56V output, with IEEE 802.3at detection, power feeding by 4 pins

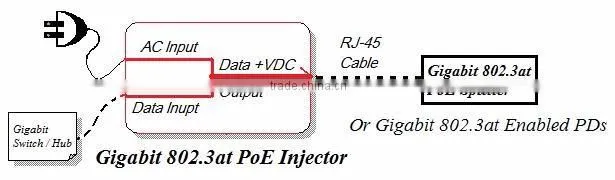

Application
- IEEE 802.3at enabled PDs
- Network terminals which require Gigabit transmission and 802.3at PoE.
RJ-45 Connector and Pin-Out
| RJ-45 Input (Data Only) | RJ-45 Output (Data & Power )
| ||
Pin | Symbol | Description | Symbol | Description |
1 | Rx+ | Data Receive | Rx+ | Data Receive |
2 | Rx- | Data Receive | Rx- | Data Receive |
3 | Tx+ | Data Transmit | Tx+ | Data Transmit |
4 | Data | Data | +Vdc | Power(+)+Data |
5 | Data | Data | +Vdc | Power(+)+Data |
6 | Data Transmit | Data Transmit | Tx- | Data Transmit |
7 | Data | Data | -Vdc | Power(-)+Data |
8 | Data | Data | -Vdc | Power(-)+Data |
>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
Mechanical & Dimension
Plastic Case Material | PC |
Plastic Case Finish | Texture |
Plastic Case Color | Gray |
Plastic Case Dimension | 125 x 75 x 38 (L x W x H) mm. |

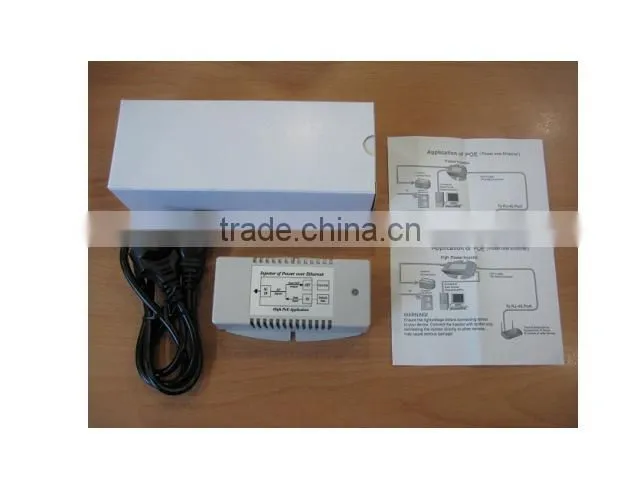

Package
Number of unit in one Carton | 50 |
Weight and Volume with Power cord | N.W.:21Kg. G.W.:22Kg. 2.1Cuft |
White Box Dimension | 21 x 8 x 6 (L x W x H) cm |
Weight of Unit / Weight of White Box | 210g / 390g |
AC Power cord | 4 feet / 122cm |
We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or oceanshipment.
Accept small, trial orders, and costomised orders too!
Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online
>>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>
MITS is a Taiwanese Company has more than 20 years of trading experiences with clients all over the world.
Any kind of customizing product projects are welcome. Please feel free to contact us for product details.
