Specifications

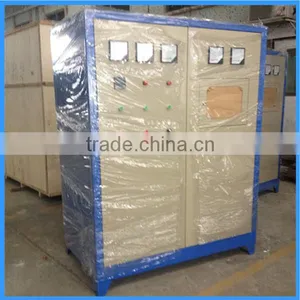

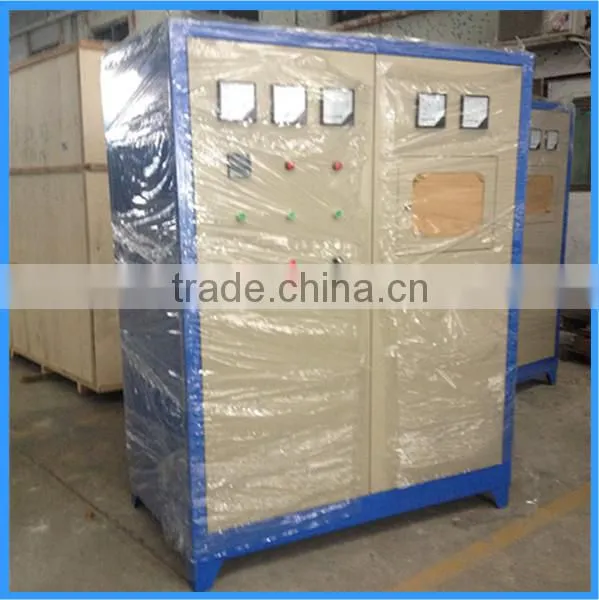

Electrical Power Induction Furnace Melting Device
1.high efficiency
2.easy operation, safety;
3.energy saving.

Electrical Power Induction Furnace Melting Device

 Overview and Application:

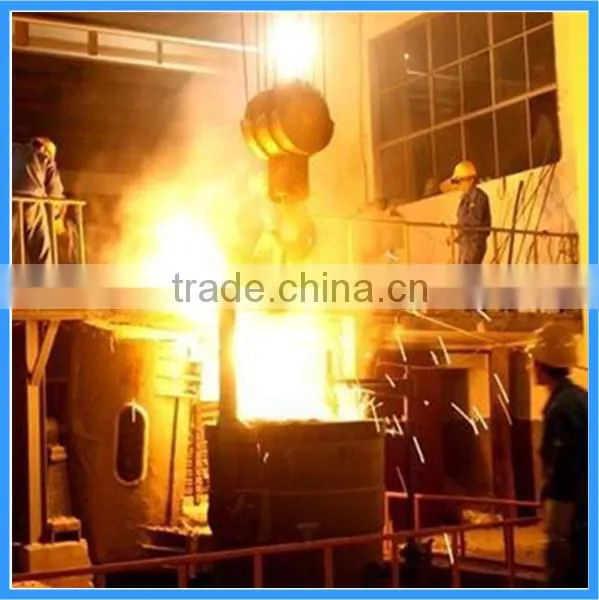

Medium frequency induction melting furnace is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting. It’s applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel sliver and other ferrous or nonferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.





Performance and features:

1. Zero-voltage scanning soft start, start or stop at any time under any state without impact on power supply;
2. Rapidly melting, low production cost, low pollution, conforming to environmental protection requirement;
3. Melting directly from low temperature, available for fully emptying of solution, easy change of melting material;
4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
5. Furnace shell with cast aluminum ally or steel construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
6. Adapt angle of the inverter automatic adjustment circuit design, automatically match the load impedance, keep the equipment running in good working condition without adjusting the compensation capacitance, automatically diagnose error and easy to maintenance.





Medium Frequency Induction Heating Machine
Model NO. (capacity)	Input power(50/60HZ)							Water consumption (Ton/hour)	Power/Ton(KW/H)
	power       (KW)	Input voltage   (V)	current (A)	Direct current    (A)	Direct voltage   (V)	MF voltage  (V)	MF frequency   (KHZ)		steel	iron	Red copper	brass	aluminum	Melting time (minute/furnace)
JL-KGPS--0.1T	100	380	160	200	500	750	1-2.5	5-10	800	750	450	400	580	30-70
JL-KGPS--0.25T	160	380	256	320	500	750	1-2.5	5-10	750	700	440	380	550	30-70
JL-KGPS--0.3T	200	380	320	400	500	750	1-2.5	5-10	700	650	430	380	530	35-60
JL-KGPS--0.5T	400	380	640	800	500	750	1-2.5	10-30	650	600	430	370	500	40-60
JL-KGPS--0.75T	500	380	800	1000	500	750	1-2.5	10-30	630	580	420	350	460	40-70
JL-KGPS--1T	800	380	1280	1600	500	750	0.7-1	10-30	600	560	410	340	440	40-70
JL-KGPS--1.5T	1200	380	1920	2400	500	750	0.7-1	20-50	580	530	400	330	420	45-80
		720	1010	1260	950	1650								40-70
JL-KGPS--2T	1500	720	1263	1578	950	1200	0.5-1	20-50	560	520	400	330	410	40-85
		950	960	1200	1200	1650								40-75
JL-KGPS--3T	2000	720	1600	2150	500	1200	0.5-1	30-60	530	510	400	330	410	40-85
		950	1280	1684	1200	1650								45-75
JL-KGPS--5T	3000						0.3-1	30-60	510	490	400	330	410
		1000	1850	2280	1315	1850								45-85
JL-KGPS--10T	5000	1000	2130	2660	1315	1850	0.3-1	50-100	500	470	400	330	410	45-85
Interior temperature:1.steel  1650°C   2.iron1450°C      3.red copper 1150 °C     4.brss 950 °C    5. aluminum 700 °C       6.tin:400 °C
