6.20 MM Pitch wire to wire electrical connectors
- 100000 Piece / Pieces per Month
- Hongkong
- T/T L/C D/P D/A
You May Like
-
2.36MM Pitch wire to wire electric connectors with BUCKLE
-
1.58 MM Pitch wire to wire electric connectors with buckle
-
4.50 MM Pitch wire to wire electric connectors with buckle
-
4.5MM Pitch wire to wire electric connectors Made in China
-
2.5MM Pitch Wire to board electric connectors made in China
-
2.50MM Pitch Wire to board electric connectors Molex replacement
Product Details
| Place of Origin | Guangdong, China | Brand Name | SWB | |
| Model Number | 6420HT | Type | Other |
Product Description

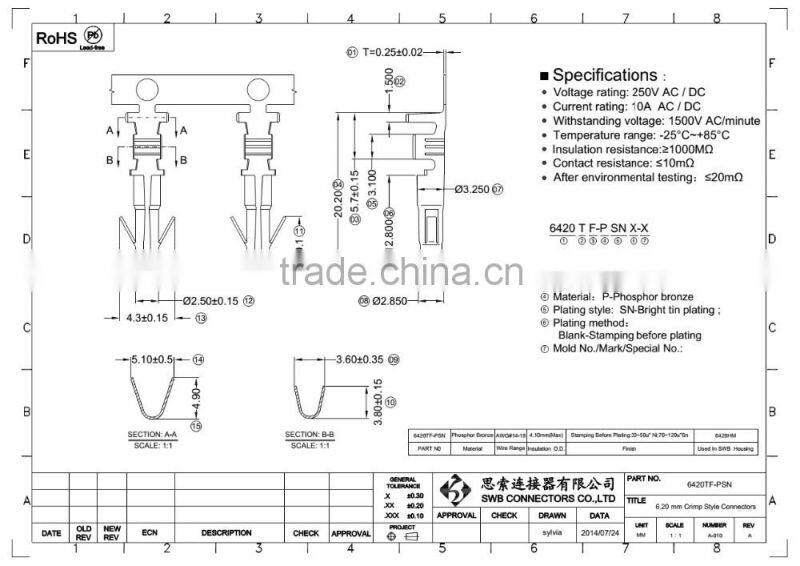

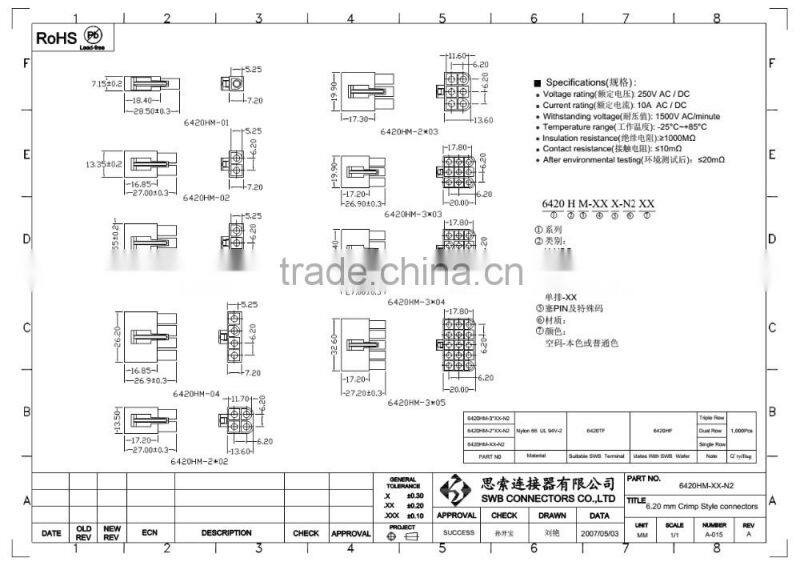

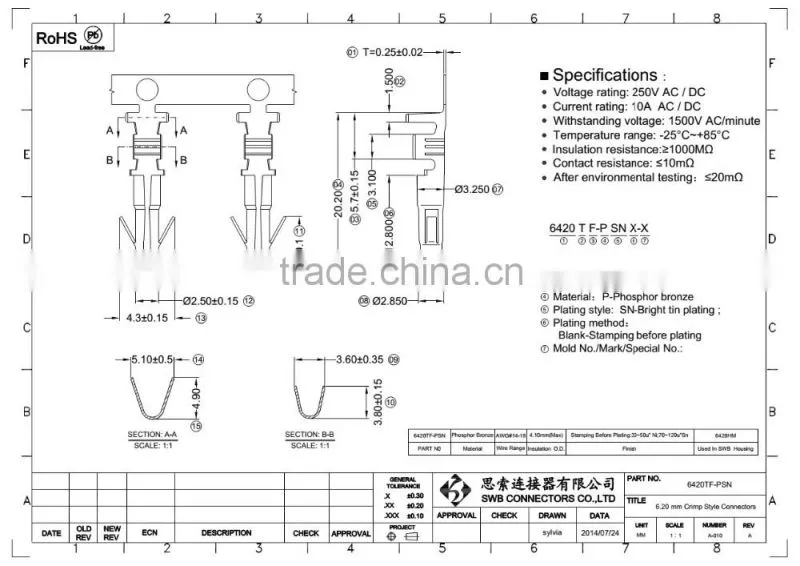

6.2MM Pitch wire to wire electrical connectors
SPECIFICATIONS:
Voltage Rated: 250V AC/DC
Current Rated: 10A AC/DC Max
Withstand voltage: 1000V AC/minute
Insulation resistance: 1000MΩ min
Contact resistance: 10 MΩ max
Operation temperature: -25℃~+85°C
Wire Range:AWG#14-22
Item | Part No | Material | Poles | Package |
Housing | 6420H | Nylon66 UL94V-2 | 01 02 03 04 | 1000 Pcs/Bag |
Terminal | 6420T | Brass |
| 3000Pcs/Reel |
1 Packaging: Useing strong bags/boxes/cartons for package to reduce the damage during the shipments. Tape and reel packing, Clamshell packing,Pallet packing etc are available.
2 Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc.
3 Delivery Time: normally 7-14days, could be negotiable when order is urgent.
1 fully-Inspection - Products are 100% inspected before shipment
2 In case of quality discrepancy or quantity discrepancy, we will do replenishment immediately, or other better methods after negotiation, to make sure our customers could be satisfied well.
3 Solution - Find the problems, make an effective improvement, and impose more strict quality control.
4 Long term after sell service to ensure customer is satisfied.
