XWD Cycloidal Drive Gear Reducer Planetary Electric Motor
- 2000 Set / Sets per Month
- Ningbo Shanghai or Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Gearing Arrangement | Cycloidal | Output Torque | 70-20000N.m | |
| Rated Power | 0.25-55kw | Input Speed | 1000-1500rpm | |
| Output Speed | 11-167rpm | Place of Origin | Zhejiang, China | |
| Model Number | XWD | Brand Name | YBANG |
Product Description
Specifications
XWD Cycloidal Drive Gear Reducer Planetary Electric Motor1.Quality assurance
2.Honest provider
3.Earlier delivery
XWD Cycloidal Drive Gear Reducer Planetary Electric Motor
OBANG produces YB..series gear motors with international advanced level, including YBR series helical gear motors, YBF parallel shaft helical gear motors, YBK series helical bevel gear motors, YBS series helial worm gear motors, YBH series helical gear units, YBB series bevel helical gear units, YBT series bevel steering gears, WP series helical worm speed reducer, NMRV speed reducers,B/X series cyclo drive reducers,SWL worm screw actuaters and other small parts.
Detailed instruction:
B, X series Planetary Cycloidal Reducer model and size:
B series planetary cycloidal reducer model : BL, BLD, BLY, BLE, BLED, BLEY, BLB, BLT, BLN, BLZ, BW, BWD,BWED, BWY, BWEY, BWE, BWB, BWN, BWT, BWZ
X series planetary cycloidal reducer model: XL, XLD, XLY, XLE, XLEY, XLED XW, XWD, XWY, XWE, XWEY, XWED
Single stage:B109, B0, B1, B2, B3, B4, B5, B6,B7, B8, B9, B12, B15, B18, B22, B27, B33, B39, B45, B45, B55, B65, B120, B150, B180, B220, B270, B330, B390, B450, B550, B650, X1, X2, X3, X4, X5, X6, X7, X7, X8, X9, X10, X11, X12
Double stage: B109, B10, B20, B30, B31, B41, B42, B52, B53, B63, B74, B84, B95
Single stage ratio: 7, 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
Double stage ratio:99,121,187,289,391,473,595,391,473,595,731,841,1003,1225,1505,1849,2065,2537,3481,4189,5133,7569
Items: XWD

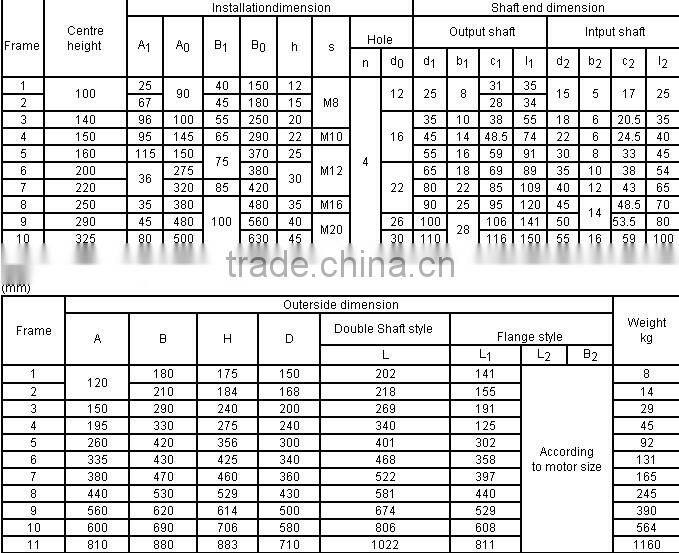

Appearance and installation dimension
1, cycloid reducer big reduction ratio, high efficiency: a reduction gear ratio is 9~87, the two-stage reduction gear ratio is 121 ~ 5133, multistage combination can reach tens of thousands, and the needle tooth meshing line type rolling friction, the meshing surface no relative sliding, so a reduction efficiency of 94%.
2, pin wheel reducer smooth running, low noise: the teeth contact at the same time when in operation, the coincidence degree high, stable running, strong overload capacity, low vibration and noise, a variety of models, small noise.
3, the use of reliable, long life: because the main part is made of high carbon alloy steel quenching (HRC58-62), and then grinding, and cycloid gear and pin gear set mesh transfer to the pin gear form rolling friction pair, friction coefficient is small, so that the meshing zone no relative sliding, wear small, so durable.
4, compact structure, small volume: compared with other reducer with the power of the above weight, small volume 1/3, as is the planetary transmission, the input shaft and the output shaft in the same axis, in order to obtain the smallest possible size.
(1) With excellent quality
(2) Reasonable price
(3) Promise to delivery on time
(4) Large output torque
(5) Safe, reliable, economical and durable
(6) Stable transmission, quiet operation
(7) High heat-radiating efficiency, high carrying ability
(8) Certificate of quality: ISO9001:2008
(9) Every product must be tested before sending
(10)Made of high-quality aluminum alloy, light weight and non-rusting
(11)Large output torque.
(12) Smooth running and low noise.
(13) High radiating efficiency.
(14) Good-looking appearance, durable service life and small volume.
(15) Suitable for Omni bearing installation.
Welcome to us for more details and parameters
If you have any questions, please feel free to contact me.
Best regards,
Kayla
