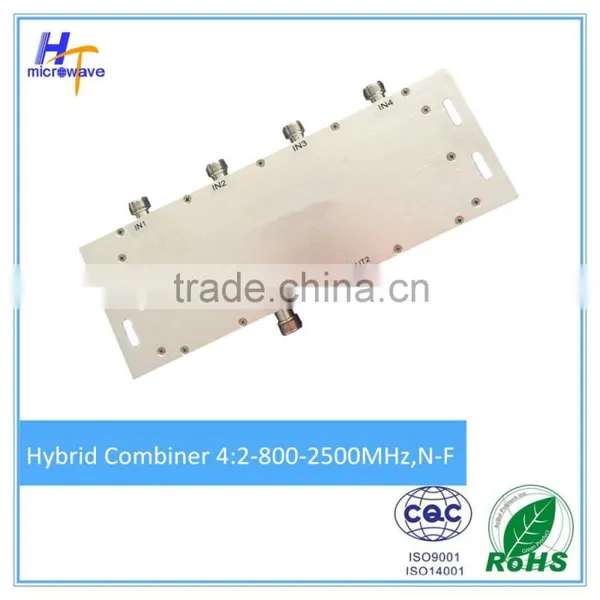

wideband microwave component rf Combiner 4x2 4 in 2 out 800-2500MHz N Female

Name: wideband microwave component rf Combiner 4x2 4 in 2 out 800-2500MHz N Female
Brand: HTMicrowave
Availability: InStock

FOB Price

USD $80 - $85 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shanghai ShenZhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Anhui, China

Brand Name:

HTMicrowave

Model Number:

HT.CPD-0825-41101

Packaging Details

50PCS/Carton; Shipping Marks & Logo can be customized.

Product Description

HTMICROWAVE CO.,LTD

RELATED PRODUCT


Reactive Power Splitters	Directional Couplers	Hybrid Couplers	Hybrid Matrix Combiner	Attenuators

Terminations	Low PIM Attenuator& Terminations	Antennas	Cable Assembly	Connectors & Adapters

HT HYBRID COMBINER SERIES

Hybrid Combiner is commonly used in combine two or more signals on the same frequency band.Its main function is to achieve a multi-channel broadband microwave signal and to ensure that the isolation between the output signal and reduce the signal interference.Mainly used in repeater station or base station for combing power,also can be used in indoor distribution system.

800-2500MHz Hybrid Combiner Series NF

800-2500MHz 2:1 Hybrid Combiner NF

800-2500MHz 2:2 Hybrid Combiner NF

800-2500MHz 3:1 Hybrid Combiner NF

800-2500MHz 3:2 Hybrid Combiner NF

800-2500MHz 4:1 Hybrid Combiner NF

800-2500MHz 4:2 Hybrid Combiner NF

800-2500MHz 4:4 Hybrid Combiner NF

698-2700MHz Hybrid Combiner Series NF

698-2700MHz 2:1 Hybrid Combiner NF

698-2700MHz 2:2 Hybrid Combiner NF

698-2700MHz 3:1 Hybrid Combiner NF

698-2700MHz 3:2 Hybrid Combiner NF

698-2700MHz 4:1 Hybrid Combiner NF

698-2700MHz 4:2 Hybrid Combiner NF

698-2700MHz 4:4 Hybrid Combiner NF

800-2700MHz Hybrid Combiner Series NF

800-2700MHz 2:1 Hybrid Combiner NF

800-2700MHz 2:2 Hybrid Combiner NF

800-2700MHz 3:1 Hybrid Combiner NF

800-2700MHz 3:2 Hybrid Combiner NF

800-2700MHz 4:1 Hybrid Combiner NF

800-2700MHz 4:2 Hybrid Combiner NF

800-2700MHz 4:4 Hybrid Combiner NF

FEATURES OF PRODUCT

Hybrid Combiner Series: 3:1, 3:2, 4:1, 4:2 and 4:4 Combiner

HT HYBRID COMBINER SERIES

1. Multiple-Band Frequency

2. Low VSWR and Loss

3. High Isolation

4. High Reliability,Moisture Sealed
5. Economic price
6. Certifications: ISO9001,ISO14000,SGS RoHS Compliant

SPECIFICATION

HT Hybrid Combiner 3:1,3:2,4:1,4:2,4:4--800-2500MHz N-Female

Electrical Specifications:
Combiner Type	2:1	3:1	3:2	4:1	4:2	4:4
Frequency Range	800-2500MHz
Insertion Loss(dB)	≤3.5	≤5.5	≤7.0	≤7.3
VSWR	≤1.25:1	≤1.3:1
Isolation(dB)	≥23	≥18
Average Power(W)	100/200
Impedance(Ω)	50
Connectors Type	N-Female
Operating Temperature(℃)	-20~+55
Finish	Black Plated or Passivated Aluminum

PACKAGE AND TRANSPORTATION

COMPANY FILE

HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m² and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.

TESTING EQUIPMENT

OUR CUSTOMERS

FAQ

Q:Are you factory or trading company?

A:We are manufacturer.

Q:How long is your delivery time?

A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.

Q:Do you provide samples?Is it free?

A:Yes,we provide samples if you need.Free or not is depended on the product you need.

Q:What is your terms of payment?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below
