Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > China Jinan High Efficiency CNC Router With Three Heads

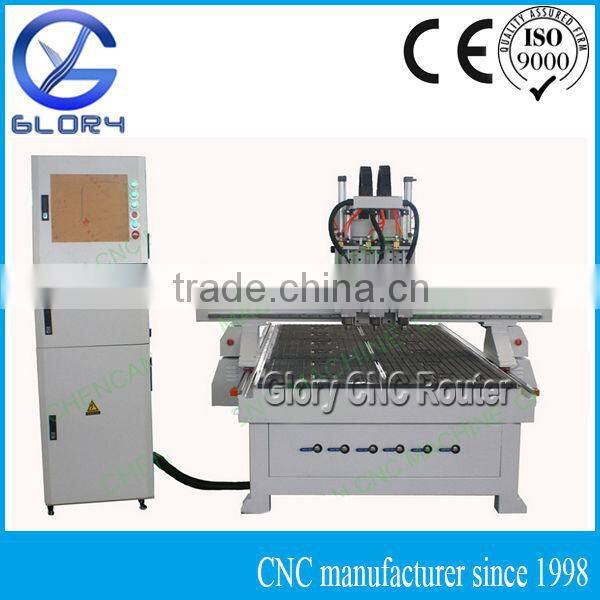

China Jinan High Efficiency CNC Router With Three Heads

Name: China Jinan High Efficiency CNC Router With Three Heads
Brand: Glory
SKU: 124025699
Availability: InStock

Jinan Glory Import And Export Trading Co., Ltd.

China Jinan High Efficiency CNC Router With Three Heads thumbnail-1

China Jinan High Efficiency CNC Router With Three Heads photo-1

US$ 8,800 - 11,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name Glory

Model Number GY-M1325AS3

Voltage 380V/220V

Power(W) varied

Dimension(L*W*H) 3100*2050**1800mm

Weight 1600kg

Certification CE, ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

CNC Router with Three Head
1. vacuum table
2. air cooling system
3. factory price
4. CE, ISO approved

CNC Router with Three Head

Product Highlight
Asynchronous multi-head woodworking CNC Machine is customized for changing the tools within 2-4 pieces. Its not only economic, also can realize auto tool change, save the time of manual tool change and improve the working speed and precision.
Product Features
1.	Three spindles can use three different tools for three different processing at the same time, which is similar with an economical auto-tool changer cnc machine center with three tools.
2.	Advanced Weihong computer control system.
3.	Heavy bistratal side plates can keep large supporting power for the gantry moving precisely.
4.	Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
5.	With absorption block, the machine can process the big wide board as well as the bizarre/rare shape work piece.
6.	Table is equipped with alignment pop-up pins for you to fix the work piece quickly.
7.	Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam, etc.
8.	This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
9.	Dust-collection device and considerate oil plate can always keep the working table clean.
10.	High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.
11.	We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs.
12.	Manual oil-injection system allows the machine maintenance mush easier.

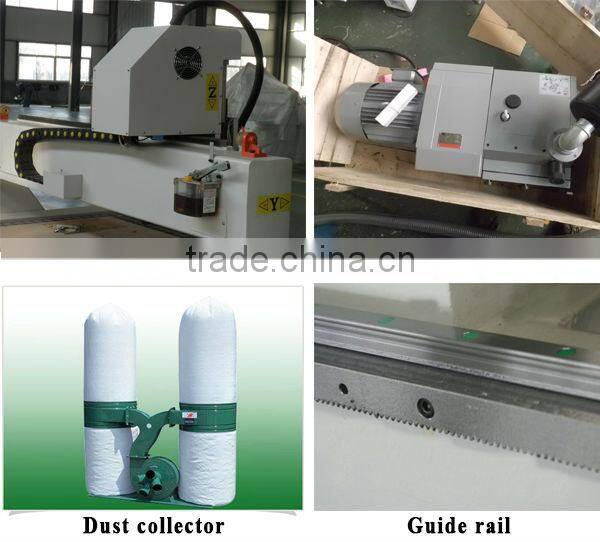

Main Parts

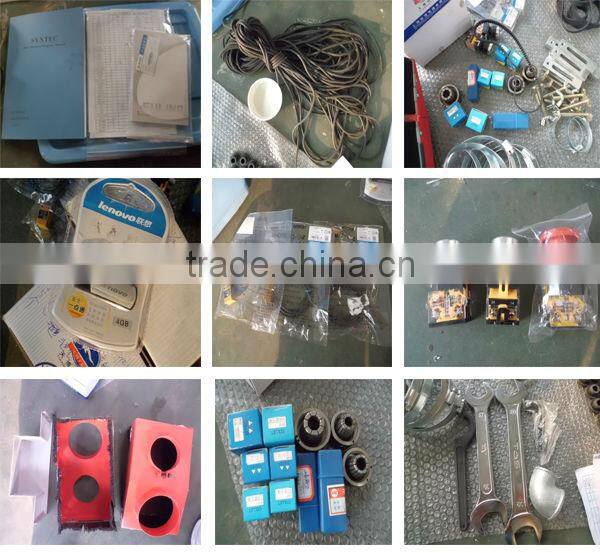

Accessories

Technical Paramters
Working Area (X Axis)	1300mm
Working Area (Y Axis)	2500mm
Clearance (Z Axis)	200mm
Spindle	3.5kw air-cooled
Spindle Speed	Adjustable 0-24,000 rpm
Tool Change	Manual Tool-Change
Drive System (X & Y Axes)	Helical Rack & Pinion
Drive System (Z Axis)	Germany ball Screw
Drive Motors	Four sets stepper motors
Inverter	Fuling
Driver	Yako
Command	G code
Cutter diameter	3.175-12.7mm
Maximum Travel Speed	45m/min

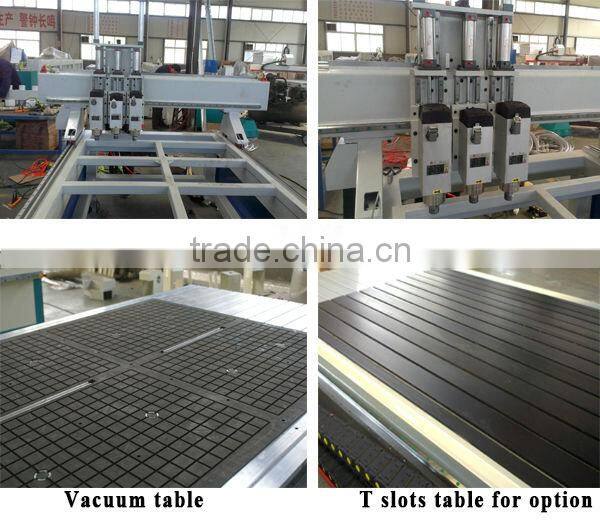

Table Top	Vacuum table with T slot and Suntion block
Controller	Weihong computer

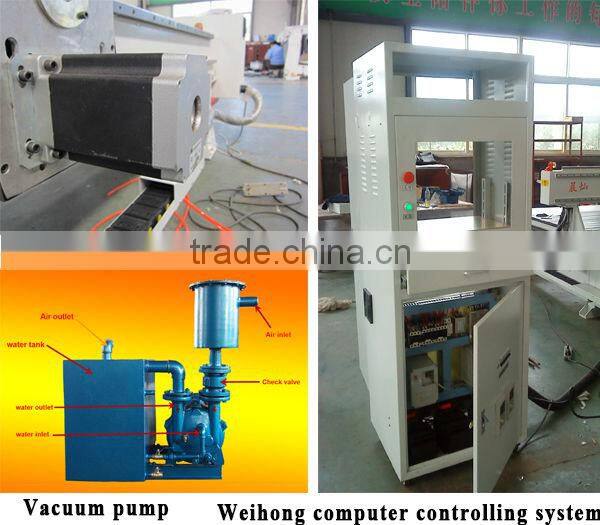

Vacuum Pump	Water cycle vacuum pump
Lubrication	Manual oil-injection system
Softwares	Artcam, AutoCad,UG, Alphacam, Powermill, Type3, Wentai, etc
Power Requirements	3-phase 380V/50HZ, 220V for optional
Optional	1. Yaskawa servo motors and driver 2.T slots table 3. Oil lubricated vacuum pump 4.Water cooling spindle 5.Syntec controller 6. More or less spindles etc

Application
Wood processing	Processing of various furniture such as door, window, cabinet, screen and so on
Advertisement	Engraving and cutting various labels and number plate.
Art craft	Engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materials
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials and light metal materials.
Processing effect
Engraving, cutting, drilling, milling, enchase, relief, etc.
Samples

Service and Guarantee
1. Technical supports and suggestions before you order a machine according to your work piece. 2. Professional instruction for the operation of the machine. 3. One year warranty, we will provide the consumable parts at cost price after the warranty period. 4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications. 5. 24-hour technical support by email or calling.
Part Replacement
Customers have to send the broken parts to us within one week to our factory address: West Mingjia Road, Qihe Economic Development Zone, Shandong Province. We will check and send you the new one within one week. 1. Customer has to bear the cost of returning the broken parts. 2. If the broken parts is not man-made damaged, we will afford the cost of the new parts and its freight cost.

FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. Moreover, you could come to our factory to learn how to use it before shipment. Our technician will give you professional guidance.
2. If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
