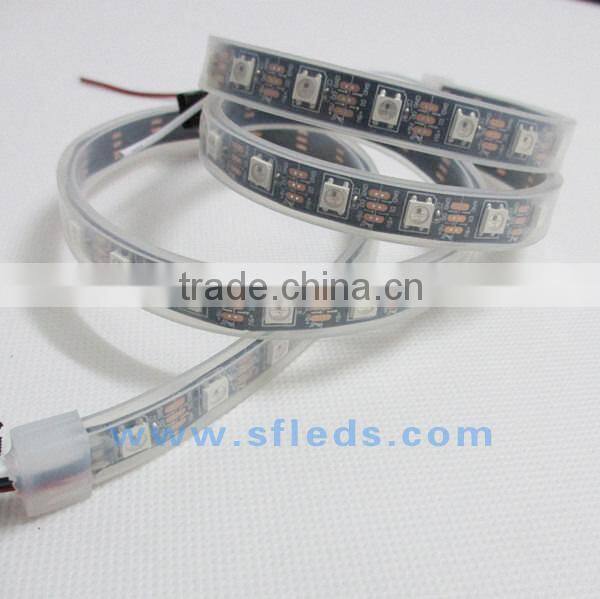

5050 SMD RGB 30LED/m Addressable Color Strip Light 5V Black PCB WS2812b led strip ip65

5050 SMD RGB 30LED/m Addressable Color Strip Light 5V Black PCB WS2812b led strip ip65

Product Description

LED flexible led  5v led strip  , Single Color/RGB, 30/60/144 pcs SMD5050 per meter, Non-waterproof, 5V

Color available:  Red,Green, Blue, Yellow, White,Warm white, Pink, Purple,Double color
Circuit board Color: White/ black/Yellow

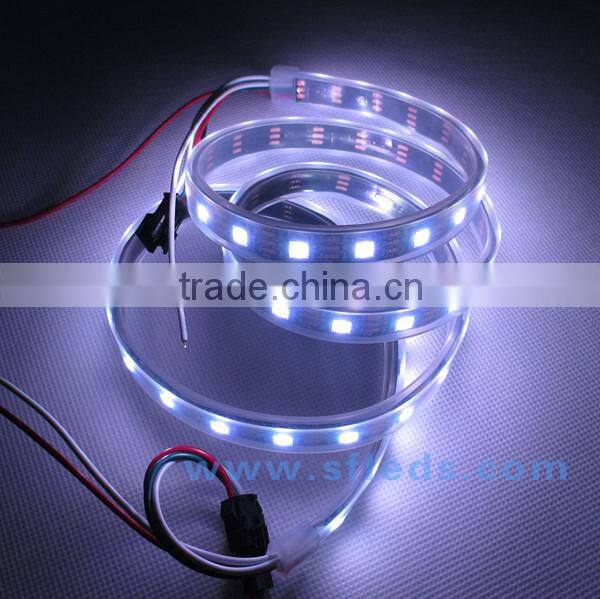

Waterproof Level: IP65/IP67/IP68
Waterproof Material: Epoxy, Silicone hollow tube

Features

Low heat ,no radiation,green and healthy,DC drive, no flash, light uniformity.
Low power consumption,High brightness Light source,Stable performance,Long life 50,000 hours
Random bend, Can be arbitrarily fixed on Bump surface.
Cuttable every 3 LEDS along the cutting marks,without damaging other parts.
Formed by the printed circuit board,with double-sided adhesive on the back for paste.

WS2812B led pixel strip 30/60/144 leds/m WS2811 IC 30/60/144 pixels

WS2812 Compare With WS2812B:

WS2812 LED has 6PIN, WS2812B LED has 4PIN

We supply other CE ROHS non-waterproof and waterproof digital RGB led pixel strip

type  :30 leds/m,10 IC/m, 7.2w;60leds/m ,20 IC/m,14.4w.

Control system:

DMX512, Madrix, Art-net compatible.

For testing order 5-10M, Mini controller.

For project order 500M+, T300K controller.

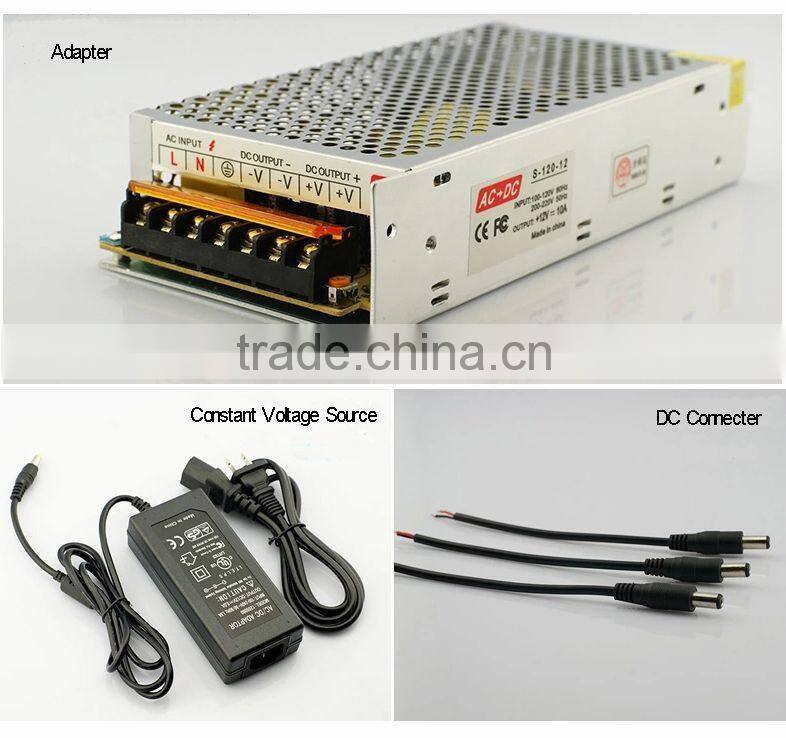

  We also provide WS2812/WS2812B/WS2811,  IR Remote , Power Adapter other accessory.

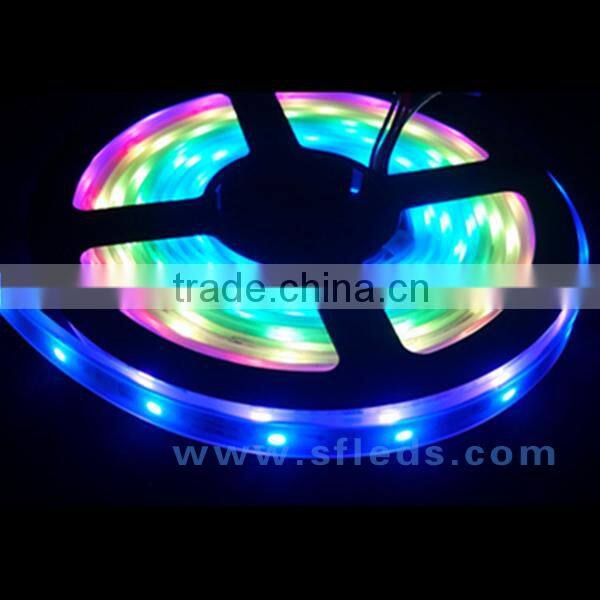

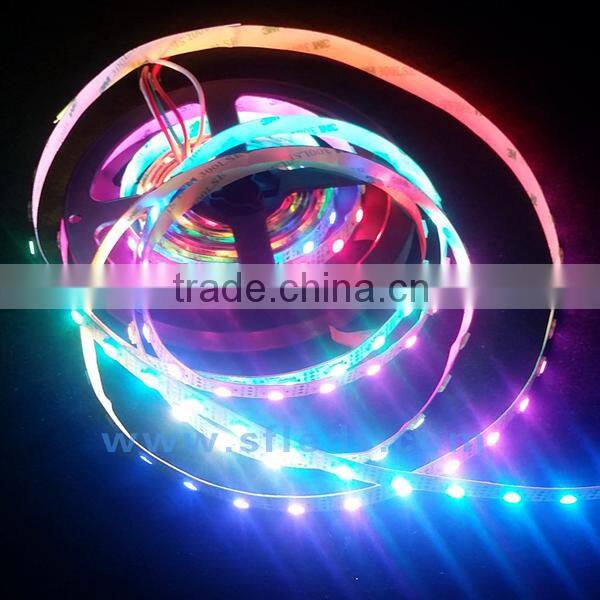

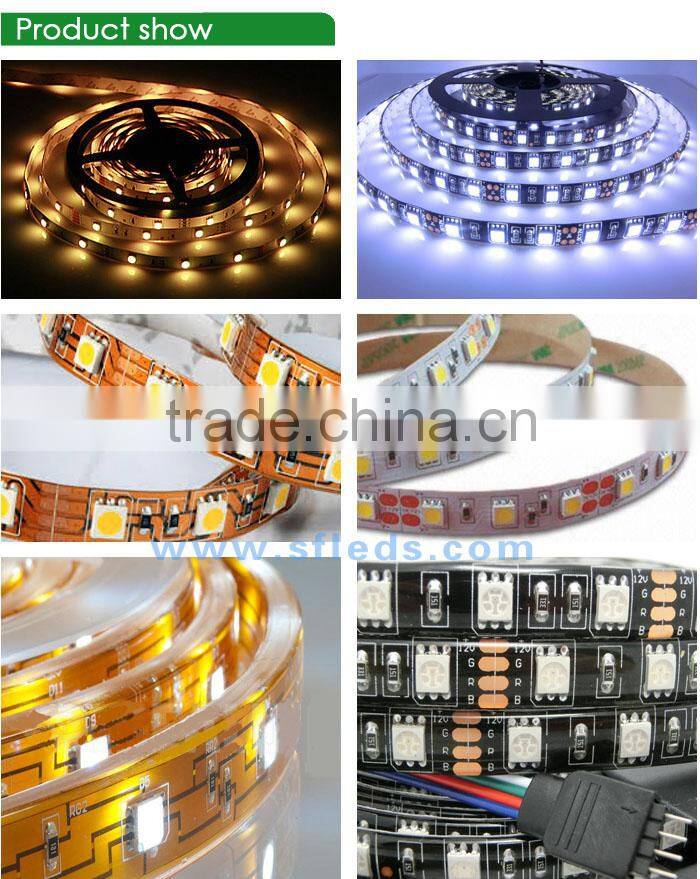

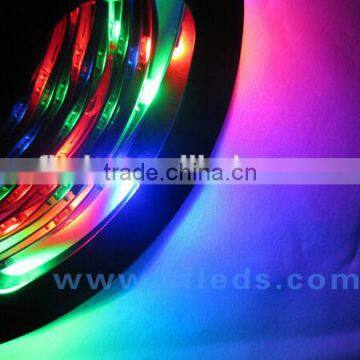

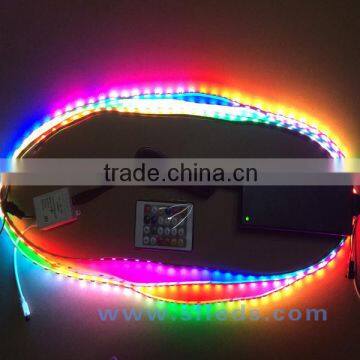

Show  pictures:

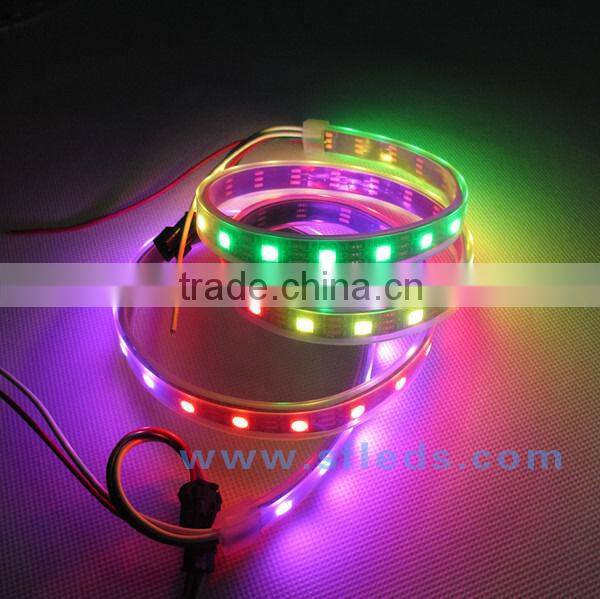

Addressable full color led strips(ws2812b) ——WS2811 IC built-in 5050 RGB LED chip.

Individually control —— 1IC & ILED chip.

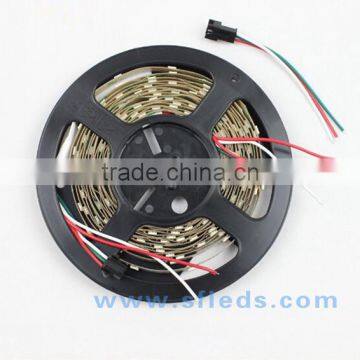

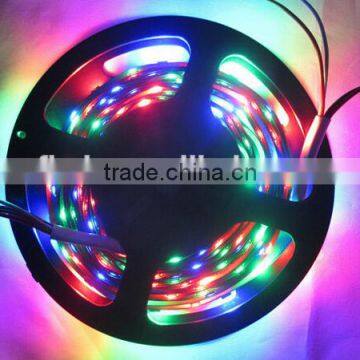

Standard Reel Lengt: 5meter/roll, also can be customized.

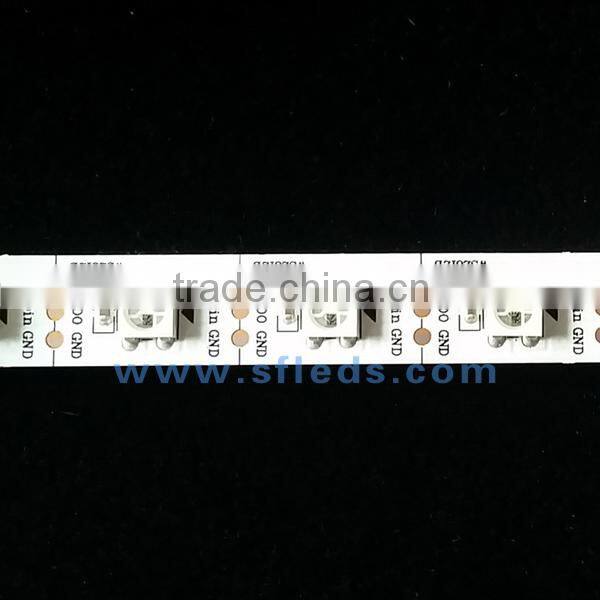

Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.

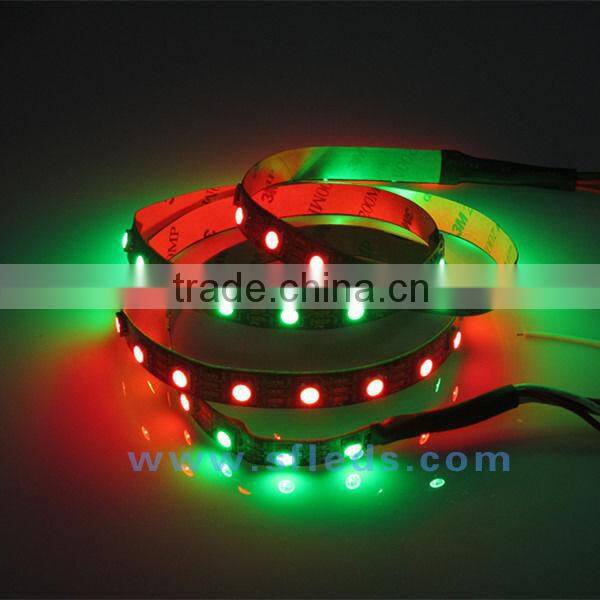

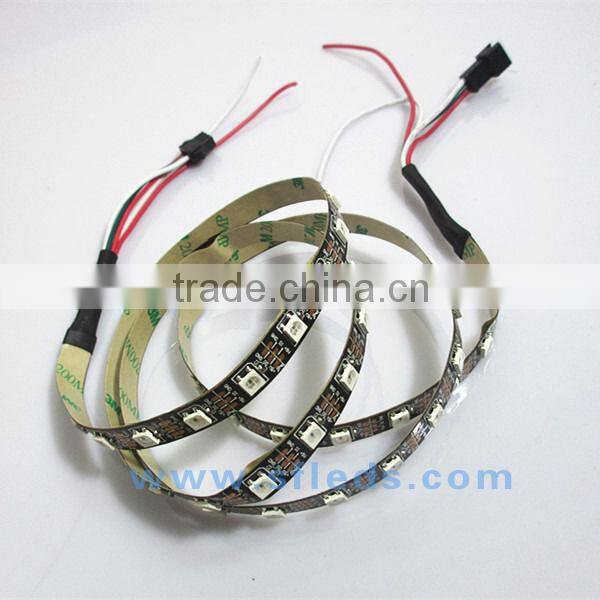

Sticky: with 3M adhesive on back side for sticky.

          screw+silicon clip, or 3M adhesive back side.

Installation Notice:

1. Make sure the connection is correct according to the diagram.
2. Pay attention to the parameters limit of voltage. DO NOT run over the peak value.
3. Keep the surface of installation clean and smooth avoid breaking off.
4. Avoiding the crook area just the position of Led and other components, in order to protect the product and extend the life pan of the product.

Notice:

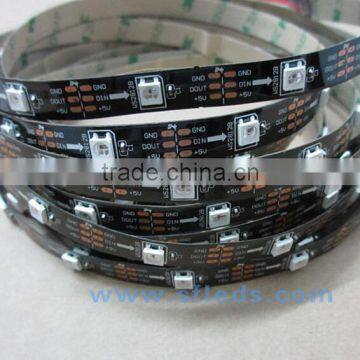

There are direction arrows on the PCB, arrow direction for connecting next reel strip;
GND not only for power wire, also as signal wire, need connect to both power and controller;
The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
Power of LED driver + power of controller + power of amplifier > power of total strip light;
Every 5m strip need re-connect to power supplier, avoiding voltage drop;
Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;
DO NOT attempt to make sharp bend with the strip;
When you use non waterproof LED strip light, DO NOT install where water or high humidity may be present without further protection;
Away from strong acid or strong alkali.
