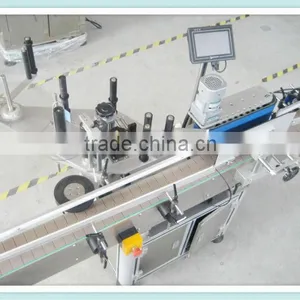

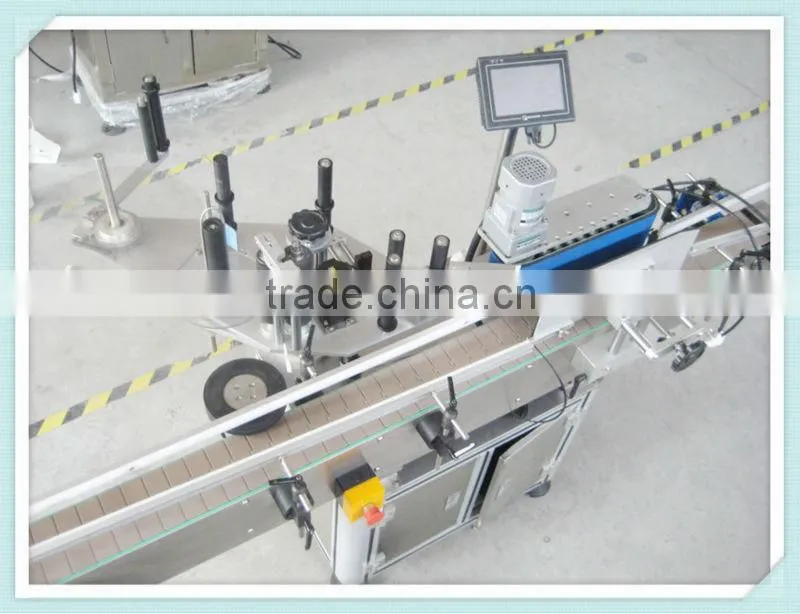

Automatic Adhesive Labeling Machine

this machine

is mainly used in labeling on bottle of column shape and other shapes. It can finish the whole packaging process including bottle supplying, label supplying, label separating, batch No. printing, labeling and rolling. And it is also equipped with the protector which will automatically stop label suppling and sticking when there is no bottle supply, stop working when there is no lable or conveyer brokened and make the working process perfect. It is an electricity integrated modern machine and mainly used in the industry of food, medicine, chemical, light industry and so on. It is applicable to the label roll with the inner diameter 75mm, external diameter 300mm.

Features:
1.Client can choose to add printer or code machine.
2.It can work separately or work connecting with conveyer.
3.Client can choose to add round bottles mechanism
4.Main body is made by SUS304 stainless steel &processing by anode of aluminum metal.
5.Head of label is import from japan motor driving.
6.The high-grade photo sensor and control system made in Japan,America and Taiwan
7.PLC control system match human machine interface, it is simple to operation

Technical Parameters:
 Size of Machine:  2800(L)×1650(W)×1500(H)mm
 Labeling Speed:  60-350pcs/min(Depending on the length of label and thickness of bottle)
 Height of Object:  30-350mm
 Thickness of object: 20-120mm
 Height of Label: 5-180mm
 Length of Label: 25-300mm
 Accuracy of Labeling: ±1mm
 Label roller inside diameter: 76mm
 Label roller outside diameter: 420mm
 Power Supply:  220V 50/60HZ 3.5KW Single-phase
 Gas consumption of Printer 5Kg/cm^2
 Weight of Machine: 450Kg

Machine Packing and Loading
