Bottled Pure Water Filling Machine

Specifications

1. Bottled Pure Water Filling Machine
2. 200ml to 2L Water Bottle Filling
3. Full Automatc
4. 2000 to 20000bph water filler

Welcome your visit to Zhangjiagang Dingshun Machinery Factory!

Our company specialized in providing complete beverage line machinery for water,juice, carbonated beverage,alcohol and oil.



Bottled Pure Water Filling Machine

Main Features



1).This Bottled Water Filling Machine is used to fill PET bottle pure water, mineral water,distilled water and other non gas beverage.



2). This bottled water filling machine has the functions of bottle washing, water filling, and bottle capping. This design reduce the time of water contact with outside. It improve the sanitation condition, increase the production capacity and economic efficiency.



3). It adpots hanging type conveying bottle structure to make changing different bottle sizes with less time and more convenient.



4).This water filling machine use high quality food grade stainless steel material. All the material contact with water is Stainless Steel 304 (& stainless steel 316L according to customer's demands).



5).The whole machine is equipped with advanced PLC controlling system. Key electric elements is from international well-known brand such as MITSUBISHI, OMRON,SCHNEIDER.



6).  This bottled water filling machine XGF series with Filling Capacity 2,000bph to 20,000bph for your choice.





XGF series bottled water filling machine model and related information

Model:	XGF8-8-3	XGF12-12-4	XGF14-12-5	XGF18-18-6	XGF24-24-8	XGF32-32-10	XGF40-40-12
Capacity (500ml based)	2000-3000BPH	4000BPH	5000BPH	8000BPH	10000BPH	12000-14000BPH	16000-18000BPH
Suitable bottle :	Round bottle or square bottle
PET bottle: (mm)	(Bottle Diameter):φ50-.φ110mm   (Height):150-340mm
Suitable cap specification	PE screw cap
Filling precision:	≤±5mm
Filling pressure:(MPa)	≤0.4Mpa
Machine power	3.13	3.75	4.4	5.2	6.2	6.8	7.8
Machine size:(mm)	1900*1500*2300	1900*1500*2300	2150*1650*2300	2400*1965*2300	2680*2200*2300	3800*2200*2300	4250*3000*2300
Weight: (kg)	1500	1800	2100	3500	4500	5500	6800

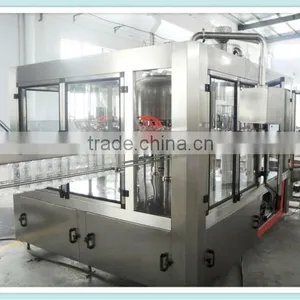

Pure Water,Mineral Water Filling Machine whole body outlook





This XGF series bottled pure water filling  machine parts pictures

Rinsing                                                           Filling                                                     Capping



Production on spot



Machine Packing and Loading



Our factory and workshop



 Welcome your visit to our factory and build good business relationship with us!
