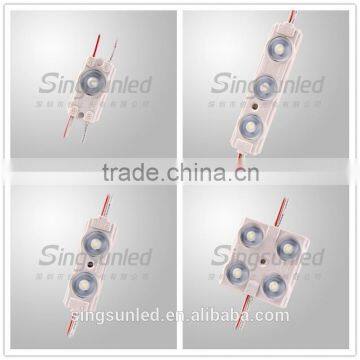

2015 hot sell 5 years warranty led module waterproof white color injection 2835 led module

FOB Price

USD $0.38 - $0.48 / Piece

1000 Pieces(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Model Number:	STF-T3B	Emitting Color:	Other, warm white/nature white/cool white	Luminous Flux(lm):	105lm
Optical Attenuation(%):	3%	Power:	Other, 1watt	Power Dissipation:	1watt
Color Rendering Index(Ra):	75	Color Temperature:	2700-9000k	Operating Temperature(℃):	-20, 60
Storage Temperature(℃):	-50, 60	Place of Origin:	Guangdong, China	Brand Name:	Singsunled
Certification:	CE

Features:

1. Adopt TOP 2835 SMD LED, no light spot, with a low lumen recession and good consistency.

2. With a low power consumption and high lumen value, 35-40LM/led, a long life-span, maintenance-free.

3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.

4. IP Rate: IP65, waterproof.

5. DC 12V low voltage input, constant current drive method, reliable and safe.

6. Adopt series-parallel connection circuit, 20pcs per string, each module could be singled out.

7. Viewing angle: 165-170°.

8. Five years warranty.

Product Specifications:

LED Type	2835 SMD LED
LED BRAND	Epistar chip from Taiwan
Viewing Angle	165-170°
Luminous Flux(lm)	105LM
LED Qty	3 pcs
Life Span	50,000 H
Working Voltage	DC12V
Consumption	1watt
Driving Method	constant current
Stand Length In Serial Connection	20pcs
Maximum Length In Serial Connection	≤20pcs
Shell	white ABS
Dimension	70176.5 mm
Available Color	W/WW/CW
Certification	CE&ROHS
Working Temperature	-20℃ —— +60℃
Store Temperature	-50℃ —— +60℃
IP Degree	IP65

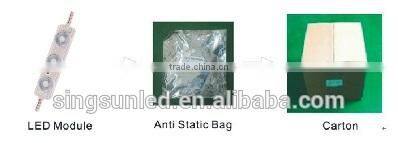

Package:

Every 20 pcs per a string, every 5 string in an anti-static bag, 2800 pcs per a carton box. Carton size: 50*35*31.5 cm.

Net Weight: 9.5 g/pc; 200 g/string; 28kg/carton.

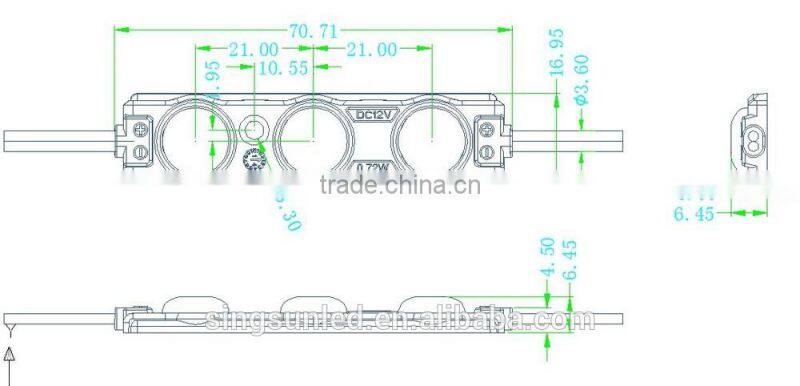

Dimesion Diagram(mm):

Application:

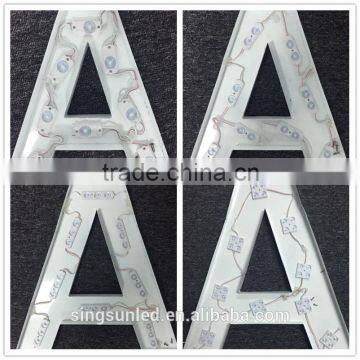

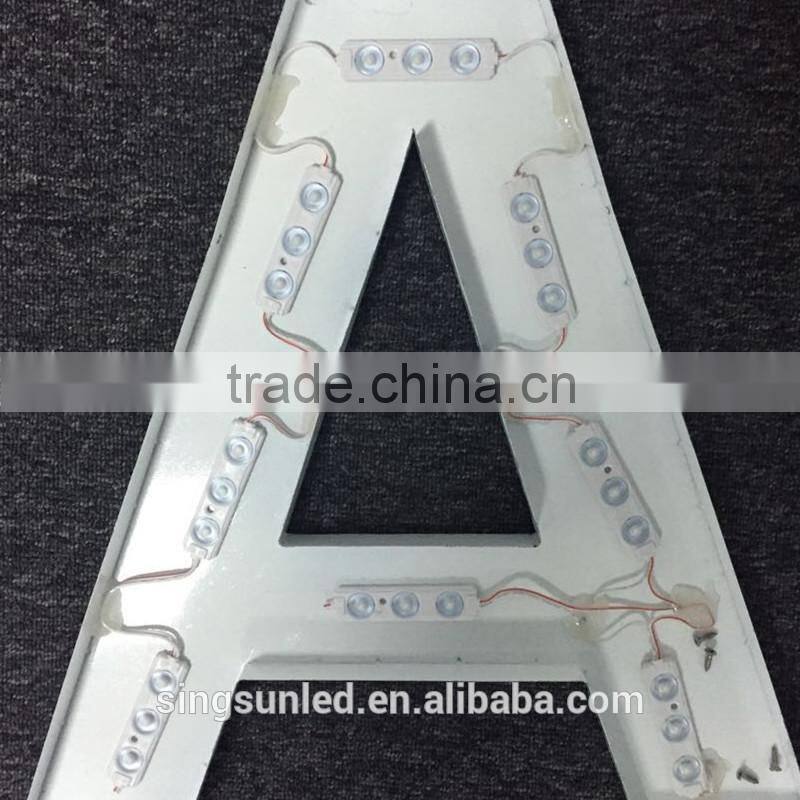

This product is applicable for 12-20cm glowing character, advertisement board, light box or local lighting.

CE & RoHS Certifications:

Exihibition Pictures:

Russian REKLAMA 2014 (Time: 23-36, September, 2014. Booth No: FC144)

2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014. Booth No: CR-A32)

2014 GZ & Shang Hai International Lighting EXPO
