DC12v led light module led backlight module for light box injection led module light

FOB Price

USD $1.4 - $1.5 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

DC12v led light module led backlight module for light box injection led module light.

Features:

Ø With series-parallel connection circuit for led pcb, each string has 20pcs and each module can be cut individually;
Ø Take 3535 LED as light source, no light spot, low decay and good consistency;
Ø The LED passed America LM80 standard, 5 years quality warranty
Ø ABS Injection outer cover, beautiful and unique appearance, good heat dissipation;
Ø Low consumption, high brightness, free maintenance, long life span
Ø Input voltage: DC12V, reliable and safe
Ø Protect level: IP65, waterproof.

Product Specifications:

LED Type	3535 LED
LED BRAND	GENESIS
Viewing Angle	160°
Luminous Flux(lm)	160 LM
LED Qty	1 pcs
Life Span	80,000 H
Working Voltage	DC12V
Consumption	2 W
Driving Method	constant voltage
Stand Length In Serial Connection	20pcs
Maximum Length In Serial Connection	≤20pcs
Shell	Milk white ABS
Dimension	45*35 mm
Available Color	W/WW/CW
Certification	CE&ROHS
Working Temperature	-20℃ —— +60℃
Store Temperature	-50℃ —— +60℃
IP Degree	IP65

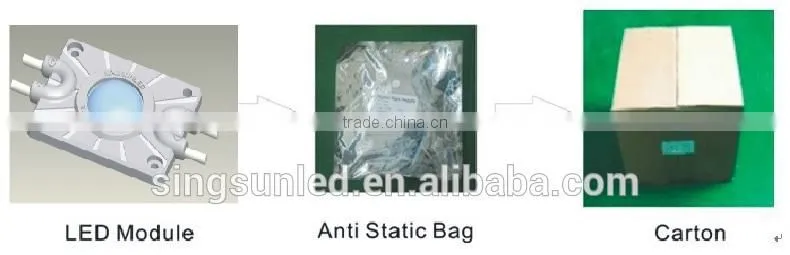

Package:

Every 20 pcs per a string, every 3 string in an anti-static bag, 800 pcs per a carton box. Carton size: 50*35*31.5 cm.

Net Weight: 15 g/pc; 300 g/string; 12kg/carton.

Dimension Diagram(mm):

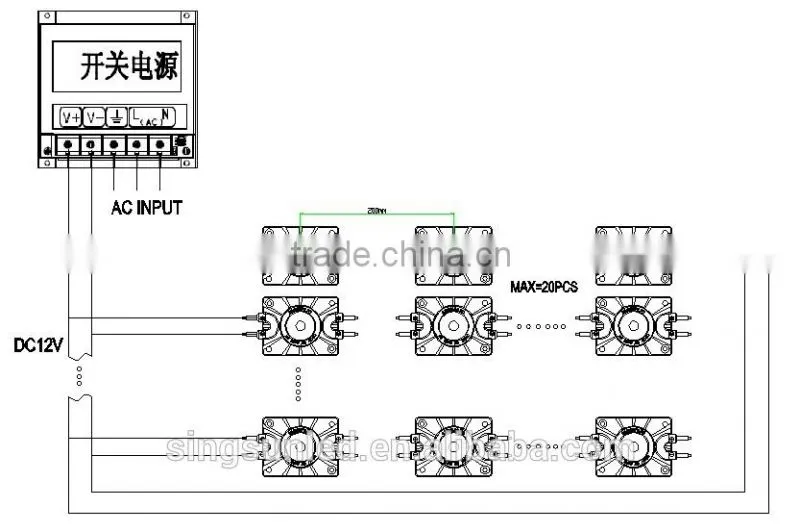

Connection Diagram:

Applications:

1. Backlight for single side lighting box.

CE & RoHS Certifications:

Exhibition Pictures:

Russian REKLAMA 2014 (Time: 23-36, September, 2014. Booth No: FC144)

2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014. Booth No: CR-A32)

2014 GZ & Shang Hai International Lighting EXPO
