Help CenterElectric Fan Motor Asychronous Motor Electrical Motor Shaded Pole Motor YJ62-20: 230V,50hz,22w, 2000-2500rpm,<43dB,CL.B
Related Products
-
Electric Motor Single Phase 50hz 220v YJ62-30:air Pump Motor ac Shaded Pole MotorUS$ 3 - 7MOQ: 1000 Units -
Air Compressor Nebulizer Motor Oxygen Concentritor Motor: SP AC Motor 230V 50/60Hz UL/CE CertifiedUS$ 5.4 - 5.81MOQ: 1000 Pieces
-
110V Blower Motor Air Compressor Nebulizer Motor Electric Motor Shaded Pole Motor YJ62-30: 127/230V, 60hz, High Quality MotorUS$ 3 - 7MOQ: 1000 Units
-
Small Powerful Electric Motors YJ62-30: 120/220v, 50/60hz, Insulation Class A/E/B/F/H,2500-3000rpm,electric Motor SpecificationsUS$ 3 - 7MOQ: 1000 Units
-
230V 50/60 Hz Shaded Pole Motor, High Pressure, Steady Operation,low Noise Piston Nebulizer MotorUS$ 5.45 - 6MOQ: 1000 Pieces
Specifications
Rated Voltage:100-240VACLaminations: 8--25mm

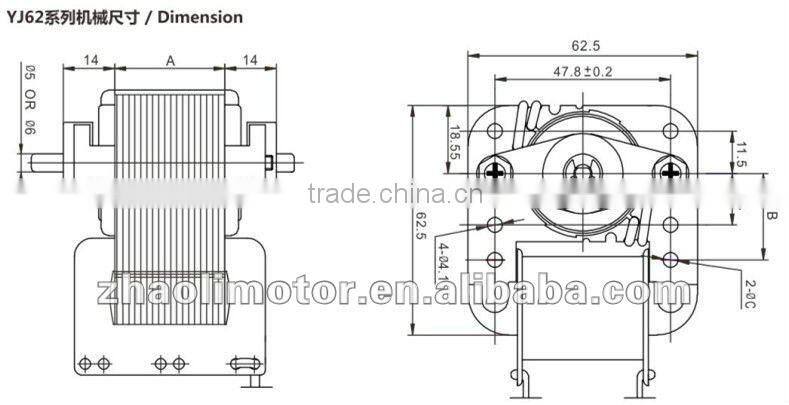

Size: 62.5*62.5mm
Life: 5000-10000 hours

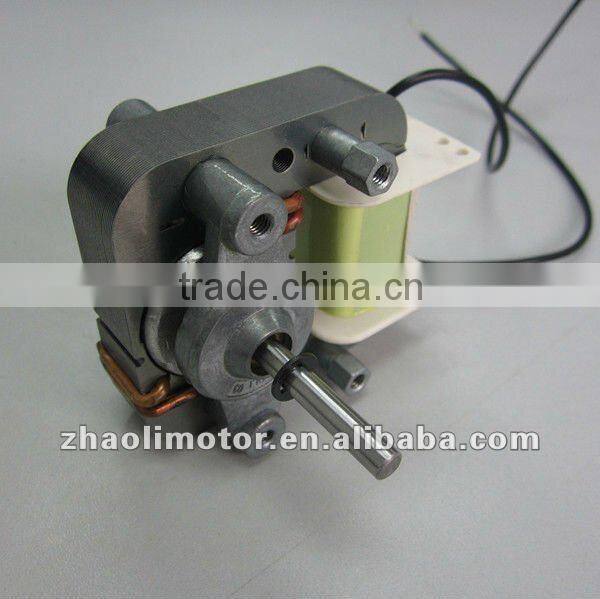

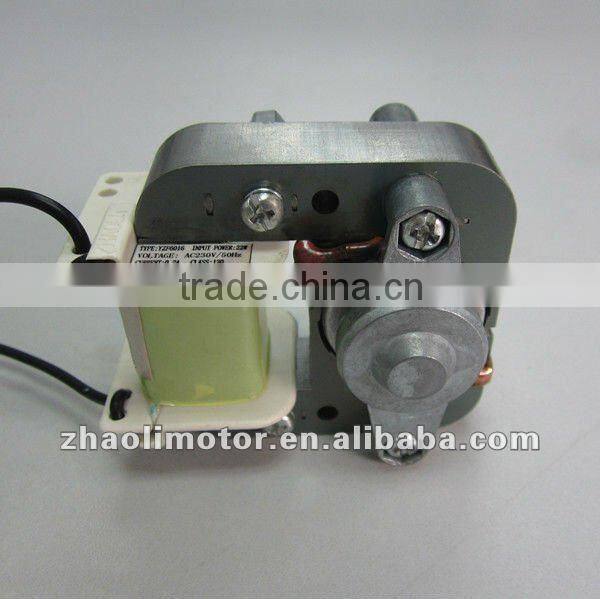

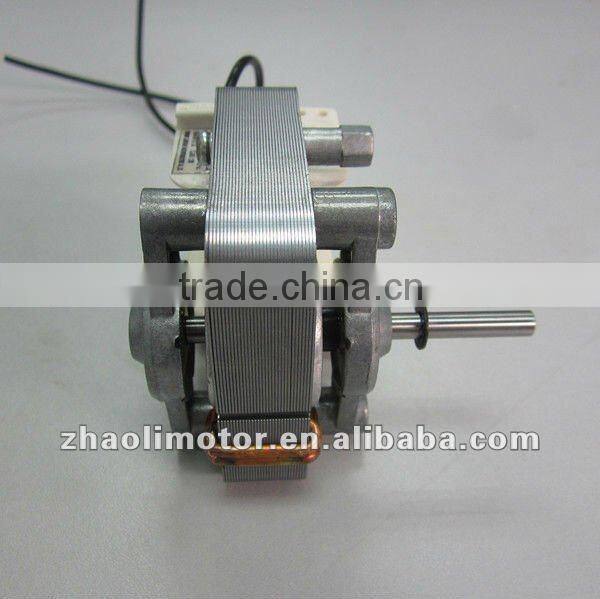

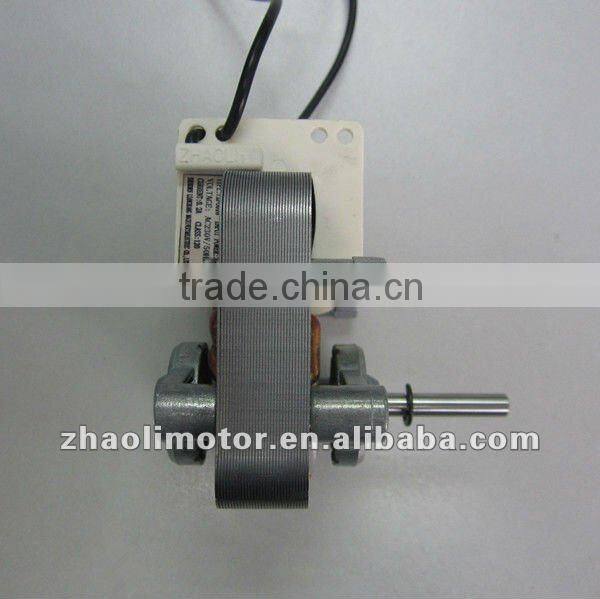

Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.

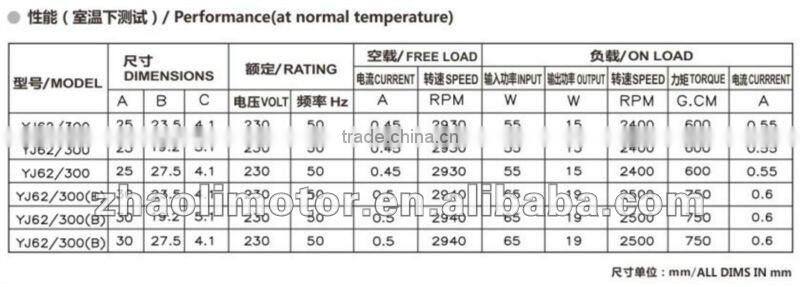

Product General Performance Parameters:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Noise--------------------------less than 43Db(A)
Life----------------------------5000-10000Hours
Core Thickness---------------8-40mm
Shaft Diameter(mm)---------Φ2.5,Φ3.17,Φ4.0,Φ4.6,Φ5.0,Φ5.5,Φ6.0,Φ6.35
Series: YJ62-20
Characteristics:
Low noise, Stable operation, Long life, No electromagnetic interference, Less maintenance.
Application:
Ventilator, Nebulizer, Vacuum pump, Air pump

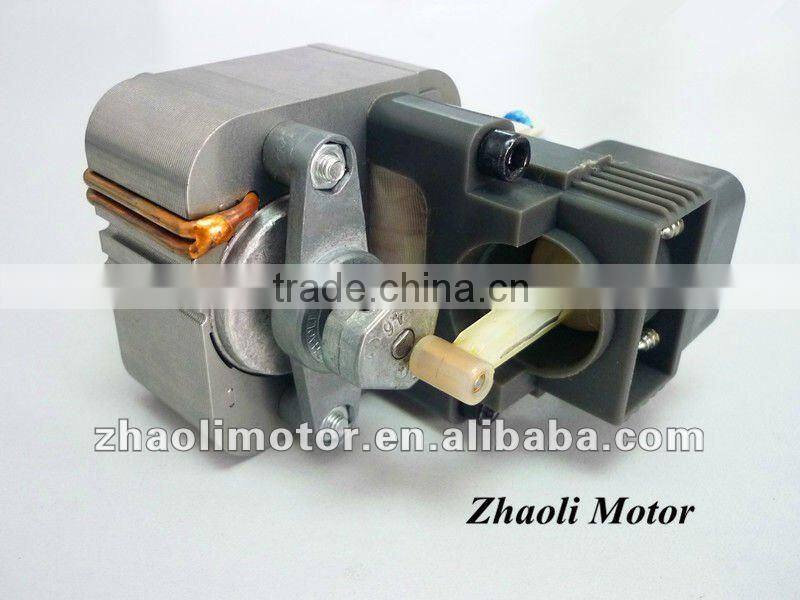

Motor with Pump assembly:
Send Inquiry to This Supplier
