Biomass briquette machine energy saving wood sawdust briquette machine bio briquette machine for fuel +8615896531755

Specifications

bio briquette machine
High efficiency,low pollution
Good sales service
high briquette ratio

Biomass briquette machine energy saving wood sawdust briquette machine bio briquette machine for fuel





1.Brief Introduction of  bio briquette machine

Wood briquette machine can press the wood wastes to solid briquettes after high temperature and pressure which can make full use of the remainder of farm and forest wastes, and solve the problems of farm and forest resource being i short supply in your country

Suitable material of bio briquette machine

Maize stalks, soybean stalks, fire wood ,parawood scraps,palm shell,broomcorn stalks, cotton stalks, peanut plants, sunflower stalks, bamboo saw dust,bagasse, wood chips, rice husk, coffee husk,coir pith, jute sticks, groundnut shells, Bamboo,wood, Mustard stalk and cotton stalks etc.

Raw material size and moisture needed:

1.Size:Within 5mm , if not, need to be crushed first.
2.Moisture :8-12%,If higher,needed to be dried by airflow dryer or rotary dryer .



3.Technical data of bio briquette machine

Model	Power	Capacity	Dimension	Weight	Final briquette dia
YH50	15	180-200kg/h	1.75×0.6×1.5m	550kg	50mm
YH70	22	400-450kg/h	1.95×0.96×1.5m	650kg	70mm
YH80	22	300-350kg/h	2.0*0.75*1.6m	1050kg	80mm



  4.Final briquette features of bio briquette machine

(1) the final briquettes an be used as fuel to heat, warming, cooking, boiler, BBQ etc.

(2) The diameter could be 50~80mm, length is adjustable, the shape could be square,

hexagonal, pentagon with a hole of 0mm in the body.

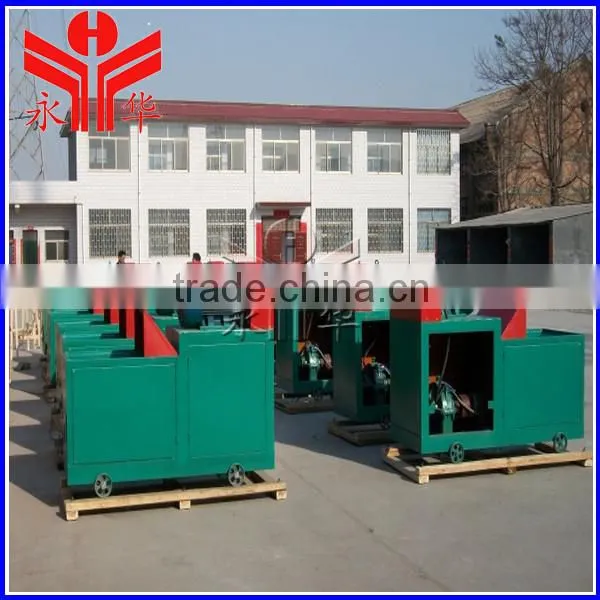

 Machine shows of bio briquette machine



Spare parts of bio briquette machine



Forming cylinder (6 months)

Propeller (3 months)

Heating ring (3 months)

About the spare parts,please notice that, there are three pcs heating rings in our machine,

one big and two small, which is the unique design of our machines. So the price is for 1 set (3 pcs).







Whole line flow chart of bio briquette machine

Crusher---dryer---briquette machine

If need carbonized charcoal,then match a carbonization furnace also.

Carbonization furnace

Final briquette details of bio briquette machine
