Home > Products > ERW Square Pipe Mill > HG165 high frequency tube mill

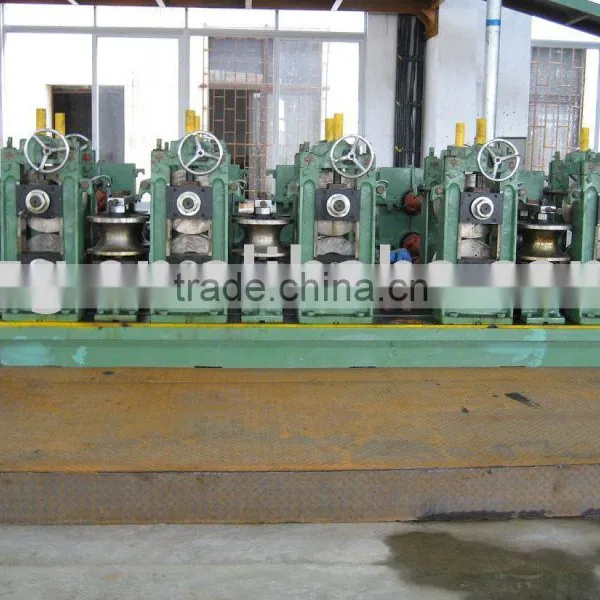

HG165 high frequency tube mill
- 24 Set / Sets per Month
- Xingang
- T/T L/C D/P D/A
You May Like
Product Details
| Type | Pipe Mill | Pipe Material | Carbon Steel | |
| Application | Energy Supply Pipe | Place of Origin | Hebei, China | |
| Brand Name | ZTZG | Model Number | HG165 |
Product Description
Specifications
HG165high frequency tube mill not only can produce round pipes,but also can produce square and rectangle pipesHGΦ165 high frequency tube mill is used to manufacture welded steel pipes of Φ76mm-Φ165mm with 2mm-6mm of wall thickness, which also can produce profiled pipes within the limit of processing round pipes. After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production lines are both economical and practical.
Technical flow:
Uncoiling - Flattening-Shearing&butt welding-Strip Accumulating-Forming-High-frequency induction welding-Bead and burr removing-Zinc patching -Cooling-Sizing Inside Removing-UltrasonicTesting-Cutting-Checking &Collecting-Binding-Weighing-Marking-Accessing Warehouse
Specifications
1.Product Specifications
I. Round pipe diameter range: 76-165mm
wall thickness :2mm-6.0mm
II. Square and rectangle tube : 50*50mm-130*130mm
wall thickness range 2-6mm
III .Tube and pipe length: 6--12m
2. Material Specifications:
Low carbon steel and low alloy steel: δb≤500Mpa
δs≤235Mpa
3 Line specification
production speed : 0-60m/min
Line Direction: right to left(frome operator' s side)
