Professional watertight connector
- 1000 Pair / Pairs per Month
- Qingdao or Shenzhen
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | Granfoo | Model Number: | HTO-WTC-1 |
Type: | BNC | Application: | Other, Audio & Video | Gender: | Other, Male & Female |
Product Description

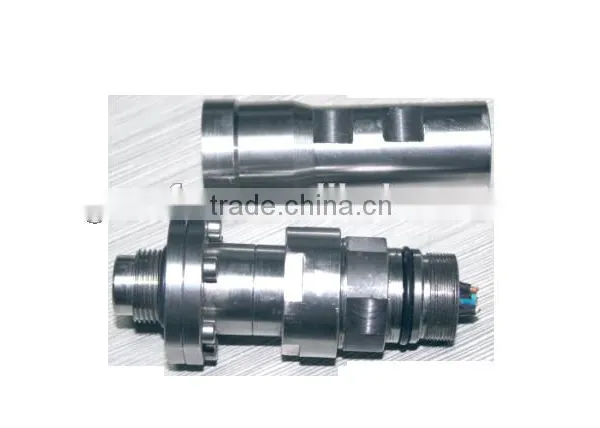

Professional watertight connector which is used for the electrical connection between underwater equipments.
- Can endure high water compression which is up to 1000m depth
- 7-core screw-type connection by welding
- Multilayer design for firmed waterproof performance
Item | Value |
Model No. | HTO-WTC-1 |
Size | φ46×150 |
Material | Stainless steel |
Weight | 0.7KG |
Anti-Tensile | 1000N |
Voltage | 220VAC |
Current | 10AV |
Anti-electric Shock Grade | CLASS II |
Working Depth | Max 1000m |
Working Temperature | -50 ~ 90 degree |
Sinusoidal Vibration | 10-2000Hz/Acceleration 98m/s 10-2000Hz/Acceleration 196m/s |
Collision | Acceleration 490m/s |
Acceleration | 833m/s |
Connection Interface | 16-10core; 16-7core; 16-5core; 16-4core |
Mechanical Life | 500 times |
Packing List:
- Watertight Connector x 1 pair
- User Manual x 1
Payment:
50% deposit in advance and 50% balance before shipping.
CE & RoHS
Haitian Ocean Technology is an main OEM provider for Underwater Downhole, Oil Well Logging, Borehole, Fishing Detection & Inspection Camera System products.
We offer full wide range for customers from different areas such as Oil Well Detction, Underwater Security, Underwater Caltivation, Underwater Fishing etc.
Our products including:
Military Grade Underwater Oil Well Logging series
Underwater Caltivation Series
Downhole Inspection Camera Systems Series
Borehole Inspection Camera System Series
Dual-view 360 degree Inspecton Camera System Series
We accept OEM or ODM project from professional cusctomers.
1. Is Haitian Ocean Technology the manufacturer or a trader?
A: Haitian Ocean Technology is the direct manufactorer and also the main OEM provider in the industry.
Our main partners are located at USA, EU, JP, AU etc.
2. What is the warranty?
A: All products from us enjoy 2 year warranty.
3. Can Haitian Ocean Technology accept samples or trials?
A: We welcome new customers to test our samples or start from trials.
