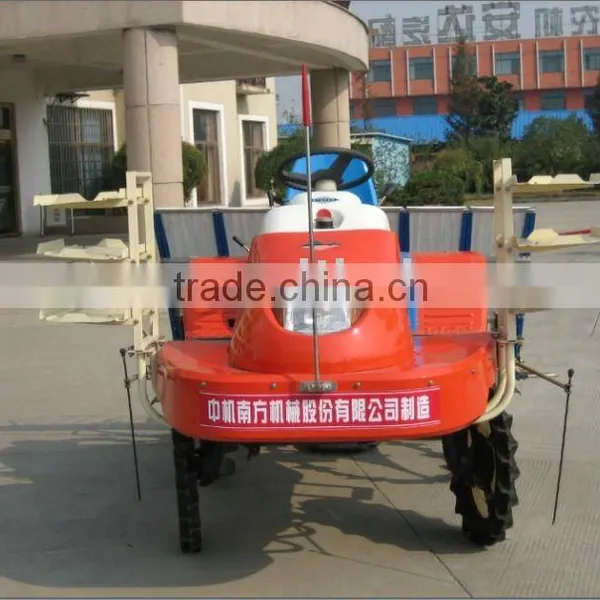

High speed Rice planting Tractor

Machine dimension

Total length

3250

Total width

2390

Total height

1495 (6 seedling trays)

Minimum height from ground

400mm

Machine weight

685kg

Engine

Model

CH18

Brand

KOHLER (America)

Type

Air cooled 4-stroke 2-cylinder OHV gasoline engine

Total air exhaust

624CC

Power/rpm

11.3kw(12.6ps)/3600r/min [Max. 13.4kw(18ps)]

Fuel

Automobile lead-free gasoline (above 90#)

Fuel tank capacity

11L

Startup method

Starter motor

Walking part

Steering method

Hydraulic power assisted steering

Wheel

Type

Front wheel

Solid tyre

Rear wheel

Rubber lug wheel

OD×W

Front wheel

650mm×78mm

OD×rim width

Rear wheel

900mm×50mm

Wheel track

Front wheel

1080mm

Rear wheel

1200mm

Speed change method

Hydraulic speed transmission (HST)

Transmission Brand

JEIL (Korea)

Steps of speed change

Main speed transmission: forward stepless,

backward stepless (auxiliary transmission: 2 steps)

(transplant rice seedlings): 0~1.35m/s,

(walking): 0~4.2m/s

Seedling transplanting part

Rice seedling transplanting method

Rotary type forced transplanting

Line numbers of transplanting

6 lines

Row spacing

30cm

Plant spacing

12, 14, 16, 18, 21(cm)

Plant numbers

90, 80, 70, 60, 50 (plant/3.3m2)

Transplanting depth

1-4cm (5 grades)

Regulating of 1 young plant

Numberof transverse conveying times

16 times, 18times, 20 times, 26 times (4 sections)

Number of vertical conveying times

8~18mm

Seedling conditions

Type of seedling

Soil bearing seedlings

Leaf age and seedling height

2.0 leaves ~ 4.5 leaves, 8cm~25cm

Loading capacity of ready seedling

6 boxes or 8 boxes

Transplanting efficiency (calculated value)

0.25~0.4 hectare/hour
