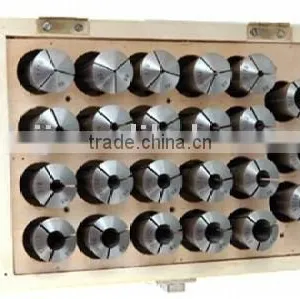

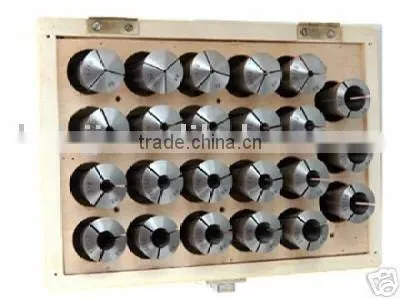

ELASTIC COLLET R8 COLLET SET

Specifications

R8 COLLET SET
1.Made by elastic steel 65Mn
2.Power clamping ability, precise accuracy
3.Used for boring, milling,drilling,etc

R8 COLLET SET



1.Made by elastic steel 65Mn



2.Power clamping ability, precise accuracy



3.Used for boring, milling, drilling, tapping, grinding and engraving operation, etc.



4.Hardness: clamping part HRC55~60 elastic part HRC40~45



5.Competitive appearance, reasonable price, high quality and precise accuracy







We hope to establish business relation with you sincerely.

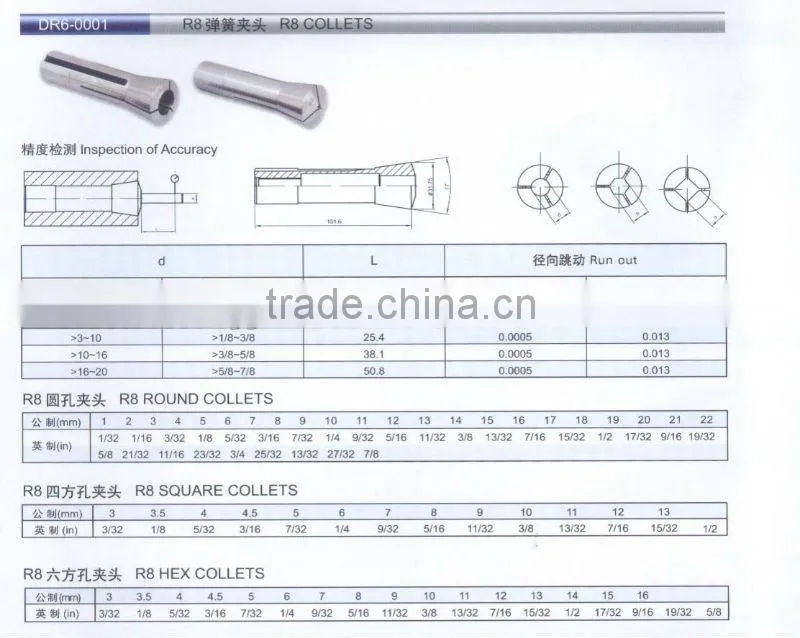

Inspection of Accuracy:



d		L	Run out
mm	in	mm	in	mm
1-1.6	1/32-1/16	6.35	0.005	0.013
>1.6-3	>1/16-1/8	12.7	0.005	0.013
>3-10	>1/8-3/8	25.4	0.005	0.013
>10-16	>3/8-5/8	38.1	0.005	0.013
>16-20	>5/8-7/8	50.8	0.005	0.013











Type	Clamping Range		Wt(kg)
	mm	in
Round	1-20	1/16-7/8	0.24
Square	3-13	1/8-1/2	0.24
Hex	3-16	1/8-5/8	0.24

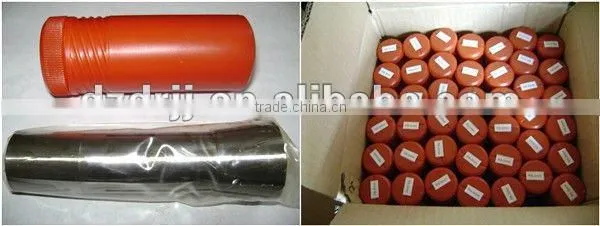

Packaging:







Company Profile:



We are a manufacturer established in 2003.  Specialized in design, manufacture and marketing of machine tool accessories.



Production includes milling chuck series,CNC tool series,collet series,boring heads series,tapping chuck series,pull studs,er nuts,centers,mores taper sleeves,drill chucks,precision tool vises,parallel block series,V-block clamp,etc.



Sales covering the USA,Germany,Britain and regions in South Asia with increasing trust from customers.We are capable of supplying accessories with German standards,Japanese standards,American standards as well as national standards.



Should any of these items be of interest to you,please let us know.We'll be happy to give you details.
