1300mm no pe paper slitting machine

Specifications

1300mm no pe paper slitting machine
1)paper slitting rewinder can slitting different size of paper
2)large used in paper indu

1.Equipment Name:  1300mm no pe paper slitting machine

2.Description:

Paper Slitting Machine is widely used paper paper cup paper mill factory .

3.Technical Specification :

QFJ-1300 Paper Slitting Machine

Main technical parameters:

1. Weight Range :50-400G

2.Slitting width :50-1050mm

3.Slitting diameter less than :1300mm

4.Finished products width: 50/200mm, Rolls diameter less than 1100mm,Cut face error : more or less 1mm, Roll Elastic consistent, end-flush.

5.Slitting width error :more or less 0.5mm

6.Machine speed :0-130m/min

7.Material allowed range :50-400g

8. The scope of winding finished:50 mm–1050mmwith machine there are14pcs cutter , Round knife is from Shanghai Shenlong Tool Factory (upper and lower knives can be arbitrarily)

9. Roll Take-up mode: use dual-income material shaft center winding, according to different requirements of arbitrary choice roll take-up. With removable inflatable shaft (3-inch inflatable axis 2 in the machine) (inflatable shaft prefer to use German technology, Zhejiang Yafei power production).

10. Edge System: Configuration screw correction side / manual tracking devices to ensure accurate position can be controlled by the waste side of 3-8 mm or less. (Depending on different materials)

11. Unwinding section: use of extension units around regulation, inflatable solid tight to ensure the safe and convenient loading and unloading.

12.Discharge tension control: Using 20kg magnetic brake

13.Random configuration automatically credited “meter” devices, alarm,

parking etc, machine equipped with the safety signal and protective

covers, protective axis in order to ensure safety in production.

14.Host using 5.5kw frequency conversion stepless adjusting speed 0-130 m / min can be adjusted according to different materials. (use inverter Shandong Huifeng Electronics which with Taiwan technology,)

15. Machine with high-quality steel plate (30mm thick) and the channel structure, Linear bearing slide

16. Use 100mm diameter and surface treatment dynamic balancing roller.

17.Winding Part : use dual-torque motor control, rolling diameter less than 1300mm.

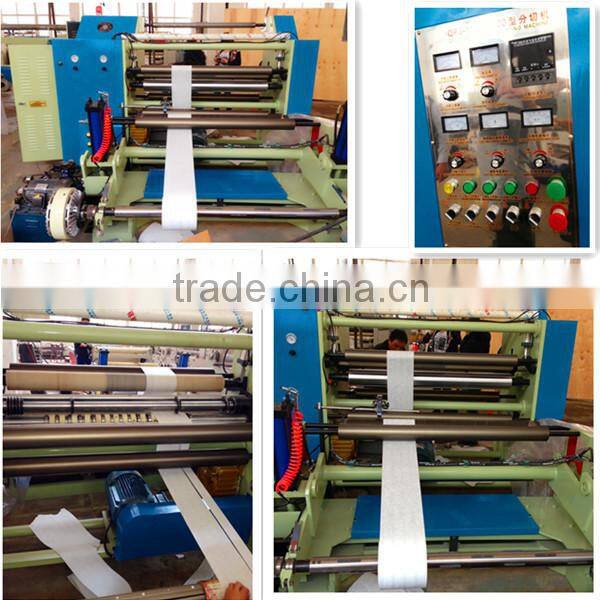

4.Machine details information show :

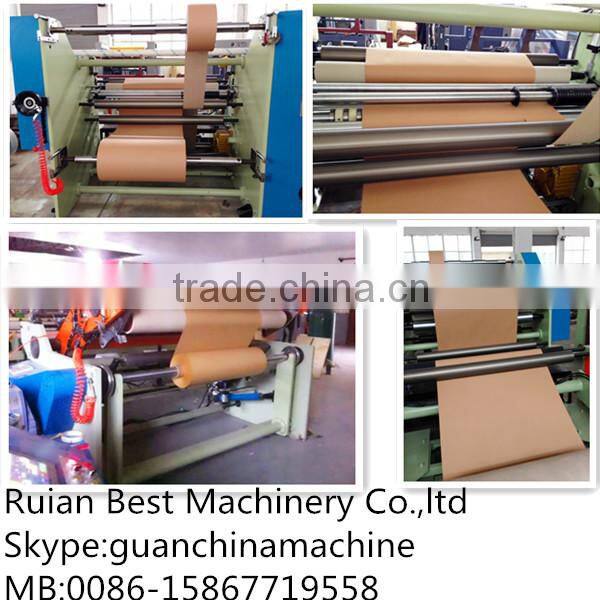

5.Factory big prodution show:



6.Related Cutting Machine Matched for Paper Cup Machine:

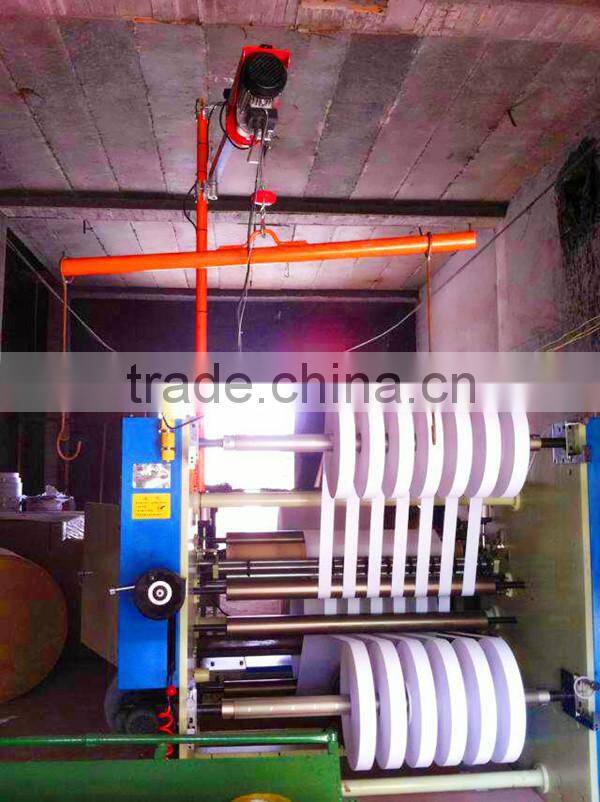

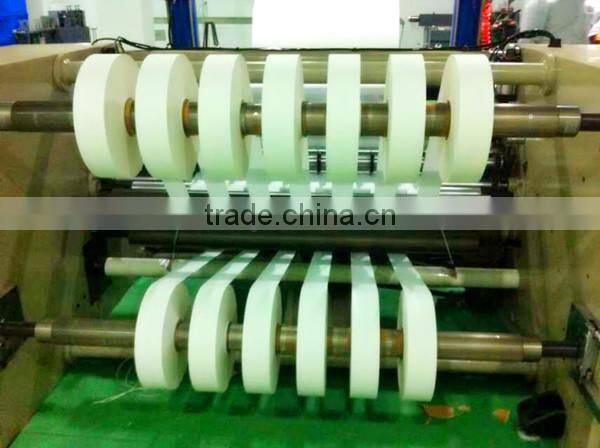

7.Slitting finish products in the machine:



8.Export Standard Wooden Box



9.Compare to other supplier , our advantages as follow :

a.We are have biggest production

b.80%of our slitting machinesare for export , so our machine is following closely to quality.

C.We have more experience for others for the moulds production .

d.delivery time fast.

F.Faithful to all of our customers.

G.Price reasonable.

11.Certificate :

Guarantee And After-sale Service

One year Gurantee for whole machine

24 hours techinical support by Email , telephoto, skype etc

Use-friendly English software,user manual and detailed videos/CD

QC Team:

More than 20 persons to check the machine's quality,every machine need 1 week to make adjustment,ensure 100% qualitative product.

Contact:

We will reply you by Email or skype. Telephone within 24 hours,

you can call us anytime if you have any problem of our production.

Shipment:

We will keep tracking with the container until clients receive it.

40HQ,40GP,20FT(LCL,FCL)

Remeber we are RUIAN BEST MACHINERY CO.,LTD , We are strive to achieve quality best , service best ! You are welcome to purchase our equipment!
