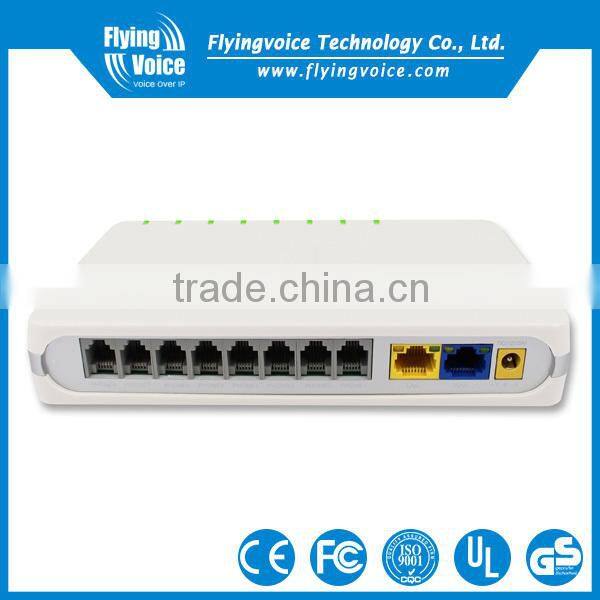

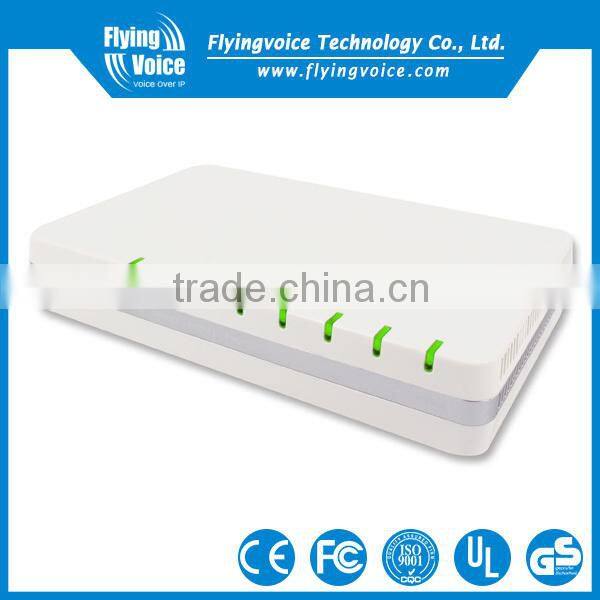

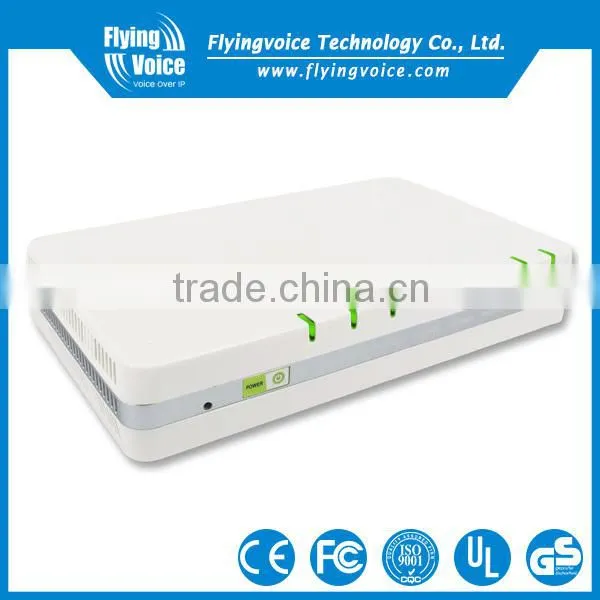

G508 8 FXS Ports VoIP Gateway OpenVPN support,telephone adaptor
Highlights:
• 2 10/100/1000M RJ45 ports (1 WAN, 1 LAN)
• 8 FXS RJ11 ports
• Real time FAX over IP via T.38 and T.30 FAX with G.711
• PESQ is above 4.4 in G.711, PESQ is above 3.7 in G.729
• Field proven compatibility and stability
• Auto-provisioning- TFTP/HTTP/HTTPs
• TR-069, SNMP
• FCC, CE, UL, RoHS certification
| Hardware Features | |
| Interface | 1 10/100/1000Mbps LAN port 1 10/100/1000Mbps WAN port 8 FXS ports 1 Power set |
| Power Supply | AC Input : 100-240v, 50-60Hz; DC Output: 12V, 2A |
| Environmental | Operation Temperature: -5~45 Degree C Storage Temperature: -25~85 Degree C Relatively Humidity: 10%~90% No Condensing Shock: Up to 75cm Drop upon package |
| Dimension | (L)180×(W)110×(H)30mm |
| Unit Weight | 140g(without package) |
| Software Features | |
| Audio Codec Features | G.711 (A-Law, μ-Law) with PAMS above 4.3 G.729A/AB with PAMS above 4.0 Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation T.30 FAX with G.711 Real time FAX over IP via T.38(Phone 2 port only) |
| Protocols | SIP V2 (RFC 3261,3262,3263,3264) Backward Compatible with RFC2543 Session Timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC1889 and RFC1890) NAPTR for SIP URI Lookup (RFC2915) STUN (RFC 3489) ARP/RARP (RFC 826/903) SNTP (RFC 2030) DHCP/PPPoE PPTP/L2TP VPN HTTP Server for Web Management TFTP/HTTP/HTTPS for Auto Provisioning DNS/DNS SRV (RFC1706 and RFC 2782) |
| Management | Firmware Upgradeable Web Management Interface IVR-driven Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning SNTP Time Synchronization Multi User Level SNMPv2 TR069 |
| Applications | NAT/NAPT Router function MAC Address Cloning DHCP Server PPTP/L2TP VPN OpenVPN PPPoE SIP proxy redundancy – dynamic via DNS SRV, A records NAT Traversal by STUN DMZ QoS with Layer 3 DHCP Client and DHCP Server IP conflict detection |
| Call Features | 3-way Conference Music on hold DTMF Relay: In-band, Out-band and SIP INFO Call Hold Call Forwarding Call Mute Call Transfer Call Waiting Speed Dial Caller ID and CWCID Hotline Real time fax over IP via T.38 T.30 FAX with G.711 Dial Plan Black List Call Log |
How to Connect G508 to the Internet ?
1) Insert one end of the Ethernet cable into the WAN port on the back panel of the G508 and the other end
of the cable to your existing broadband connection port.
2) Connect the LAN port on the back panel of the G508 to your conventional ATA using a standard ATA
cabling.
3) If need to set us a small LAN network, the G508 should work in router or bridge mode so that you or more people can access to the Internet through G508. Then you need to connect your PC or LAN connection equipment to the LAN port on the back panel of the G508 using Ethernet cable.
4) Connect the power adapter to the power port at the back panel of G508 and then plug another end of power adapter into a wall outlet or power strip. The LED of G508 will turn on to indicate operated properly.
Notice: please do not attempt to use other different power adapter or cut off supply during configuration or updating G508 IP ATA. Using other power adapter may damage G508 and will void the manufacture
warranty.
Ways to Configure G508
There are three ways to configure G508: use IVR, use provision and use WEB GUI, recommend is WEB GUI. And you can configure only some parameters through IVR, like WAN port IP address, WAN port IP mode, Subnet mask and so on. User presses **** to start IVR, and the IVR will lead you to configure. Every time you finish some changes, you may need reboot G508 to make the changes take effective. Details about IVR, please refer to G508 user manual. Provision is also a convenient way to make configurations, to get more information about provision, please refer to provision user manual. And you can configure all the parameters of G508 through WEB GUI, login to G508’s webpage, then you can begin to configure.

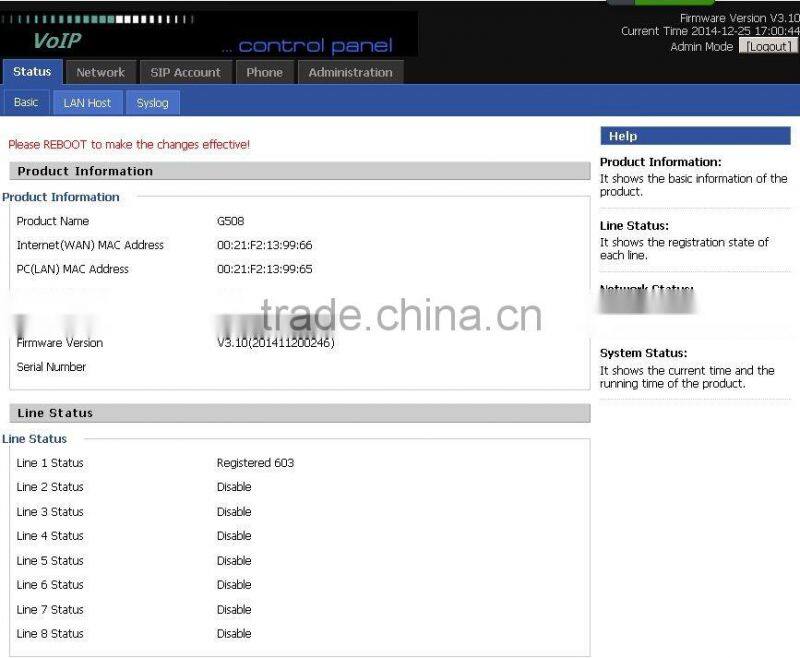

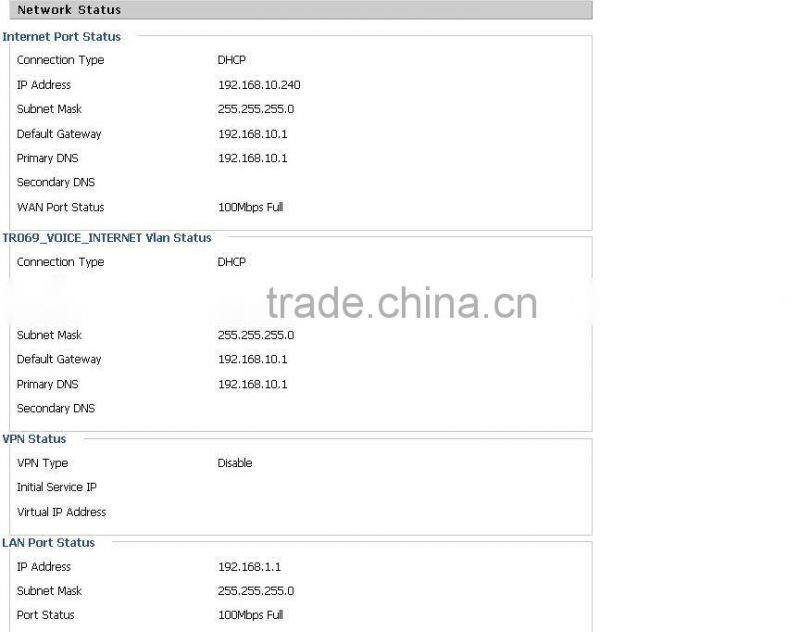

The login webpage of G508:
Application Topology
