PowerEdge M630 Blade Server

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 50 Piece / Pieces per Month
Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Products Status	Stock		Type	Blade
Max Memory Capacity	Other, Up to 1.5TB		Max Processors	2
Processor Main Frequency	E5-2600 v4 Family		Processor Type	Intel Xeon Processor E5-2600 v4 Family
Brand Name	Huawei		Model Number	PowerEdge M630
Place of Origin	China

Product Description

Company Information

1. Integrator of HP.

2. Partner of Dell and NetApp.

3. Agent of IBM, EMC, Juniper and Qlogic.

4. Professional on handling and customizing projects and IT solutions.

5. Spirit of keeping long-term business relationship.

Product Description

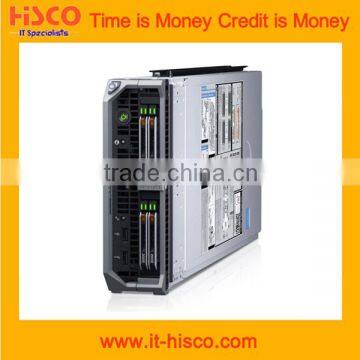

PowerEdge M630 Blade Server For Dell

Processor

Intel Xeon processor E5-2600 v4 product family. Internal interconnect Intel QuickPath Interconnect (QPI): 6.4 GT/s; 8.0 GT/s; 9.6 GT/s Cache 2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22

Operating System

Micros0ft Windows Server 2008 R2
Micros0ft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell SUSE Linux Enterprise Server
Red Hat Enterprise Linux
VMware ESX

Chipset

Intel C610 series chipset

Memory1

Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

Embedded Hypervisor (Optional)

Citrix XenServer
VMware vSphere ESXi™

Storage

Hot-plug hard drive options: PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or SAS HDD/SSD
4 x 1.8” SSD
2 x 2.5” PCIe SSD

Drive Bays

4 x1.8” SSDs, 2 x 2.5” PCIe SSD’s

Enclosure I/O Modules

Ethernet, Fibre Channel, and Infiniband

RAID Controllers

Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P

Communications

Broadcom 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox ConnectX-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height

Power

Chassis level – M1000e 2700W Platinum and 3000W Titanium PSU options

Graphics Card

Video Type :Integrated Integrated Matrox G200 with iDRAC8
Video Memory: 16 MB shared with iDRAC8 application memory

Chassis

Form factor: Half-height blade with up to 16 nodes in a M1000e chassis; up to 4 nodes in VRTX converged infrastructure
H:197.9 mm (7.8 in) x W:50.35 mm (2 in) x D:544.32 mm (21.4 in)

Management

Systems management: IPMI 2.0 compliant;
OpenManage Essentials;
OpenManage Mobile;
OpenManage Power Center
Remote management iDRAC8 with Lifecycle Controller,
iDRAC8 Express (default), iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
OpenManage Integrations:
OpenManage Integration Suite for Micros0ft System Center
OpenManage Integration for VMware vCenter™
OpenManage Connections:
Operations Manager, Tivoli Netcool and CA Network and Systems Management
OpenManage Plug-in for Oracle Database Manager

1. Reply within 3-5min, solving further questions within 12h. 7x12h online service.

2. 1-3yr warranty for different items. Supplying new replacement within 3 days after we receive the damaged item, 7x8h service.

3. Online normal technical support and service 7x12h, troubleshooting 5x9h Tec. Sup&Svi.
