5mm clear glass
- 400000 Square Meter / Square Meters per Month
- Qingdao Tianjin
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Henan, China | Brand Name: | Fuxin | Model Number: | FUXINJ0150 |
| Function: | Bulletproof Glass, Insulated Glass, Low-E Glass | Shape: | Flat | Structure: | Solid |
| Technique: | Clear Glass, Tempered Glass | Type: | Float Glass |
Product Description

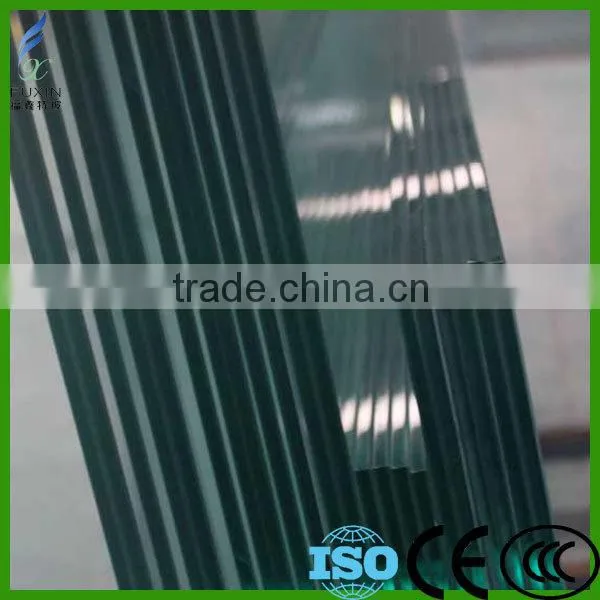

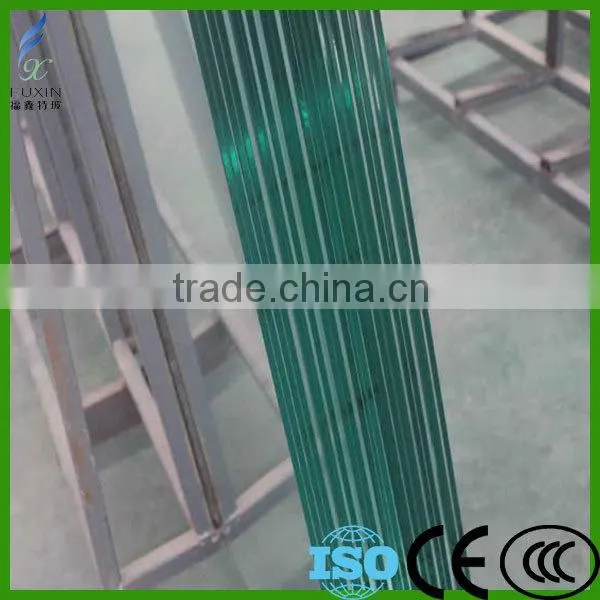

5mm clear glass
Toughened or tempered glass is a type of safety glass processed by controlled thermalor chemical treatments to increase its strength compared with normal glass. Tempering puts the outer surfaces into compression and the inner surfaces into tension. Such stresses cause the glass, when broken, to crumble into small granular chunks instead of splintering into jagged shards. The granular chunks are less likely to cause injury.
As a result of its safety and strength, toughened glass is used in a variety of demanding applications, including passenger vehicle windows, shower doors, architectural glass doors and tables, refrigerator trays, as a component of bulletproof glass, for diving masks, and various types of plates and cookware.
Product | 5mm clear glass |
Other Names | Toughed Glass/Safety glass |
Specification | Flat Tempered Glass Max size 3300mm*16000mm Min size 300mm*100mm Curved Tempered Glass Min curved radius 450mm Arc of length: Max 2400mm Min300mm Height: Max 3660mm Min300mm |
Authentication | CCC (China Compulsory Certification) ;BS EN14179-1:2005/BS6206:1981; CE EN12150-1:2000: GB/T19001-200idtISO9001:2000 |
Construction Use | Glass Door, Curtain Wall Partition, Elevator, Showcase |
Household Use | Sanitary glass, Cabinet, Furniture glass. |
Color | Clear, Ultra Clear, Various Green, Blue, Gray, Brown. |
MOQ | 20’ FCL |
Delivery Time | About 15-20days |
Payment | By T/T,D/L |
Packing | Seaworthy plywood case lined with plastic film and outer packing consolidated by iron strap. |
Others | The thickness, size, color can be customer design. |
Tempered Glass (Regular thickness& approximate container loading capacity)
| Container | 1X20GP | 1X40GP | 1X40GP |
| Loading capacity | 17.5T | 22.5T | 22.5T |
Thickness | Kg/m² | Square meter | Square meter | Square meter |
3mm | 7.5 | 2240 | 2840 | 2840 |
4mm | 10 | 1680 | 2130 | 2130 |
5mm | 12.5 | 1344 | 1704 | 1704 |
6mm | 15 | 1120 | 1420 | 1420 |
8mm | 20 | 840 | 1065 | 1065 |
10mm | 25 | 672 | 852 | 852 |
12mm | 30 | 560 | 710 | 710 |
15mm | 37.5 | 448 | 568 | 568 |
19mm | 47.5 | 354 | 448 | 448 |
Note | All the above data is just for your reference
| |||
Fuxin glass’s Advantages
1.Five times more resistant to breakage than normal glass
2.If the glass does break, there is far less risk of injury from broken pieces.
3.More opportunity for large areas of glazing without substituting your safety, including designs such as doors, showers, screens table tops and so on.
4.Sizes are produced as per customer request. Once tempered, can not be cut down.
Production workshop
1.putting pearl wool between glass.
2.strong wooden crates with steel banding for export
3.Good relationship with shipping Co.
4.Professional team of export wooden box production.
Henan Fuxin Group is professional supplier of glass of processing.it covers an area of 10,000 square meters,200 employees.
Our main products:Tempered Glass(Toughened Glass) laminated glass,insulated glass,Low-e glass,fire proof glass,bulletproof glass,ceramic frit laminated glass,Security Glass,Decorative glass,silk printing glass ,hardware fitting of glass installation,Aluminum profile etc.Max Size:3300mm×16000mm.Min Size:300mm×300mm.and provide service of glass installation solution.
Looking forward to build great relationship with you.
1, What are your main products?
Tempered Glass(Toughened Glass) laminated glass,insulated glass,Lowe glass,fire proof glass,bulletproof glass,ceramic frit laminated glass,Security Glass,Decorative glass,silk printing glass ,hardware fitting of glass installation,Aluminum profile etc.
2,Can you provide what size of glass?
Max Size:3300mm×16000mm,Min Size:300mm×300mm.
3,Can you provide what thickness of flat glass?
3mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm,22mm.
4,Can you provide what kind of film and thickness?
PVB Film:0.38mm.0.76mm.1.52mm.2.28mm.SGP Film:0.89mm,2.28mm.
5, What is the payment method?
T/T,L/C
6, How long is the delivery time ?
10~20days.
