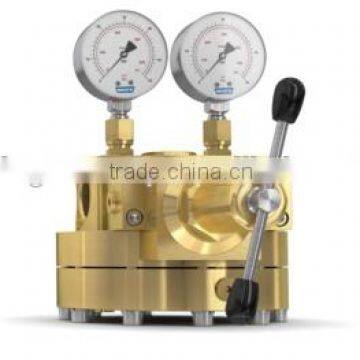

Universal Dome-loaded Pressure Regulator for Medium to High Flows

Powerful and low-maintenance Dome Pressure Regulator applicable for mounting in pipeworks.

Benefits:
high pressure stability even when subject to fluctuations in withdrawal enables process reliability
Pilot Control Tube (PCT) for particularly high constant outlet pressure
applicable for almost all gases
accurate dynamic regulation
high flow rate
Balanced Seat Design (BSD) for better control precision
complete mounted, inclusive pressure gauge, pilot pressure regulator and fittings
working pressure changable at any given moment (readjustable) - e.g. due to temperature fluctuations
provides constant working pressure by dynamic control
no disperse of pilot gas to the environment - closed system
pressure gauges optionally in stainless steel and/or filled with glycerine
indoor and outdoor installation
additional connections (G 1/8 F) in the inlet and outlet range - e.g. pressure transmitter
connection for wall mounting panel
easy installation and removal

Options:
control via electrical proportional valve
piloting by foreign gas available
wall mounting panel
filter

Operation / Usage:
Dome pressure regulator are especially suitable for process supply in pipe-works and system engineering.
Independent of withdrawal fluctuations the stability working pressure guarantees a constant gas concentration and quality of the down stream processes.
Additionally the use in case of high flow rates at low pressure drops is recommended.

Function:
The dome pressure regulator is used in combination with pilot pressure regulator.
