Specifications

dual axis tilt control sensor1.Dual-axis Voltage-type
2.Long term stability<0.1degree
3.IP65
4.DC5V power supp(7-36Voptional)

clinometer sensor digital clinometer sensor car sensor



General Description:

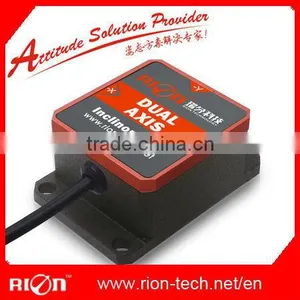

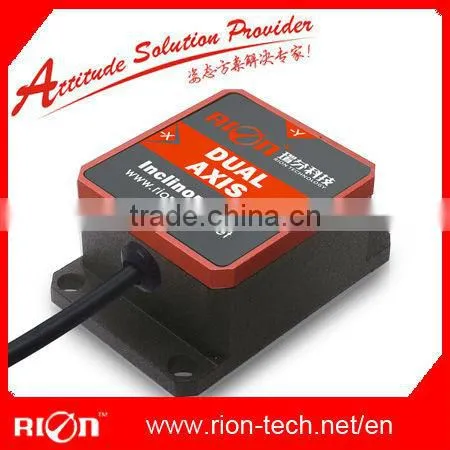

LCA320 dual axis tilt control sensor is researched and produced by China RION Technology. The product has Dual axis structure, horizontal mounting. The measuring range is ±90 degree. It outputs analog voltage. Entirely industrial parts of device, stable and credible performance., As the built-in newest MEMS production technology, To make this size only: L29mmXW24mm, This product can be used in measuing angle in the field of mining machinery, mechanical arm, Electric blind man chair leveling, Four - wheeled positioning, etc.



Features:
1:Dual-axis inclinometer
2:0~5V Voltage output

3:Measuring range:±1-±90(degrees)
4:Long term stability<0.1(degrees)
5:DC5V power supply(7-36Vcustomizable)
6:Wide Temperature-40~+85(degrees celsius)
7:Shockproof>3500g

8:Resolution0.01(degrees)
9:Full Metal Jacket,IP65 protection
10:small size(55*37*24mm)



Applications:

1:Engineeringmechanical measurement of dip angle
2:Mining mechanism,oil-well drilling equipment
3:Chassis Measurement
4:Electric blind man chair leveling
5:Wheel Alignment
6:Satellite positioningSearch
