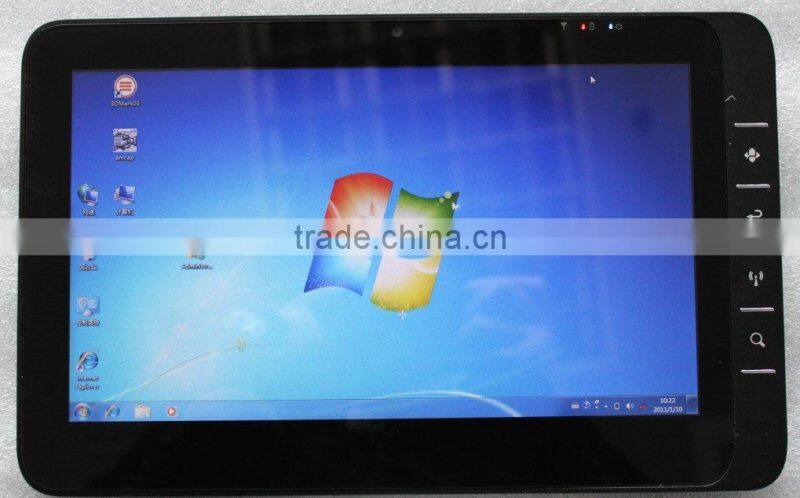

Teso Super Thin Capacitive Multi-Touch Panel X86 Tablet pc L10 Pro,3G, Windows7 and Android2.2 Double System,Meego

Specifications

 Teso tablet pc

Super Thin

Capacitive Multi-Touch Panel 1280*720(1366*768optional)

Support 3G,

windows7&Android2.2 double system,support Meegoo

First X86 tablet pc L10 Pro manufacturer

OEM supplier of Famous Brand in Europe

Key features

LCD Screen  10.1” TTL Interface Capacitive Multi-Touch Panel 1280*720

CPU              Intel N455 1.66GHz

Memory Ram DDR3 1333 1GB/2GB

SSD               32G/64G SSD

Graphic Card Intel GMA3150 Integrated

3G               Built In SIM card socket,support WCDMA,EVDO,TD+CMMB

Other Function WIFI,  Bluetooth,

                  Micro-SD Card socket(32g Micro-SD)

                  1.3M Pixels Webcam

O.S.          Support Windows7, Android,Meego&double O.S.

Standby Time  6hours

L10 Thickness 14.5MM,Super thin

Specification:

Processor and Core logic

CPU :  Intel N455 1.66GHz/512K /Single Core /GFX 200MHz/TDP 6.5W

Core Logic:  Intel NM10 Express Chipset

Display

•  Intel Generation 3.5 Integrated GMA3150 (133MHz)
•  10.1 screen 16:9 inch TFT LCD (1280*720)( 1366x768 optional)
•  TTL Interface  Capacitive Multi-Touch Panel

System Memory

• Support  DDR3  1333MHz
• One SO-DIMM slot support up to 2GB momory

Storage:

• Support 16G/32G/64G SSD( SATA interface)
• Support Card reader, Micro-SD

Keyboard and Pointing Device

• Touch keyboard (USB soft Keyboard with Bag Optional)
• Support Single/Multi Capacity Touch screen

I/O Ports

• Audio port: One Jack(Headphone out & Built in MIC in )
• USB port: Two USB2.0 Ports
• Power port: One DC-In Port
• Video Port: One Mini-VGA Port

Slot

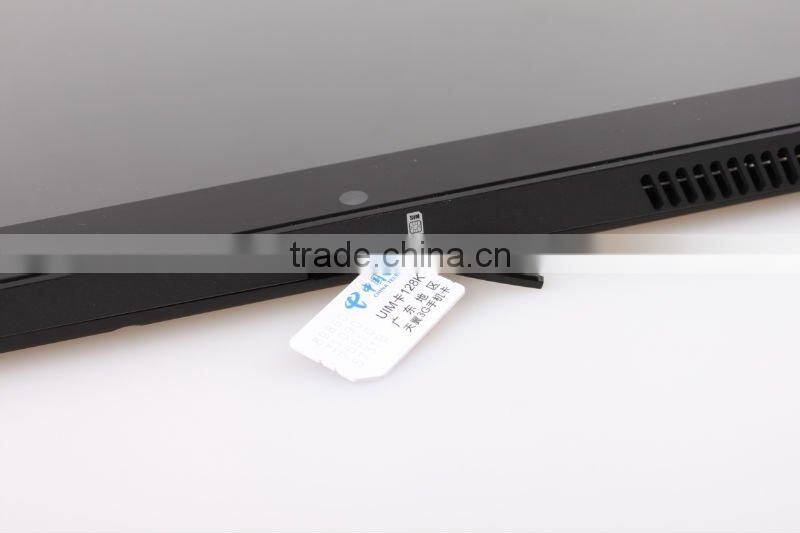

• SIM Card: One
• Card Reader: Micro SD

Power System

• Battery Li-Polymer Pack, 10.8V/4200Amh(35Wh) Battery life:4hrs~6hrs
• 110~240V, DC 19V 2.1 A@ 40W AC Adapter

Power Management

• ACPI V2.0
• S0, S3, S4, S5 support

Card reader

• Card reader: Micro SD

Switch Control(touch)

• Home
• ESC
• Wireless Button Switch
• Sleep model

Option Items

• Bluetooth: V2.1+EDR   WIFI:8012.b/n/g
• 3G: / WCDMA  EVDO
• Stylus pen (tooling reserve)

Feature

• One Mini PCI-E interface, 2 Antenna, Support 802.11 B/G/N, Half Size (SDIO)
• Audio: HD Audio, Built-In 2 Speaker(Internal Microphone) (1.5W*2)
• G- sensor: Visual rotation
• Camera: 1.3M Pixels (only front side for video )

LED Indication

• Power LED
• Battery Charge LED
• Wireless LED

Certification

• CCC
• CE
• ROHS

OS: Support Windows 7&Android DOuble OS , Meego

Weight and Dimension

• 275×170×14mm
• N/W: 725g (including RAM, SSD, Battery pack)
