Good Price Linear and Angular Motion Measurement IMU with a Triad of Gyroscopes And Triad of Accelerometers

1pcs/box

Specifications

Linear and Angular Motion Measurement IMU
1.Low noise
2.Light weight
3.Low cost
4.Wide working temp.

Good Price Linear and Angular Motion Measurement IMU with a Triad of Gyroscopes And Triad of Accelerometers



parameters	Condition
Gyro range(°/s)	+-50	+-150	+-300
Accelerometer range	+-2	+-8	+-40
Gyro measuring axis	X, Y, Z (optional)	X, Y, Z (optional)	X, Y, Z (optional)
Accelerometer measuring axis	X, Y, Z (optional)	X, Y, Z (optional)	X, Y, Z (optional)
Output rate(Hz)	100	100	100
Resolution (°/s)	0.1	0.1	0.1
Annual scale factor stability	300(<1000)	300(<1000)	300(<1000)
Scale factor temp. Coefficient(ppm/°C)	100	100	100
Gyro nonlinearity	0.1% of FS	0.1% of FS	0.1% of FS
Accelerometer nonlinearity	<0.1	<0.5	<0.6
Temp. Compensation	Full temp. range	Full temp. range	Full temp. range
Temp. Drift(°/s)	<+-0.2	<+-0.1	<+-3
Starting time(ms)	5	5	5
Current(mA)	70	70	70
Work temp.(°C)	-40~+85	-40~+85	-40~+85
Storage temp.(°C)	-55~+100	-55~+100	-55~+100
Capacitive load(Pf)	1000	1000	1000
Vibration(g)	5~10	5~10	5~10
Shock(g)	200g pk, 2ms, sine	200g pk, 2ms, sine	200g pk, 2ms, sine
Working life	11 years	11 years	11 years
Output signal	RS232/RS485/RS422/TTL/SPI
MTBF	>50000hr/time
IR	>100mge
Shock resistance	100g@11ms, 3times/axis(half sinusoid)
Resustabce to vibration	10grms, 10~1000Hz
Water proof	IP67
Connector	5 pins air-plug, matched with 1m cable
Weight(g)	110(excluding cable)



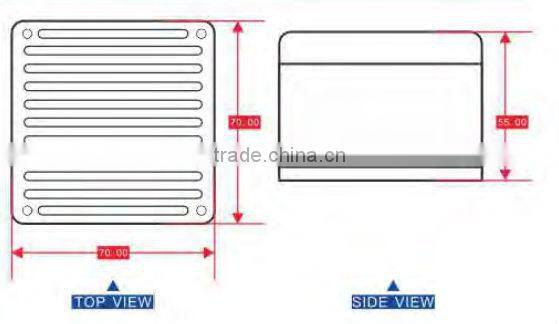

Description

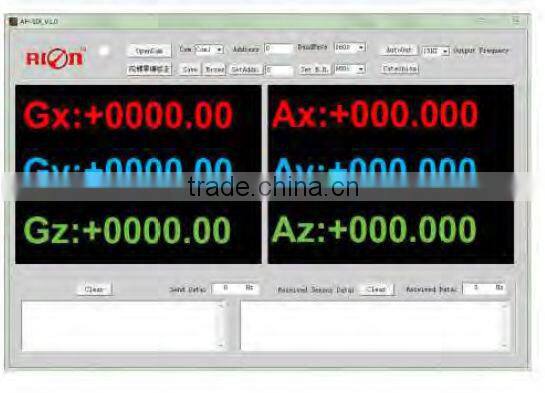

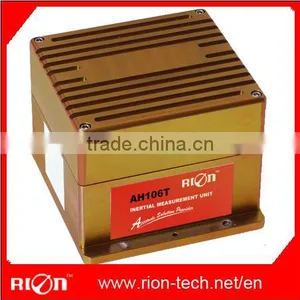

AH106B is a MEMS developed high accuracy six free degree inertial measurement unit. It consist of 3 axis MEMS gyro, 3 axis MEMS accelerometer,. 3 axis gyro is to measue absolute anglular speed in 3 directions of subject, it will output angle data proceed by RION’s patented technology. It could measure horizontal angle, the gyro drift is less than 0.5 deg/hr. 3 axis accelerometer is to measuring acceleration in 3 directions. It is main role to sense the horizontal inclination and to ammend the pich and roll drift of gyro. With internal 24 AD signal processor, it could proceed noise reduce, temperature compensation, non-linearity calibration and cross coupling compensation in full temperature range(-40 deg to 85 deg). AH106T miniature six axis AHRS module could apply widly in Model aircraft unmanned aerial vehicle, robot, camera pan-tilt-device system, antenna pan-tilt-device system, underwater equipement, vitual reality, body motion ananlysis and kinds of equipments require low cost and high dynamic 3D attitude measurement.



Features

• Low noise
• Light weigth
• Compact and light weight design
• Longevity of service
• Strong stability
• Output 3 axis acceleration & 3 axis gyro
• Wide temperature range
• DC9~36V power supply
• Low vibration performance excellence
• Up to 100 Hz update rate
• RS232/RS485/TTL output optional

• Packaging: carton with sponge
• Delivery time: within 30 business days for common order after we receive the full payment
• Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.
