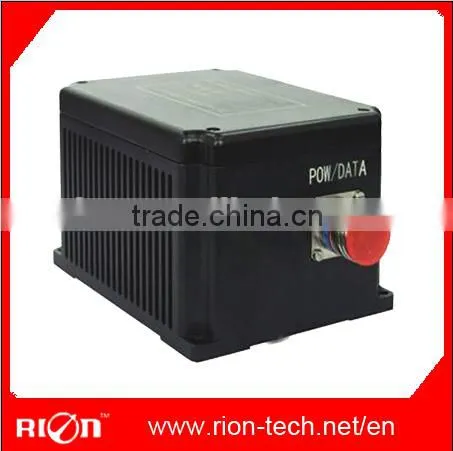

Use High Reliable and Quality Quartz Accelerometer and Fiber Optic Gyroscope Inertial Measurement Unit IMU300

1pcs/box

Specifications

Inertial Measurement Unit
1. High performance
2. Vibration and EMI resistance
3. Stable & reliable
4. Full compensated



Technical info:



Physical	Size		Configuration (L×W×H)	151×120×101 mm
			Installation (L×W)	140 × 110 (4-Φ5.5)
Power	Voltage			9~36 VDC
	Power Consumption			< 12 W
Activation Time				<3s
Gyroscope	Bias Drift at Fixed Temperature			0.5 deg/h
	Bias Drift at Changing Temperature (-45°C ~70°C)			<2 deg/h
	Bias Repeatability			0.5 deg/h
	Scale Factor Non-linearity			200 ppm
	Scale Factor Repeatability			200 ppm
	Bandwidth			>100 Hz
	Resolution/Threshold			0.3 deg/h
	Alignment			< 1´
Accelerometer	Bias			0.5 mg
	Bias Stability			0.1 mg
	Bias Repeatability			0.1 mg
	Scale Factor Non-Linearity			300 ppm
	Scale Factor Repeatability			300 ppm
	Resolution/Threshold			0.1 mg
	Bandwidth			> 100 Hz
	Alignment			< 1 ´
Operating Range	Angular Rate			±300 deg/s
	Acceleration			±10 g
	Output Rate			100 Hz @ 115200  Baud rate
Reliability(predicted)				10 Kh MTBF
Input/ Output				RS232/RS422
Environmental		Operational Temperature		-45°C ~ +60°C
		Storage Temperature		-50°C ~ +70°C
		Vibration		6 g @ 20~2000 Hz
		Shock		40 g, 11 ms, 1/2 Sine

Features

• Full temperature compensated via testing data from -45°C ~ +70°C for zero point, SF
• Rugged design to protect against the harsh environments
• Vibration and EMI resistance

Application

• Aviation
• Antenna Stabilization
• Vehicle Guidance and Control
• GPS Augmentation
• Attitude Reference
• Marine Dynamics
• Mining and Auto-farming
• Train & Container Tracking
