Deep sea remote key star GENERATOR CONTROLLER DSE501K

FOB Price

USD $50 - $60 / Piece

10 Pieces(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Fuzhou / Xiamen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Chengfeng
Model Number	DSE501K	Usage	SVC
Phase	Three Phase	Current Type	DC

Product Description

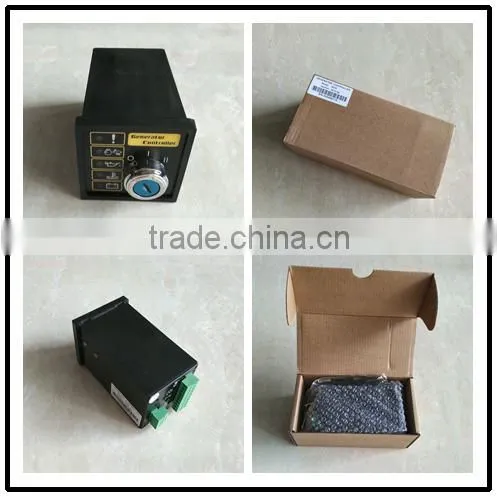

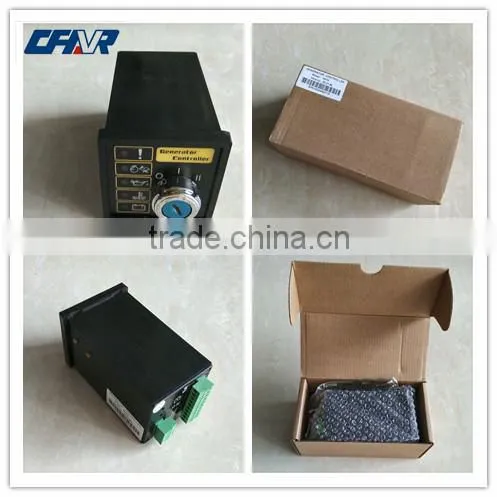

Deep sea remote key star GENERATOR CONTROLLER DSE501K:

Product Description

DSE501K is a Manual Engine Control Module, which has been designed to manually control the engine via a key switch on the front panel. The module is used to start and stop the engine, indicating fault conditions; automatically shutting down the engine and indicating the engine failure by LED giving true first up fault annunciation.

1) SPECIFICATION:

A. DC Supply----9~33V continuous.

B. Alternator Input Range----15~305V AC RMS

C. Alternator Input Frequency---- 50~60Hz at rated engine speed.

D. Magnetic Input Range----0.5V~+/-80V

E. Magnetic Input Frequency----2300Hz~6000Hz

F. Start Relay Output----16 Amp DC at supply voltage

G. Run Relay Output----16 Amp DC at supply voltage

H. Alarm Output----1Amp DC at supply voltage

I. Operating Temperature Range----- -30~70celsius

2)TECHNICAL DATA:

Power Supply	9 to 33 Vdc Continuous
Cranking Dropouts:	Able to survive voltage dips during cranking. Without The need for internal batteries.
Alternator Input Range	15 - 305 V AC RMS
Alternator Input Frequency:	50 - 60 Hz at rated engine speed
Magnetic Input Range	0.5 V to +/- 80 V
Magnetic Input Frequency	2300Hz to 6000 Hz at rated engine speed
Start Relay Output:	16 Amp DC at supply voltage
Run Relay Output:	16 Amp DC at supply voltage
Alarm Output	1 Amp DC at supply voltage
Operating Temperature Range:	-30 to +70°C

Packaging & Shipping

Packaging: Standard Carton Packing

Payment Terms:

1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.

2.All major Credit cards are accepted through secure payment processor ESCROW.

Shipment Terms:

1. We Ship to Worldwide, except APO/FPO

2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.

Our Services

1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.

2.Started export since the year of 2008,with quick response to serve the oversea customers

3.Have already passed the strict quality inspection of ISO9001:2000 quality management system

4.Strong R&D Team to design and test products

5.Professional designers and technicians to provide technical assitance

6.Strict quality control process with strict standards

7.Strong installation consulting support

8.Quick after-sale technical advice and guidance
