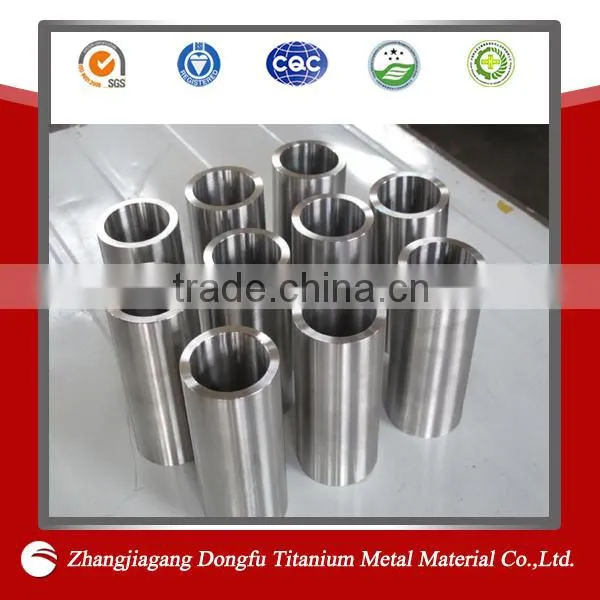

Titanium pipe for aircraft from manufacturer
- 10000 Kilogram / Kilograms per Month
- Shanghai for titanium tubes
- T/T Credit Card
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Dongfu | Model Number: | titanium tube |
| Material: | titanium | Outer Diameter: | 5-104mm | Length: | ≤9000mm |
| Standard: | ASTM | Application: | Industrial,medical,condensers,etc | Technique: | Seamless |
| Grade: | titanium, Pure titanium and titanium alloy gr1,gr2,gr5,gr9,gr12 | Wall Thickness: | 0.2-10 mm | Inside Diameter: | 4-104mm |
Product Description
Titanium pipe for aircraft from manufacturer
Table 1 detailed information
Production Name | titanium tube |
Grade | Gr5Gr7Gr9Gr12 |
Size | 8-40*0.5-1.0*4000mm |
Standard | ASTM B337 ASTM B338 ASTM B861 ASTM B862 |
Supply status | M |
Application | environmental protection equipment cooling pipe titanium heat pipe Electroplating equipment ring precision instruments |
Feature | High corrosion resistance low density, good thermal stability |
Packing | Wooden case as outside,plastic bag as inside,or standard export packaging |
Min Order | 50kg |
Payment terms | L/C T/T Western Union,etc |
Delivery time | 10—30days according to the quantity and process of the product |
Quality And test | Strict test is indispensible,because we must insure our clients get the best product |
Table 2 seamless titanium tube and weld-rolled titanium tube
category |
Seamless titanium tube |
Weld-rolled | |||
OD<15 |
OD>15 | OD | |||
WT<2.0 | WT>2.0-4.5 | 0.5-0.8 | >0.8-2.0 | ||
Length(mm) | 500-4000 | 500-9000 | 500-6000 | 500-800 | 500-5000 |
Table 3 weld titanium tube
category | Weld titanium tube | ||
WT 0.5-1.25 | WT > 1.25-2.0 | WT >2.0-2.5 | |
Length(mm) | 500-15000 | 500-6000 | 500-4000 |
Table 4 tolerance
OD (mm) | The OD tolerance | The WT tolerance |
>6-25 | +0.10 |
+10% |
>25-38 | +0.13 | |
>38-50 | +0.15 | |
>50-60 | +0.18 | |
>60-80 | +0.25 |
| weld titanium pipe OD and WT list | |||
| DN | OD | WT | Length |
| 65-100 | 76MM-114MM | 2-6mm | up to 6000MM |
| 125-210 | 133MM-219MM | 2-10mm | |
| 250-550 | 273MM-559MM | 3-15mm | |
| 600-1200 | 610MM-1220MM | 4-28MM | |
Widely used | |
Titanium bar | ASTM B348, GOST26492-85,GB/T2965 |
Titanium sheet | ASTM B265, GOST 22178-76,GB/T3621 |
Titanium tube | ASTM B337/338/861/862, GOST 22897-86,GB/T3624/3625 |
Titanium wire | ASTM B863,AWS A5.16, GOST 27265-87,GB/T3623 |
Chemical Requirements
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni |
Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / |
Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / |
Gr 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / |
Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / |
Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / |
Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 |
PACKING
1. Wooden case, free of fumigating;
2. Steel pallet + wooden case (above 1 ton/case);
3. Available upon the client's request.
SHIPPING
1. Air express (FedEx, UPS, DHL & EMS);
2. Air transport;
3. Sea transport;
4. Sea-land transport.
1. OEM service, MOQ 1 piece acceptance
2. Satisfy your required material tests
3. Effectiveness: Enquiries and questions shall be solved with 24 hours
4. Expertise: Devoted to Nonferrous metals of titanium, nickel, zirconium pipe, fittings for years.
5. Facilities: The machines and tools are made for Ti, Ni, Zr pipe, fittings processing.
6. The authorized third party products approval
7. Fast manufacturing time, delivery.
FAQ:
We need below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
If you have any interests, please don't hesitate to inquiry.
We welcome the sample order. Thank you.
