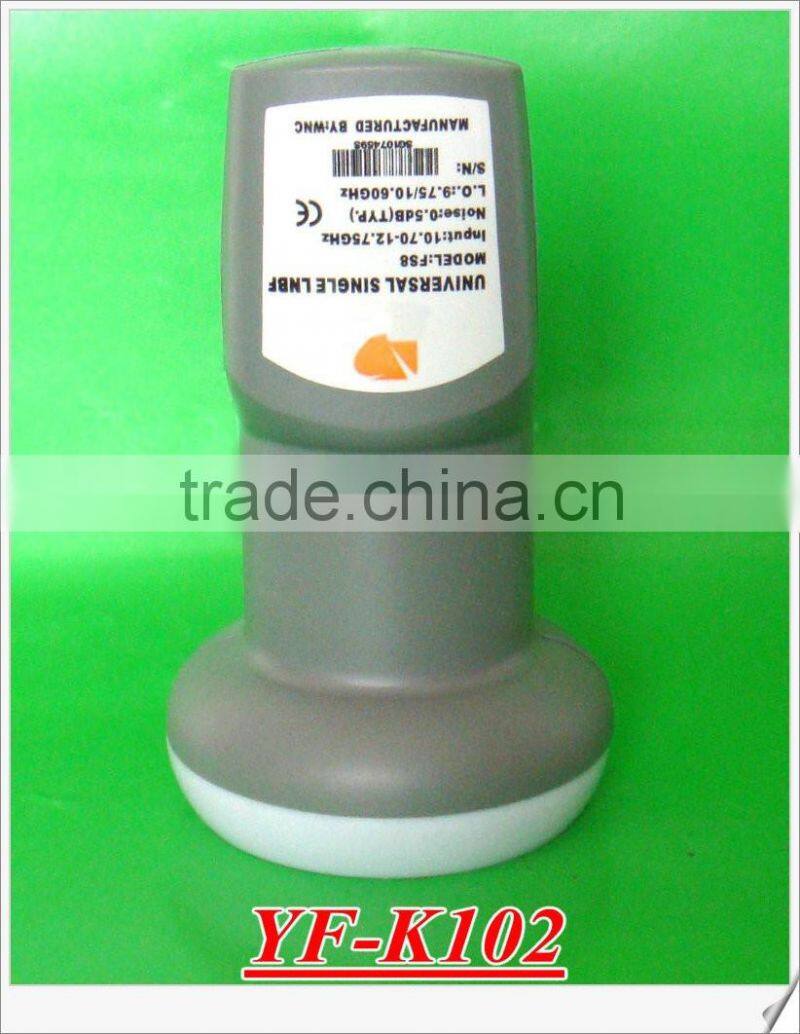

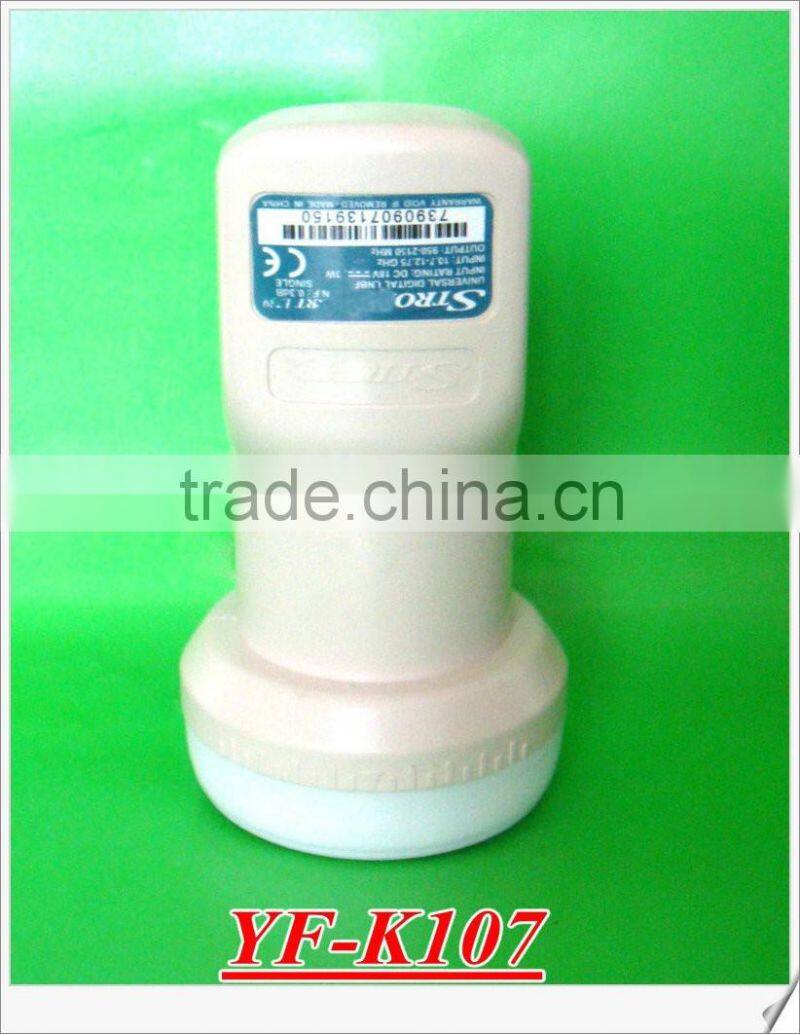

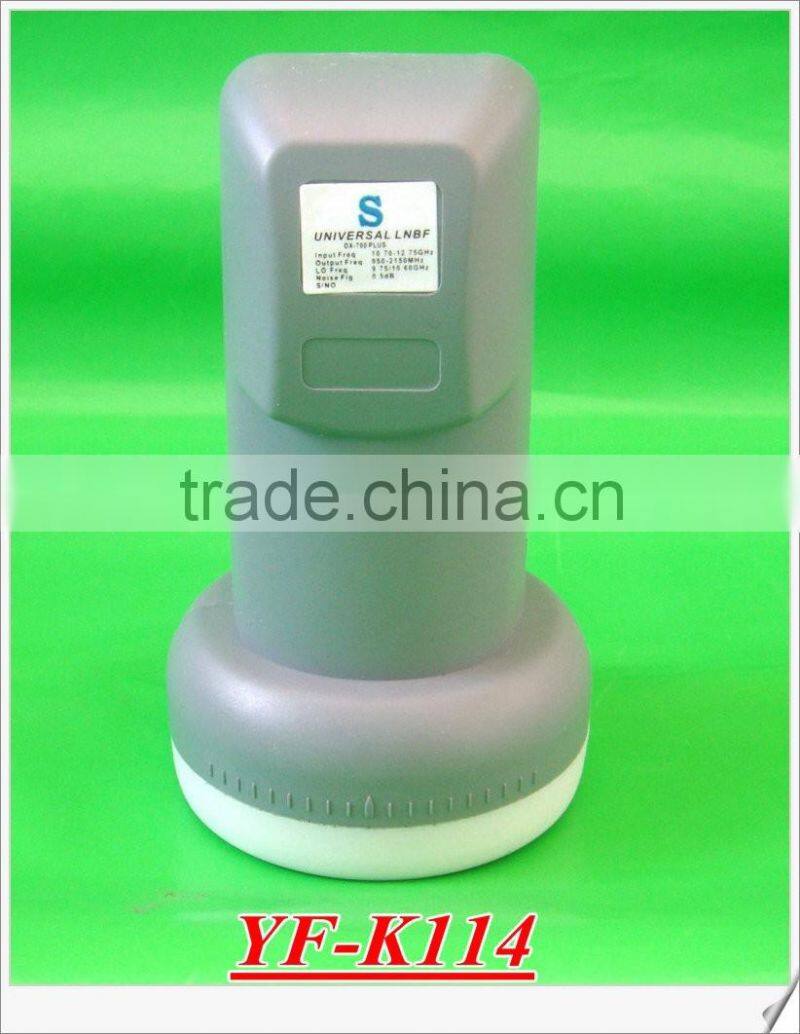

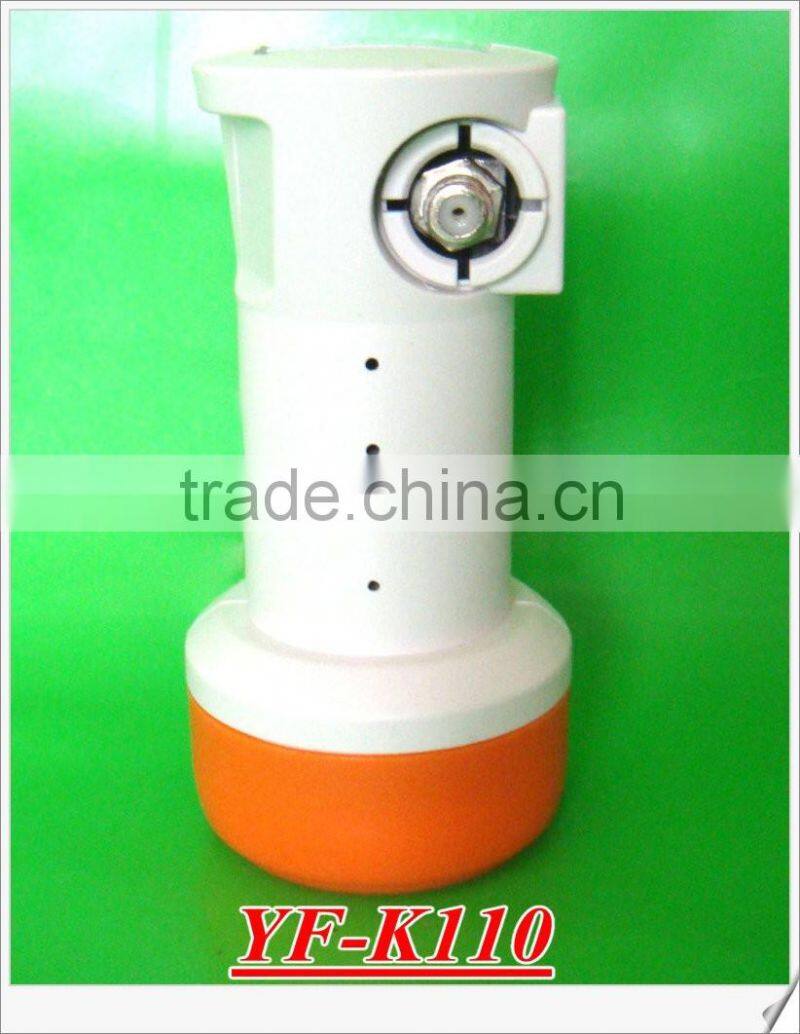

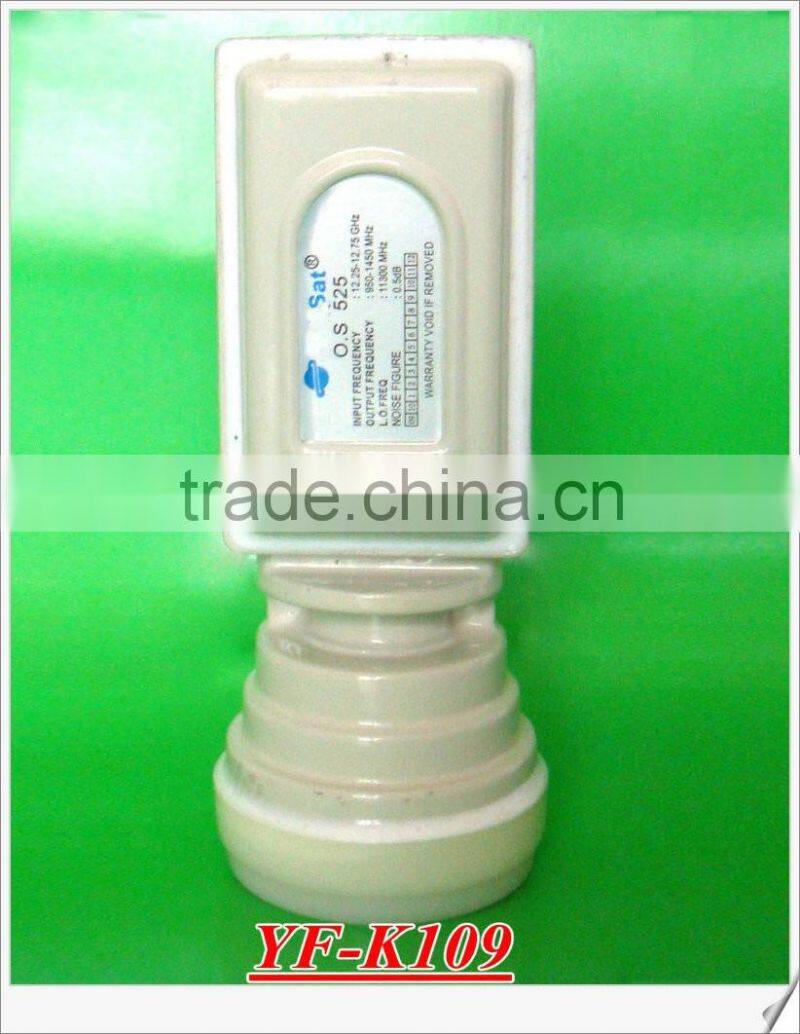

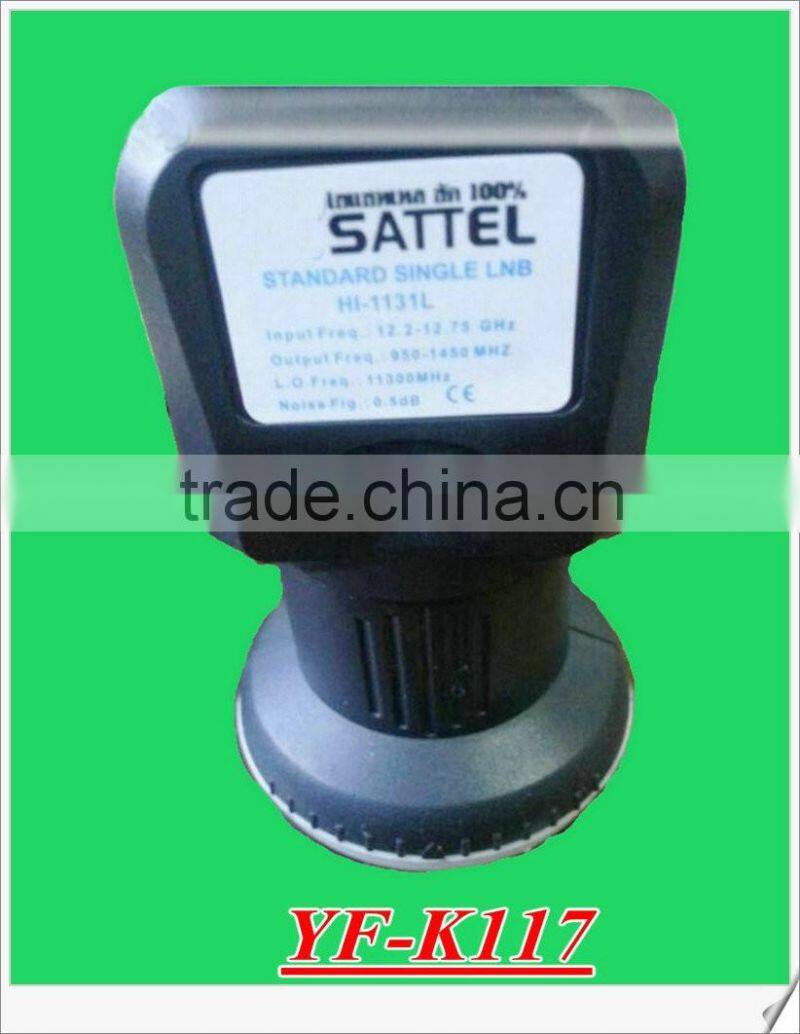

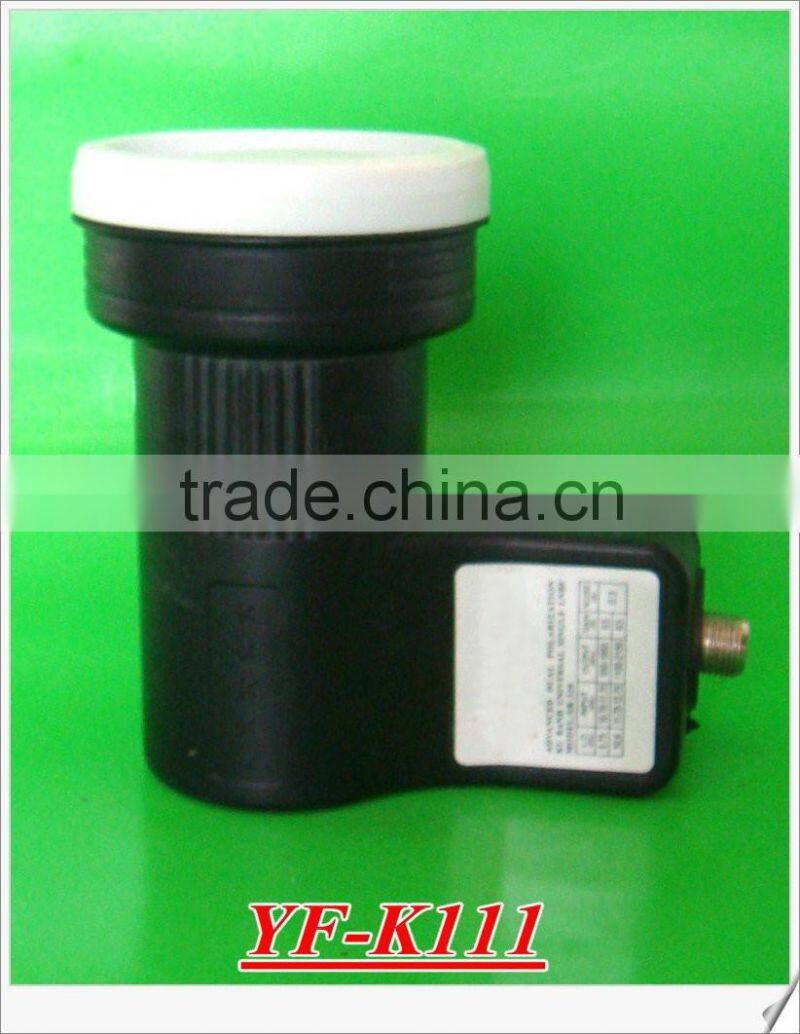

Circular Lnb KU Band

Name: Circular Lnb KU Band
Brand: YF / OEM
SKU: 124714313
Availability: InStock

Shenzhen YF Enterprise Co., Limited

US$ 1 - 1.85 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YF / OEM

Model Number:

KU single LNB

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YF / OEM

Model Number KU single LNB

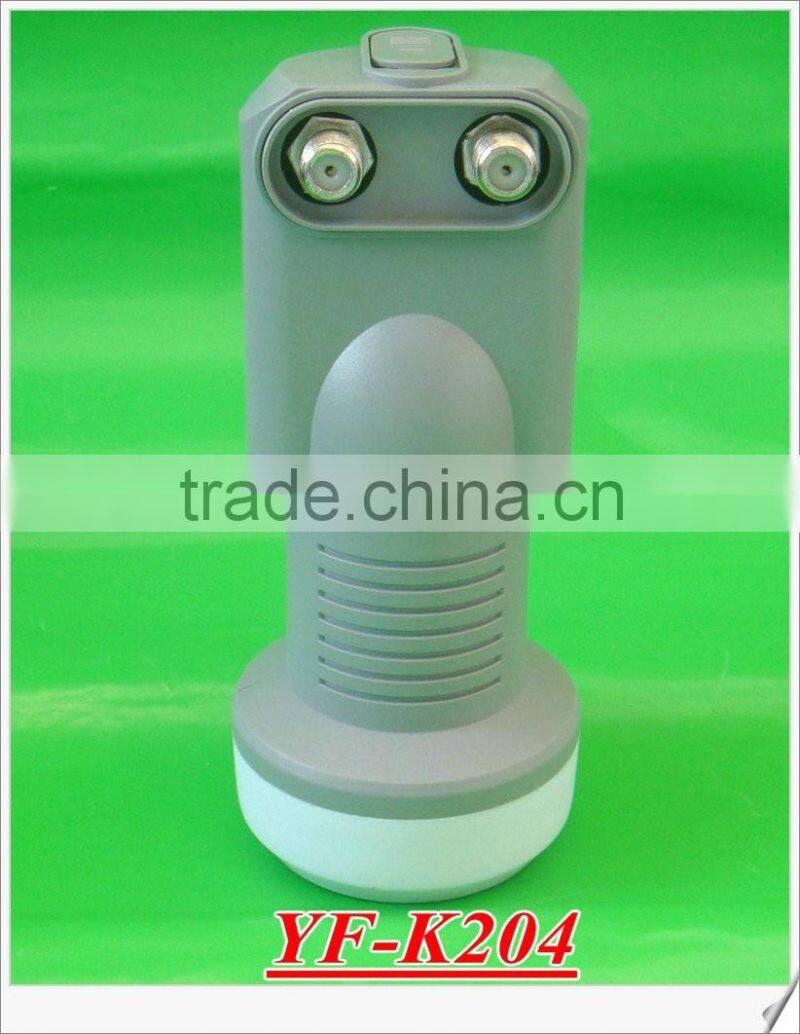

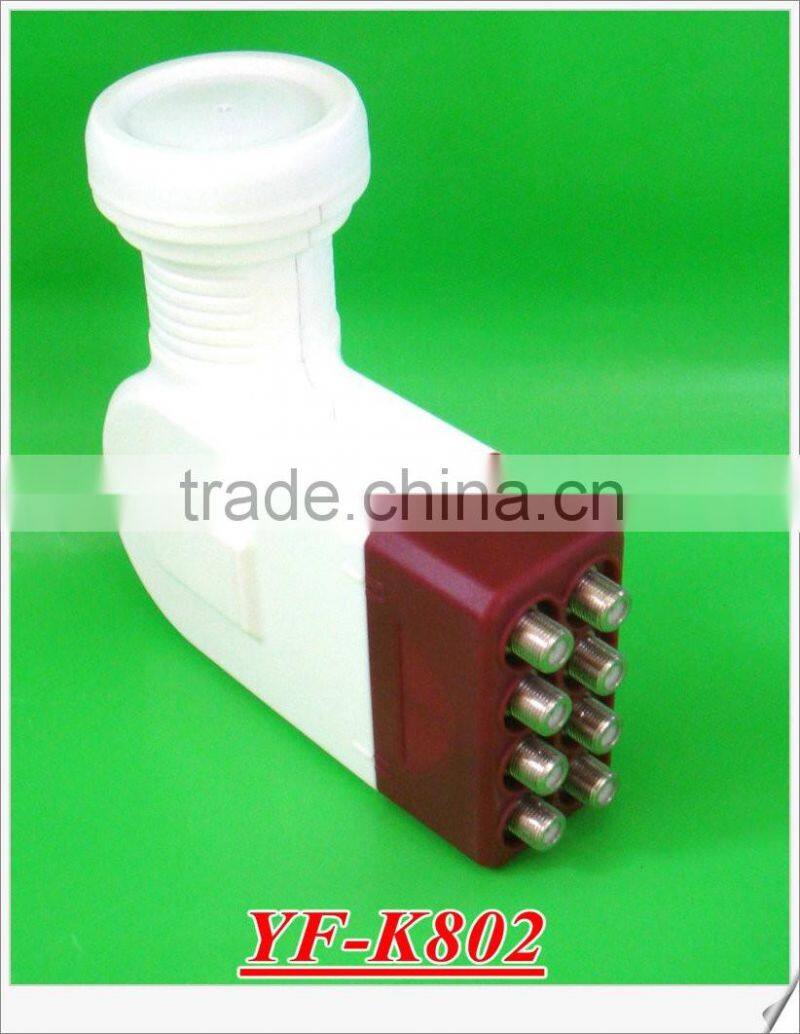

KU band universal single,twin (double) ,quad ,Octo LNB ,HD LNBF factory

WeChat/Whatsapp: +8615869301566

Skype: dingdingfengfeng

Specifications

Input freq. range:
- Low band: 10.70 to 11.80GHz
- High band: 11.70 to 12.75GHz
L.o. frequency:
- Low band: 9.75GHz (1MHz @ 25 degree Celsius)
- High band: 10.60GHz (1MHz @ 25 degree Celsius)
L.o. stability:
- Low band: 2MHz (-40 to +70 degree Celsius)
- High band: 2MHz (-40 to +70 degree Celsius)
Output freq. range:
- Low band: 950 to 2050MHz
- High band: 1100 to 2150MHz
Control signals:
- Low band: Ca or Cb (see below)
- High band: Ca and Cc or Cb
Noise figure: 0.7dB typ.
Conversion gain: 55dB typ.
Input VSWR: 2.5:1
Output VSWR: 2.0:1 (max.)
Output connector: F-female connector
Output impedance: 75 ohms typ.
Cross polar isolation: 20dB (min.)
Image rejection: 45dB
Phase noise:
-50dBc @ 1KHz
-75dBc @ 10KHz
-95dBc @ 100KHz
Supply voltage:
- Ca: 11.5 to 14.0V (vertical polarization)
- 13 VDC typ.Cb: 16.0 to 19.0V (horizontal polarization)
- 18 VDC typ.
- Cc: continuous 22KHz
Operating temperature: -40 to +70 degree Celsius
Storage temperature: -40 to +80 degree Celsius
Relative humidity: 0% to 95%
