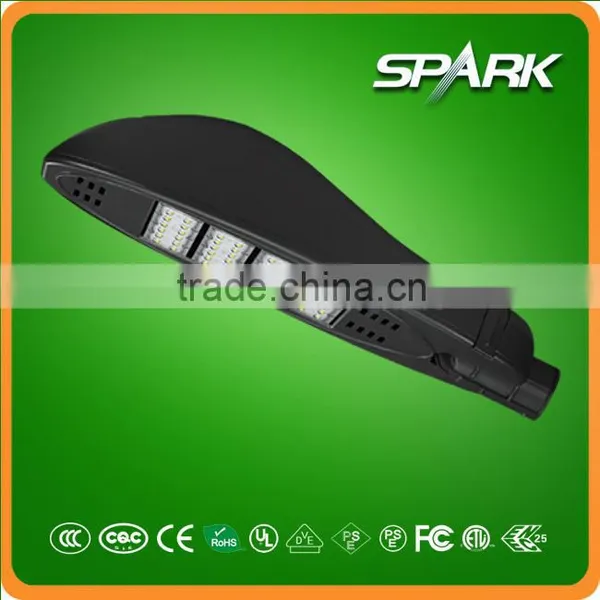

Spark Module LED street lights with UL, PSE, VDE and IP66 IP Rating

FOB Price

Negotiable / Carton

2 Cartons(Min.Order)

Supply Ability 70000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Spark LED Street Light	Model Number:	SPL-D120
Power Supply:	AC	Application:	Highway	Lampshade Material:	Toughened Glass

Product Description

Spark 2014 Module LED street lights with UL, PSE, VDE and IP66 IP Rating

Environmental friendly with no mercury content
LED as light source offer very long life as compared to conventional source
Wide operating voltage of 100-277V
Color rendering index (CRI) >70
Pre-wired, easy installation
Warm white, pure white and cool white available
Compact design, less weight and high cost performance.

A unique, modular design with enhanced optic-lense, makes this IP66-rated area luminaire the most versatile to date, providing exceptional lighting performance and reduced total cost of ownership in variety of applications. The modular design accommodates up LEDs to allow for customization of illumination and economic performance for a wide range of applications. The advanced thermal management system contributes to unparalleled lumen maintenance.

Application:

Highway, Factories, Hospitals, Government, Public Buildings, Community etc.
Main Technology Index:

Model No.	SPL-D120
Lamp Rated Total Power	120W
Lamp Total Luminous Flux	10200-12000lm
Lamp Rated Luminous Efficiency	85-100 lm/W
Input Voltage	100-277VAC
Beam Angle	145° x 75°
PF	0.95
IP Rating	IP66
Power Efficiency	90%
CTT	Warm White:3000-3500K; Pure White:4000-4500K; Cool White:5000-5700K
CRI	Ra>70
Frequency Range	47-63 Hz
Storage Temperature	-40°C--+80°C
Working Temperature	-40°C--+50°C ; 10%-90%RH
Lamp Body Material	Aluminum Alloy
Net Weight	7.7kg
Gross Weight	9.3kg
Product Size	755x288x147mm
Package Size	877×355×238mm
Products must be connected to the earth wire
