4CH AHD DVR HD Digital Video Recorder Surpporting P2P

4CH AHD DVR HD Digital Video Recorder Surpporting P2P photo-1
4CH AHD DVR HD Digital Video Recorder Surpporting P2P photo-2
4CH AHD DVR HD Digital Video Recorder Surpporting P2P photo-3
4CH AHD DVR HD Digital Video Recorder Surpporting P2P photo-4
4CH AHD DVR HD Digital Video Recorder Surpporting P2P photo-5
4CH AHD DVR HD Digital Video Recorder Surpporting P2P photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Japan Nature
Model Number:
DVR-104L
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Japan Nature
Model Number DVR-104L





Japan Nature    AHD DVR 4CH AHD-L Coaxial HD Digital Video Recorder



Video Input: 4CH BNC

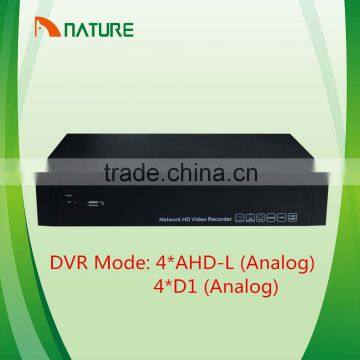

                 Analog:4CH *AHD-L;4CH*D1

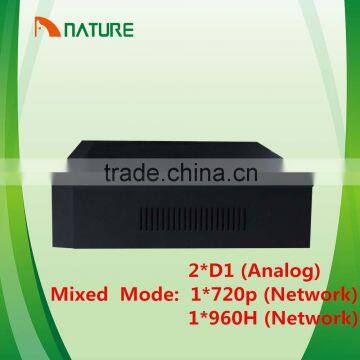

                 Mix:2CH*D1 + 1CH*720P + 1CH*960P;

                 Internet:1CH*1080P;1CH*720P + 3 CH*D1

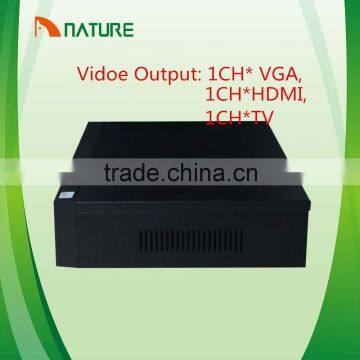

Video Output: 1CH*VGA, 1CH*HDMI, 1CH-TV

Playback: 4CH

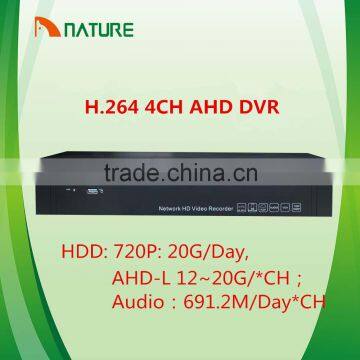

HDD Capacity Usage:  720P: 20G/Day; AHD-L 12~20G/*CH; Audio: 691.2M/Day*CH



Support AHD-M front-end real-time encoding;

Support for multiple cloud technology (P2P) , network penetration, alarm information send to your phone and other functions;

Support mobile phone surveillance ( iPhone, Android Windows Mobile, BlackBerry, Symbian );

Support multiple browser (IE, Chrome, Firefox, Safari);

Support more than 20 kinds language (English, Finnish , French , German, Greek, Italian ,

Japanese, Polish, Portuguese , Russian, Spanish , Thai , Chinese , Traditional Chinese , Turkish , etc. ) ,

Perfect protection circuit , unique triple watch-dog function

CMS, MYEYE, SDK Avaliable



SPECIFICATION



Model No.

DVR-104L

System

CPU

 Hisilicon 3515A

Video

Encoding

 H.264(High Profile);

Image Coding

 4*AHD-L@12fps

Coding  capability

 4*AHD-L@12fps

Multi-mode Input

 Analog:4CH *AHD-L;4CH*D1);

 Mix:2CH*D1+1CH*720P+1CH*960P;

 Internet:1CH*1080P;1CH*720P+3 CH*D1

Audio

Compression

 G.711A

Talkback

 Support

Recording

/Playback

Video Mode

 Manual>Alarm>Motion Detection >Timing

Playback

 4CH

Storage

/Backup

HDD

 720P: 20G/Day; AHD-L 12~20G/*CH; Audio:691.2M/Day*CH

Backup Mode

 Network backup , USB hard disk , USB recorder , SATA burner

Interface

Video Input

 4CH BNC

Video Output

 1CH* VGA,1CH*HDMI,1CH*TV

Audio Input

 4CH * RCA

Audio Output

 1CH* RCA

Alarm Input

 NO

Alarm Output

 NO

Internet

 RJ45 10M/100M

PTZ

 1*RS485;support multi PTZ protocol

USB

 2* USB

HDD

 1*SATA(4TB)

WIFI

 3G, WIFI( via USB extension)

Others

Power

 12V/2.5A



Size

 260*230*43mm



4CH AHD DVR HD Digital Video Recorder surpporting P2P



4CH AHD DVR HD Digital Video Recorder surpporting P2P



4CH AHD DVR HD Digital Video Recorder surpporting P2P



4CH AHD DVR HD Digital Video Recorder surpporting P2P





ABOUT US



Japan NATURE      www. .jp

was founded in 1972, with headquarter in Tokyo, Japan. As a professional security manufacturer for over 40 years, it created  lots of image processing technologies of security cameras since 1980s. NATURE has achieved “ISO 14001 International Environmental Baseline" Certification in Sep, 2000.

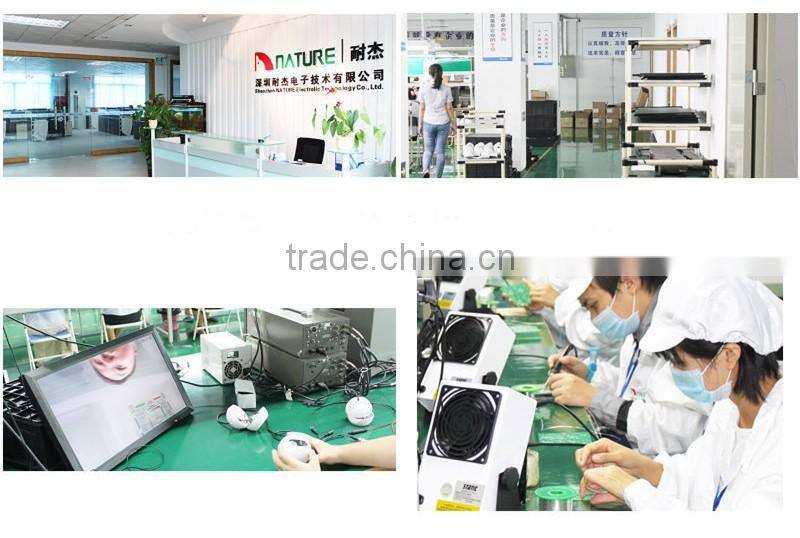

Shenzhen NATURE

is the factory in  China. It focuses on R&D, manufactures top quality products and offers high cost performance in accordance with the latest JAPAN NATURE.



QUALITY CONTROL

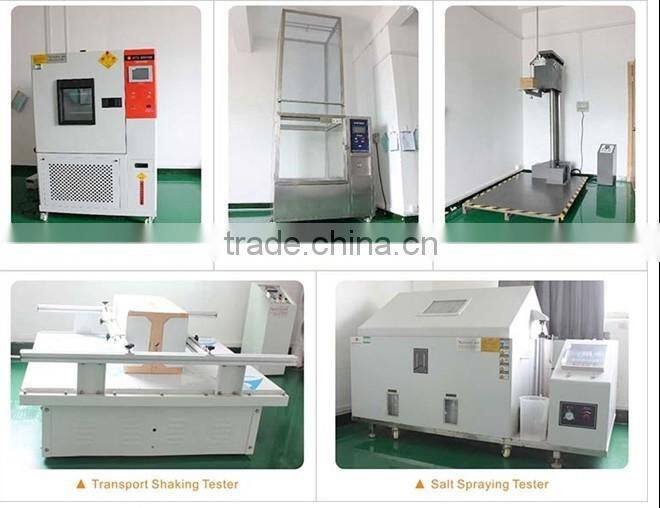

For each Japan NATURE camera,  Full strict testing procedures are carried out:

  • Temp&Humidity Test;
  • 48 hours Burn-in Test;
  • Function Test;
  • Night Version Test;
  • IP66 & Weatherproof Test;
  • Salt Spraying Test;
  • Transport Shaking Test;
  • Drop Test etc.





SHIPPING:

                     Qucik delivery  "3-10 days for ≤100pcs orders".
