Iron Melting Furnace / Cast Iron Moulding Machine

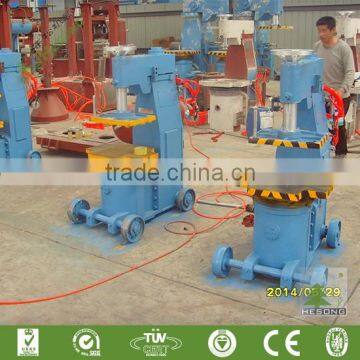

          Z14 Series Cast Iron Moulding Machine

A low cost option for foundries looking for a durable, reliable, simple to operate moulding machine to produce moulds

Ideally suited to medium repetition foundries producing general engineering castings.

Special Features:

Combined Jolt Squeeze

Accurate Draw

Low Maintenance

Operational Roller or Pin Lift Draw

Operational Safety Guards

Operation Pneumatic, Electrical or Microprocessor Control

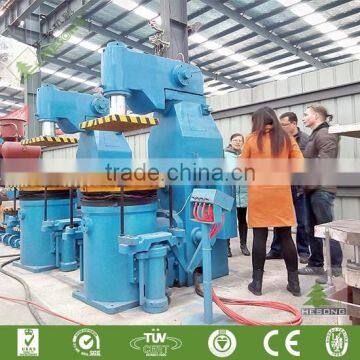

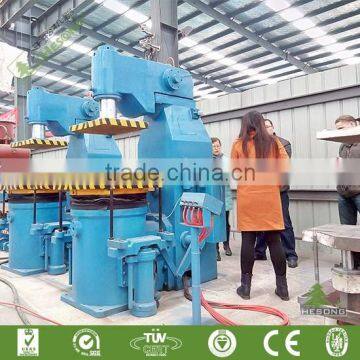

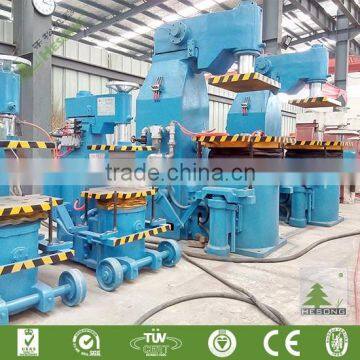

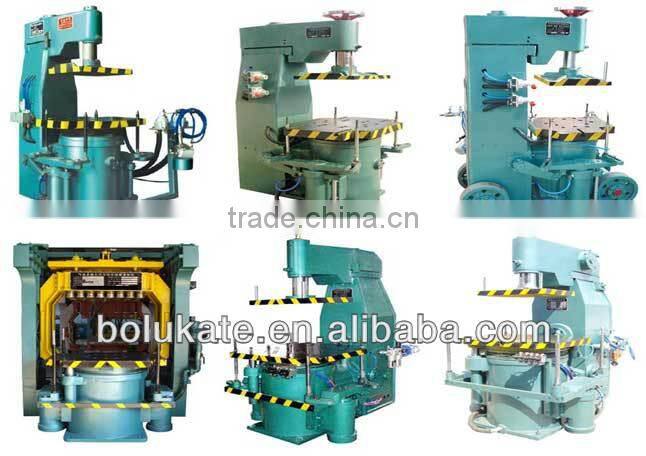

Jolt Squeeze Moulding Machine

Regarding sand molding machine:

This machine is suitable for batch production of small castings in single plate and single box molding, it can be made upper flask or lower flask.

This machine adopts spring microseism compacting mechanism, the cylinder diameter of compaction is big and pressure strength is large, so sand mould is compact and uniform; to ensure the effect on improving casting quality.

Pneumatic line is concise, simple operation, flexible, convenient use and maintenance.

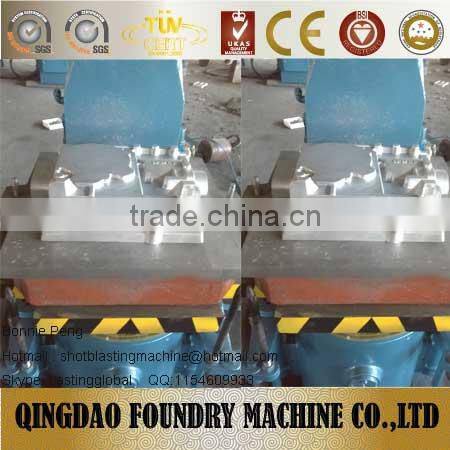

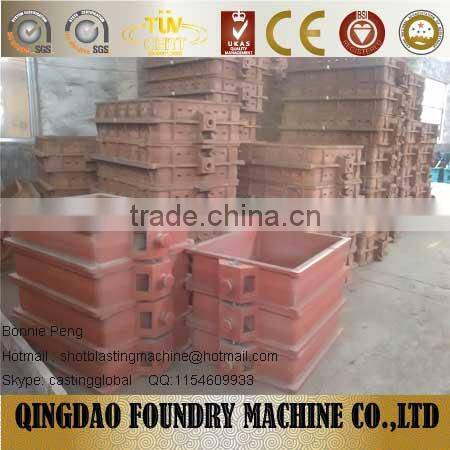

THE SAND BOX / FLASK                                                       THE MOULD PATERN

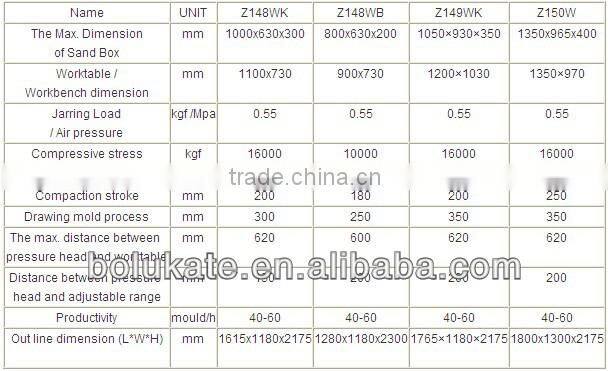

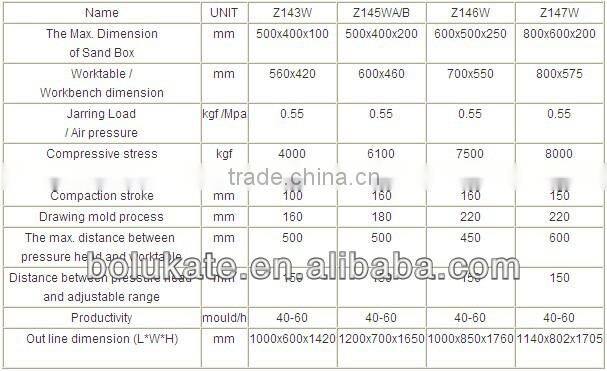

Principal Technical Parameter of Vertical Sand Molding Machine

Machine structure

This machine consists of machine body, mould mechanism, jolting compacting mechanism, rotating arm pressure head mechanism and Pneumatic tube system and soon on.

The material of machine body is a firm, hollow frame casting, the upper part supports rotating arm pressure head part. When compaction, rotating arm loops to the machine body and the pressure force is supported by machine body , the machine body is connected to jolting mechanism by bolt.

Mould mechanism consists of two mould cylinders, connecting rod, synchronizing shaft, mould frame, mould ejector pin and soon on. When drawing mould, mould frame leads connected synchronizing bar, synchronizing shaft and four ejector pins  jack up the flask so drawing mould.

Jolting compacting mechanism adopts air cushion microseismic pneumatic compacting mechanism, it can shock or Pressure shock according to the technics.The jolting force and compress force can be increased.

Jolting compacting mechanism adopts air cushion microseismic pneumatic compacting mechanism, it can shock or Pressure shock according to the technics.The jolting force and compress force can be increased.

The inputted compressed air enters into water-separating gas filter to eliminate water and impurities from compressed air, and then enters into the air regulator, then injectted lubricating oil , and then supplied to the pneumatic components and mechanism, this is controlled by four hand control valves.

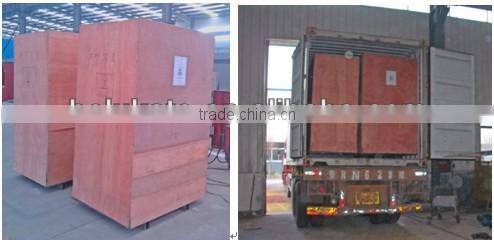

THE PACKING:

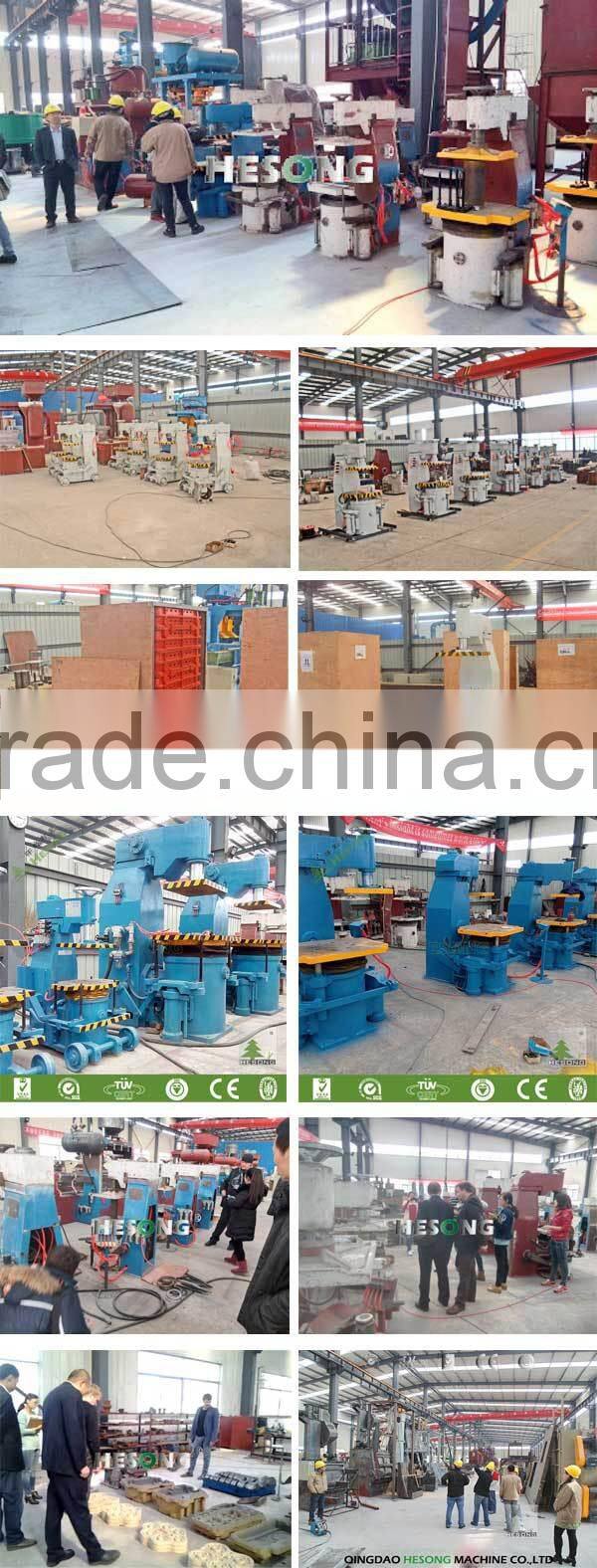

We specialises in the manufacture of Foundry Equipment and Surface Treatment Equipment.

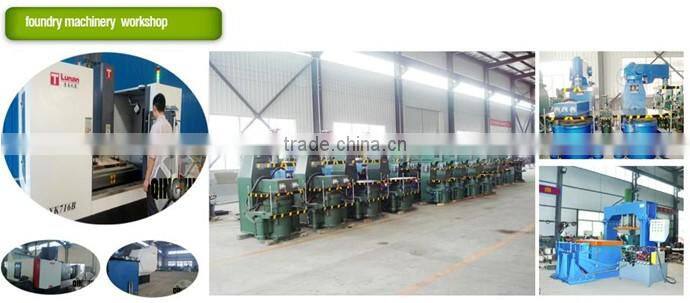

The design department is equipped with the latest computer aided technology to ensure the company remains at the forefront of equipment development.
In order to ensure the quality of products, we adopt advanced CNC machining centers.
We have first-class installation and commissioning team and experienced front-line workers.

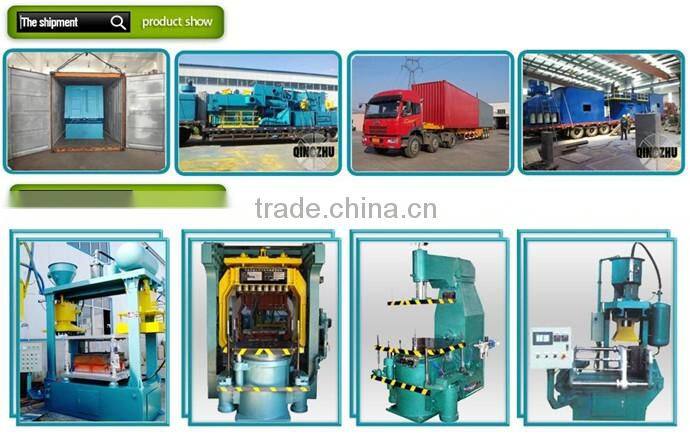

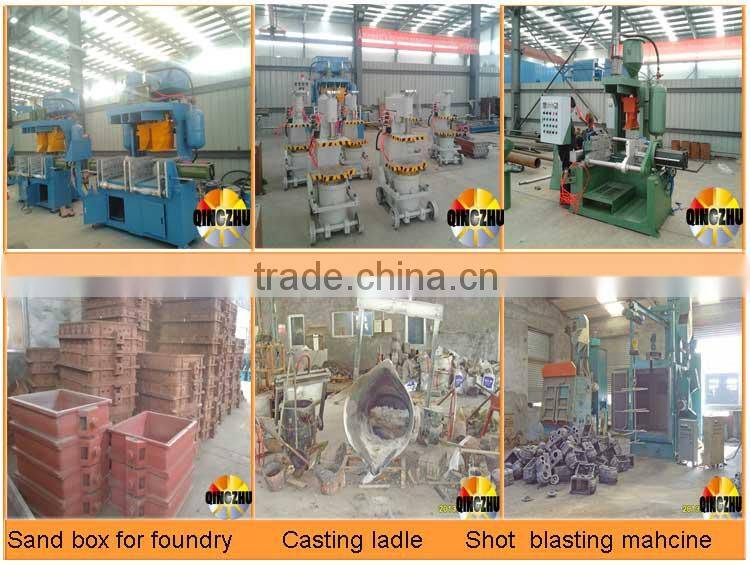

We specialize in the design and manufacture of:
Sand Mixing Machine
Shot Blasting Machine
Sand Blasting Chamber
Core Making Equipment
Jolt Squeeze Molding Machine

1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
Welcome to contact us or visit our company.
