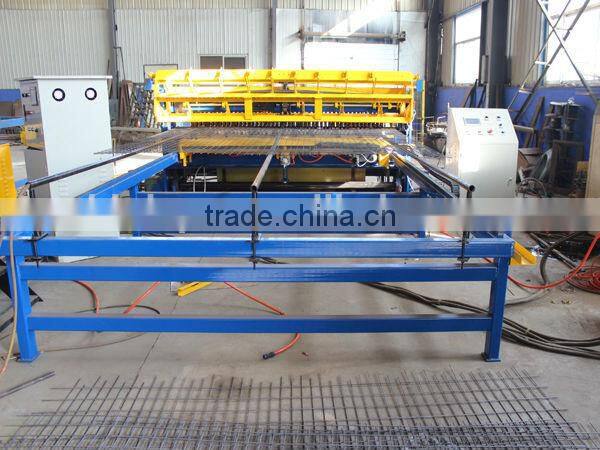

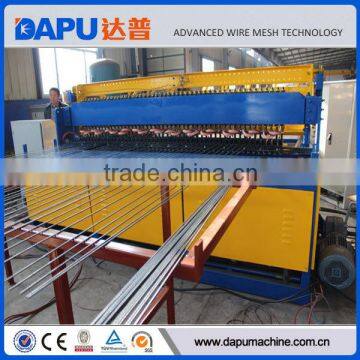

Type 1: Fence mesh welding machine
Technical Parameters
Model | DP-FP-2500A | Wire diameter | 2.5-6mm/3-8mm |
Line wire space | 50-300mm | Cross wire space | 25-300mm |
Width of mesh | Max.2.5m | Length of mesh | Max.6m |
Welding electrodes | 48 pcs | Welding speed | 50-75 times/min |
Rated electrical power | 125kva*6pcs | Wire feed way | Pre-straightened&pre-cut |
Weight | 4.2T | Overall size | 5.4m*3.1*1.7m |
Material: galvanized wire, black wire, stainless steel wire (special device)

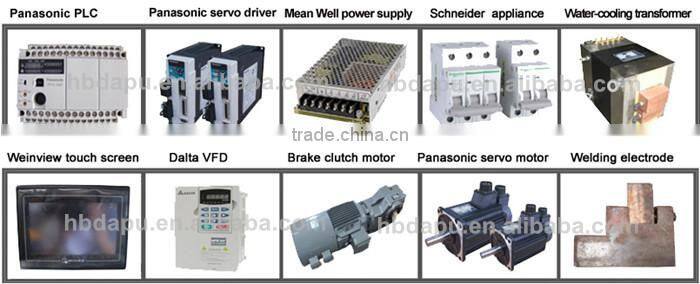

Main Technologies

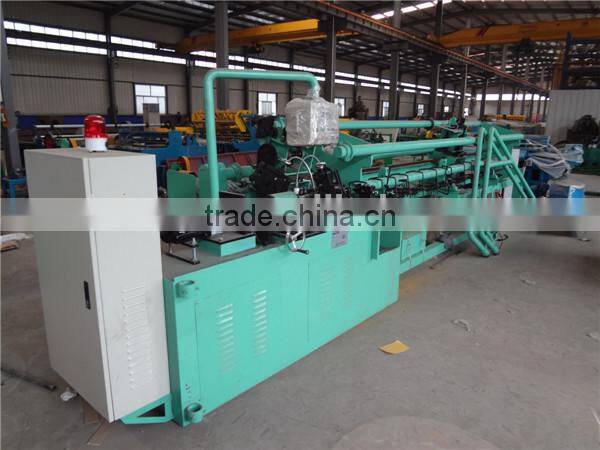

Type 2: Full automatic chain link fence machine
Technica Parameter
Max width of mesh | 4m |
Max length of mesh | 20m |
Mesh hole | 25-80mm |
Wire opening | 2-4mm |
Motor power for winding | 0.75kw |
Motor power for parting tool | 1.5kw |
The output per minute | for example, if the mesh is 50*50mm, width 2000mm, the output will be 2 square meters per minute |
Electric system | 1.Japan Mitsubishi PLC origin 2.Servo motor 3.French Schneider (Low-voltage electrical system) 4.Electric & Machinery from Taiwan Teco Electronic |
Control system | PLC automatic controller |
Power consumption | 9kw |
Unit weight | 4200kg |
Overall size | Main machine: 6700*1430*1800mm 5100*1700*1250mm |
Suitable texture of wire | High-quality low-carbon steel wire, Galvanized, stainless wire, Aluminum alloy wire, PVC Coated wire |
Mesh application
Best After-sales Service
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
Factory Picture
Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine, poultry cage welding machine, steel grating welding machine, welded wire mesh machine in roll, wedged wire screen welding machine, wire straightening and cutting machine etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, nail making machine, wire drawing machine, expanded metal mesh machine, expanded metal machine, gabion mesh machine, hexagonal wire mesh machine, crimped mesh machine etc.
Welcome to visit our factory!
