2mm water tank machinery drawing videos
Advantages:
The machine has perfect electrical system, protection system, and water seal system, featured by easy combination, high production and convenient operation and management.
Operational principle:
1. Main part: main reducer motor, mould case, guiding wheel frame and general electrical motor control system.
2. JZT series or Y series motor
3. Droved by their own gear combination axis.
4. Work vertically.
5.The rotational speed increases with the thinning and lengthening of the wire rods.
Suitable materials: steel, copper, aluminum, etc.
low-carbon
Application:
The product is extensively used to produce standard parts (e.g. welding rod, wire nail, screw, etc.)
Technical parameter
| Model size | Rotational speed (r/min) | Motor capacity (KW) | Type of motor | productivity |
1st | 6.2mm+5.5mm | 58 | 22 | 4-Level motor | 240*Dπ=377 |
2nd | 4.7mm | 78 | |||
3rd | 4.1mm | 100 | |||
4th | 3.5mm | 128 | |||
5th | 2.9mm | 160 | |||
6th | 2.4mm | 204 | |||
7th | 2.0mm | 240 | |||
Note: 1. The rotational speed of 4-level motor: 1440r/min 2. The max. diameter of inlet wire: 6.5mm 3. Suitable material: low-carbon iron wire. E.g. Q195, Q215, and Q 235 (annealing) 4. 8mm high quality low-carbon iron wire could be drawn by Model 560 drawing machine with 9pots, and needs 6-level motor and the capacity (22KW). | |||||

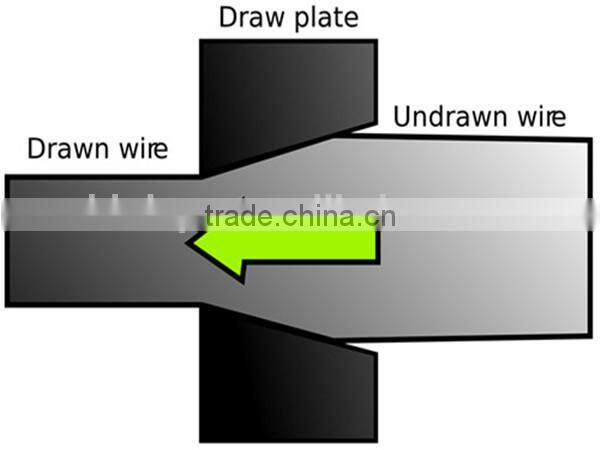

Working principle

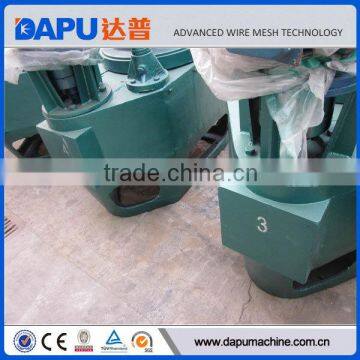

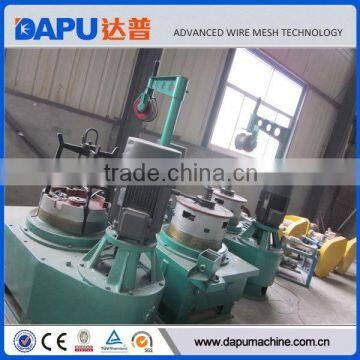

Machine picture

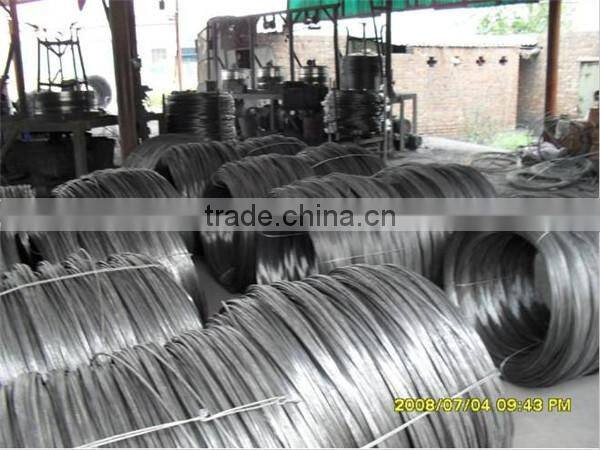

Finished products

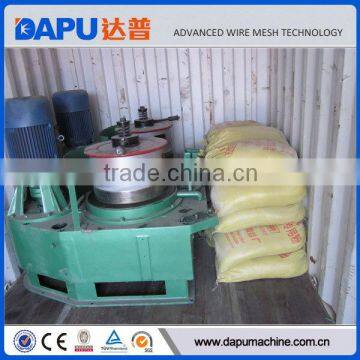

Packing: wooden pallet and plastic package in the container
Shipping: ocean transportation, land transportation or as required.
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
Brief Introduction
Hebei Dapu Impot & Export Trade Co., Ltd. is the leading manufacturer of wire mesh machine in China and always offers advanced wire mesh technology. We are engaged in designing, manufacturing and exporting different kinds of wire mesh machines. Our office is located in Shijiazhuang city, Hebei, China. And our own factory Hebei Jiake Welding Equipment Co.,Ltd is located in Anping Industrial zone, Hebei, China.
Please feel free to contact us,we will reply within 24h!
We want to know:
1. quantity you need (set)
2. wire diameter from inlet to outlet
