Home > Products > Terminal block > terminal block male female connector 12 poles

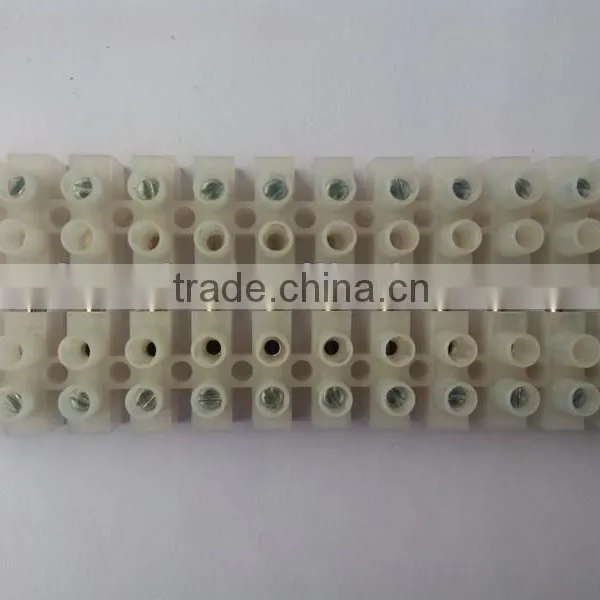

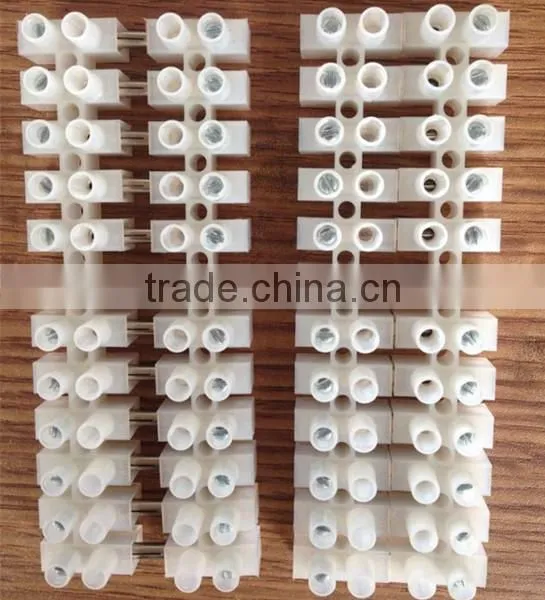

terminal block male female connector 12 poles
USD $0.08 - $0.2
/ Piece
1000 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- ningbo
- T/T
You May Like
-
screw bras PA lighting transparency speaker wire terminal block wiring
-
Low Voltage UnderGround Wire Connector with screw
-
high foot push in type terminal blocks 12 poles
-
CE UL Approved Fused Luminaire Push WireTerminal Connector
-
Ballast Connectors Terminal Block 2 pole
-
cable crimp cap Cloes-End Wire Connectors end terminal factory supply
Product Details
| Place of Origin | Zhejiang, China | Brand Name | sineyi | |
| Model Number | PC203 |
Product Description
Material:Nylon 66,UL 94V2, Natural
Base: Flat- bottom Fire rating:94V-2 UL94V2, natural.
Working Temperature:110aa or 150aa
Material:Nylon 66,UL 94V2, Natural
Base: Flat- bottom Fire rating:94V-2 UL94V2, natural.
Working Temperature:110aa or 150aa
International certification:VDE SGS CB CQC UL
Description:
| Model | Wire | Amp | Volt | Screw | Unit Dimenslone(mm/in.) | ||||||
| A | B | C | D | E | F | ||||||
| 8HP-0 | 1.5 | 17.5A | 450V | M2.6*5 | MM | 96 | 17.8 | 14.3 | 8.2 | 3 | 2.8 |
| 10HP-0 | 2.5 | 24A | 450V | M3.0*6 | MM | 116.5 | 20 | 15.5 | 10 | 3.5 | 3.3 |
| 12HP-0 | 6 | 41A | 750V | M3.5*7 | MM | 140.7 | 23.8 | 17.8 | 12 | 3.9 | 3.9 |
| 14HP-0 | 10 | 57A | 750V | M4*9 | MM | 158 | 25.6 | 24 | 13.5 | 4.4 | 4.8 |
| 16HP-0 | 16 | 76A | 750V | M4*9 | MM | 469.8 | 28 | 21.8 | 14.5 | 4.2 | 6 |
| 18HP-0 | 25 | 101A | 750V | M5*11 | MM | 194.4 | 36.9 | 27.5 | 16.5 | 4.2 | 7.5 |
