epoxy steel strand integral extrusion bridge cable
- 10000 Ton / Tons per Month
- fangcheng huangpu shanghai
- T/T L/C D/P D/A Credit Card PayPal
-
HM.PES13/15 12.7mm/15.24mm single-layer PE epoxy PC strand
-
Unbonded epoxy prestressed steel strands and of finished cable products
-
prestressed embossed /unbonded/epoxy-coated/galvanized steel strand
-
40CrNiMo steel tie rod for bridge suspender
-
hot dip galvanized steel wire
-
GJ32D steel wire rope extrusion cable
Product Details
| Place of Origin: | Guangxi, China | Brand Name: | HM | Material: | Iron |
Product Description
Usages:
1.steel wire rope/steel strand extrusion cable /extrusion tie rod as suspender for arch bridge
2.steel wire rope/steel strand extrusion cable /extrusion tie rodas tie rod for arch bridge
3.as anchorage cable in rock and soil
4.as big stadium building cable
5.small tonnage cable is particularly suitable for landscape builiding and bridge construction
Technical Performance Parameters:
| type of cable | cross-sectional area(mm²) | unit weight of strand(kg/m) | unit weight of cable body(kg/m) | outer diametr of cable(mm) | breaking force of cable(kN) | be equal to grade1670Mpa steel | |||
| smooth/galvanized | epoxy coating | epoxy filling | |||||||
| HM.GJ15-1 | 140 | 1.101 | 1.119 | 1.19 | 1.235 | Φ19 | Φ23 | 260.4 | 5-8/7-4 |
| HM.GJ15-3 | 420 | 3.303 | 3.357 | 3.57 | 4.730 | Φ50 | Φ53 | 781.2 | 5-23/7-12 |
| HM.GJ15-4 | 560 | 4.404 | 4.476 | 4.76 | 5.930 | Φ52 | Φ55 | 1041.6 | 5-31/7-16 |
| HM.GJ15-5 | 700 | 5.505 | 5.595 | 5.95 | 7.320 | Φ64 | Φ68 | 1302.0 | 5-39/7-20 |
| HM.GJ15-6 | 840 | 6.606 | 6.714 | 7.14 | 8.560 | Φ64 | Φ68 | 1562.4 | 5-47/7-24 |
| HM.GJ15-7 | 980 | 7.707 | 7.833 | 8.33 | 9.790 | Φ64 | Φ68 | 1822.8 | 5-55/7-28 |
| HM.GJ15-8 | 1120 | 8.808 | 8.952 | 9.52 | 11.250 | Φ76 | Φ80 | 2083.2 | 5-63/7-32 |
| HM.GJ15-9 | 1260 | 9.909 | 10.071 | 10.71 | 13.210 | Φ84 | Φ88 | 2343.6 | 5-71/7-73 |
| HM.GJ15-12 | 1680 | 13.212 | 13.428 | 14.28 | 16.650 | Φ84 | Φ88 | 3124.8 | 5-95/7-48 |
| HM.GJ15-13 | 1820 | 14.313 | 14.547 | 15.47 | 18.460 | Φ96 | Φ100 | 3385.2 | 5-103/7-52 |
| HM.GJ15-14 | 1960 | 15.414 | 15.666 | 16.66 | 20.000 | Φ98 | Φ102 | 3645.6 | 5-111/7-56 |
| HM.GJ15-15 | 2100 | 16.515 | 16.785 | 17.85 | 21.420 | Φ98 | Φ102 | 3906.0 | 5-119/7-61 |
| HM.GJ15-16 | 2240 | 17.616 | 17.904 | 19.04 | 22.660 | Φ105 | Φ109 | 4166.4 | 5-127/7-64 |
| HM.GJ15-17 | 2380 | 18.717 | 19.023 | 20.23 | 23.340 | Φ105 | Φ109 | 4426.8 | 5-135/7-69 |
| HM.GJ15-18 | 2520 | 19.818 | 20.142 | 21.42 | 24.580 | Φ105 | Φ109 | 4687.2 | 5-143/7-73 |
| HM.GJ15-19 | 2660 | 20.919 | 21.261 | 22.61 | 25.810 | Φ105 | Φ109 | 4947.6 | 5-151/7-77 |
| HM.GJ15-22 | 3080 | 24.222 | 24.618 | 26.18 | 30.410 | Φ118 | Φ112 | 5728.8 | 5-175/7-89 |
| HM.GJ15-25 | 3500 | 27.525 | 27.975 | 29.75 | 34.690 | Φ128 | Φ132 | 6510.0 | 5-198/7-101 |
| HM.GJ15-27 | 3780 | 29.727 | 30.213 | 32.13 | 36.790 | Φ128 | Φ132 | 7030.8 | 5-214/7-109 |
| HM.GJ15-31 | 4340 | 34.131 | 34.689 | 36.89 | 40.900 | Φ133 | Φ137 | 8072.4 | 5-246/7-125 |
| HM.GJ15-37 | 5180 | 40.737 | 41.403 | 44.03 | 50.280 | Φ148 | Φ152 | 9634.8 | 5-293/7-150 |
Application structure example of extrusion cable:

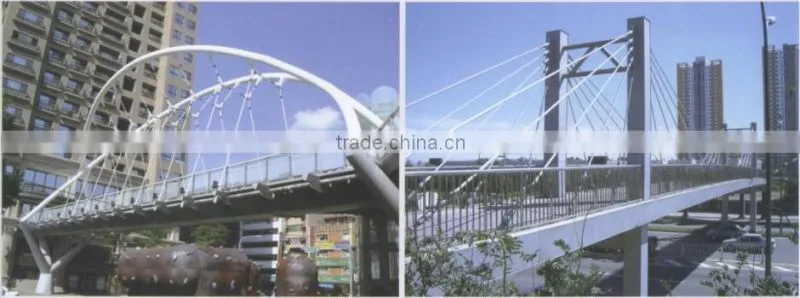

1.for landscape bridge and building structure
2.for external cables and tie rod cables

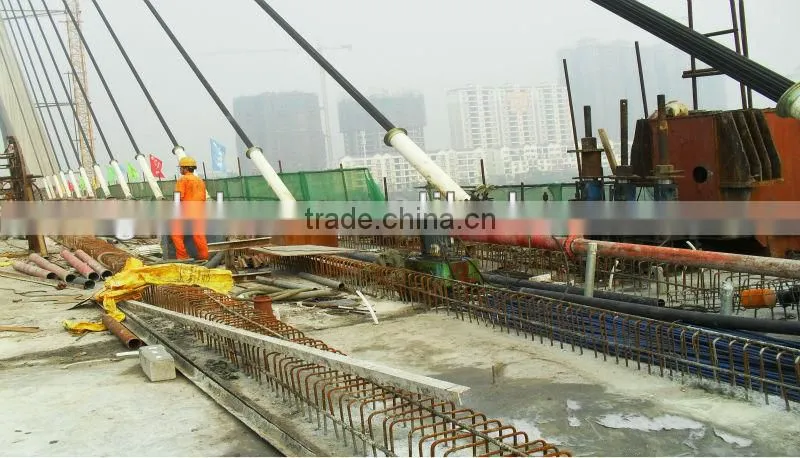

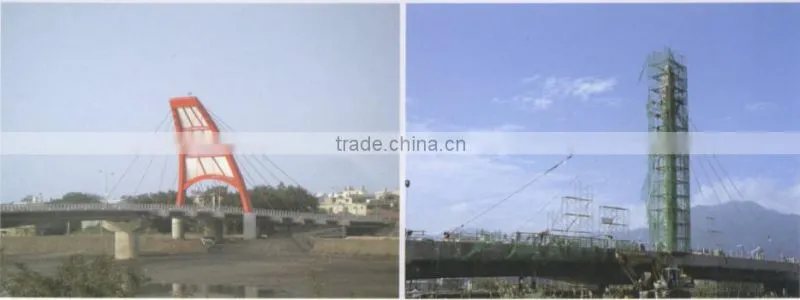

3.for cable-stayed structure:
4.for a suspension bridge:

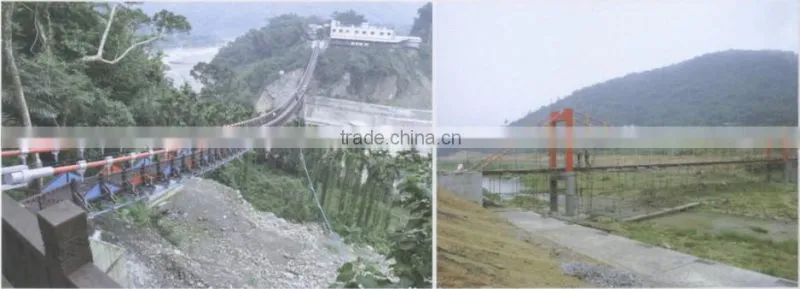

Fumei bridge of ali mountain in Tanwan,2011 No.1landscape suspension bridge in qiongzhong Hainan,2011
our features:
We provide after-sale service, technical support, personalization and processing, production on-demand and strictly in accordance with the buyer requirements to provide quality services. Provide engineering construction for bridge,railway,building etc,and maintenance and reinforcement of bridge.We have a strong engineering team who are all qualified and resolve kinds of problems during construction.
