YDC2000-200 series lightweight hydraulic core-through(stressing)prestress jack

Structure:

1.a fixed part                                           2.a moving part                                3.a hoisting assembly

   a core-through sleeve                             a pistion

   locating nuts                                             sealing members

   a big end cap

   a rear seal plate

   a rear clamp ring

   sealing members

  The structure diagram of the jacks is shown in figure1:

Working Principle:

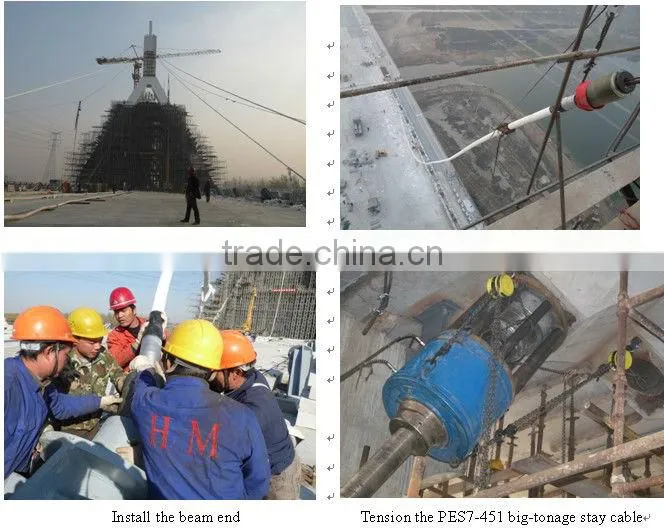

Under the function of oil pressurre,the moving part moves relative to the fixed part to realize tensioning and release jack.The design tensioning force can be obtained by controlling the area of the tensioning cavity and the oil pressurre.In oredr to reduce the weight of the jack,and considering the length of prestressing tendons for conventional members,the stroke of the jack is designed as 200mm.The core-through jacks has the performance of continuously progressive repeated tensioning,and it can realize the tensioning of prestressing tendons of different lengths.It is widely applied to the construction of prestressed concrete structure,bridge,power stations,highways,high-rise building,ground anchorage,etc.

Specifications and models meaning:

YDC2000-200:

YDC——Hydraulic Core-through jack

2000——Nominal Tensioning Force(KN)

200——Tensioning Stroke(mm)

Advantages:

1.more compact structure

2.good sealing performance

3.light weight

4.small volume

5.convenient installation and dismantlement.

Technical Performance Parameters:

YDC series lightweight core-through jacks have multiple specifications,including 600KN,1000KN,1500KN,2000KN,2500KN,3000KN,4000KN,5000KN,6500KN,9000KN,10000KN,12000KN,etc.The standard stroke of tensioning is 200mm,and it can also be customized according to the customer demand.The technical performance parameters are shown in table 1.

note:the mass of main machine and lenghth dimensions change along with strokes.There will be no further notice for the changes of data in the table due the design changes of jacks.

our features:

We provide after-sale service, technical support, personalization and processing, production on-demand  and strictly in accordance with the buyer requirements to provide quality services.Provide engineering construction for bridge,railway,building,etc.
