3 axle 60t side wall / fence wall / side panel semi trailer
- 150 Unit / Units per Month
- Tianjin or Qingdao Port
- T/T
- China drop side semi trailer for sale
- hot sale enclosed cargo trailer
- 3 axles cargo transport semi trailer / truck trailer / semi-trailer for sale
- animal,fresh vegetable, grain transport trailer
- 40t 3 axles fence semi trailer for trucks and trailers, fence truck trailer
- Tri-axle China Export Drop Side Semi Trailer
Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | Other, ccc iso9001 |
Size: | 13000 X 2500 X 2900 mm | OEM No.: | 370832228003534 | Max Payload: | 40-60T |
Place of Origin: | Shandong, China | Brand Name: | SHENGRUN | Model Number: | SKW9402 |
Product Description

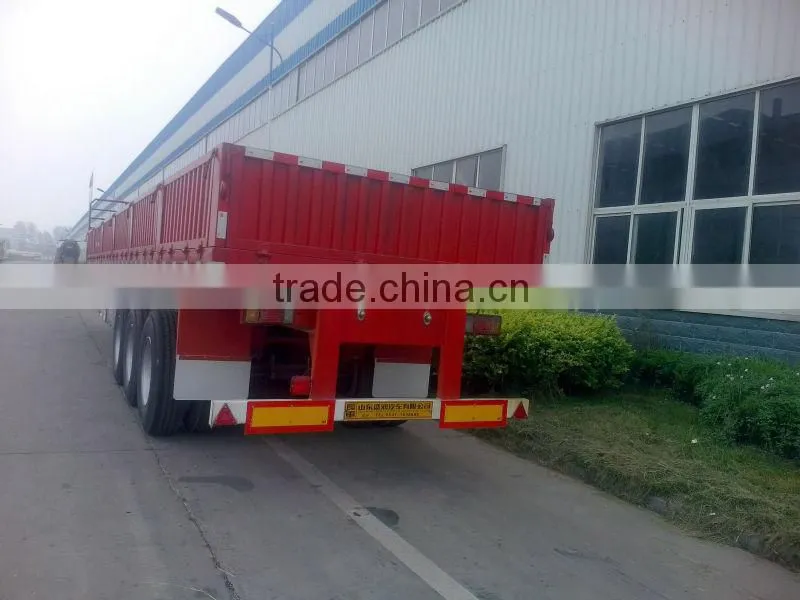

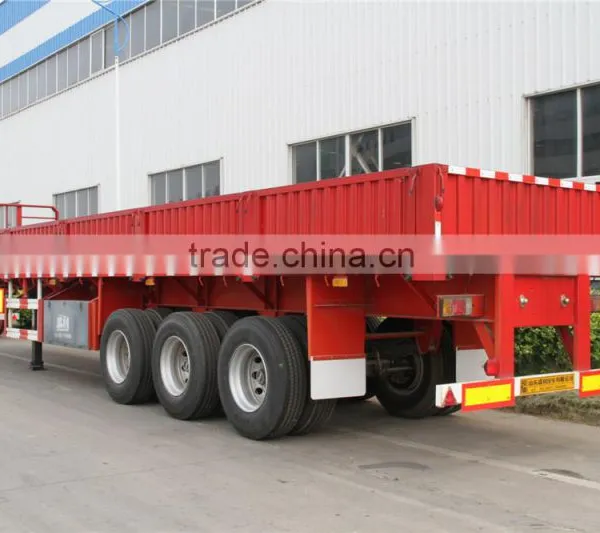

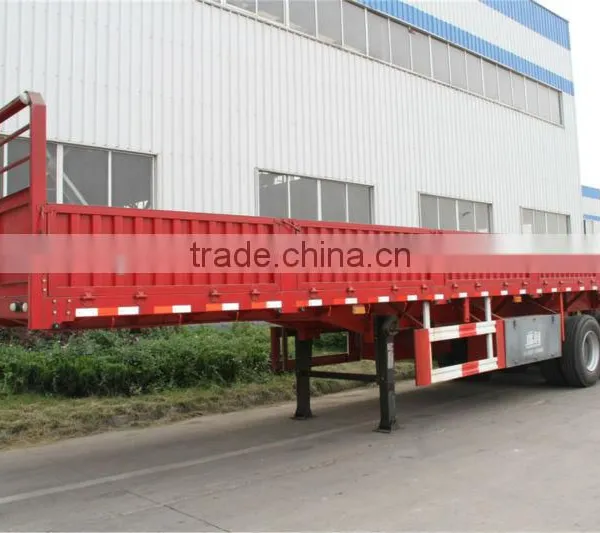

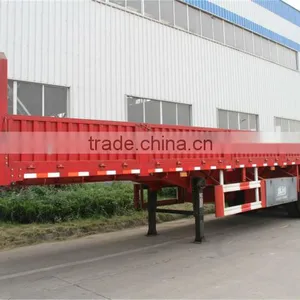

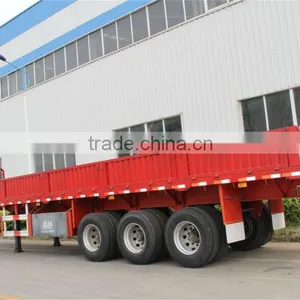

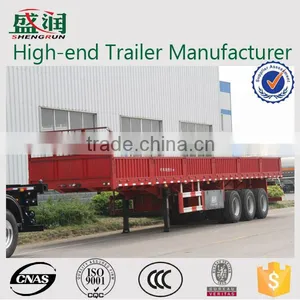

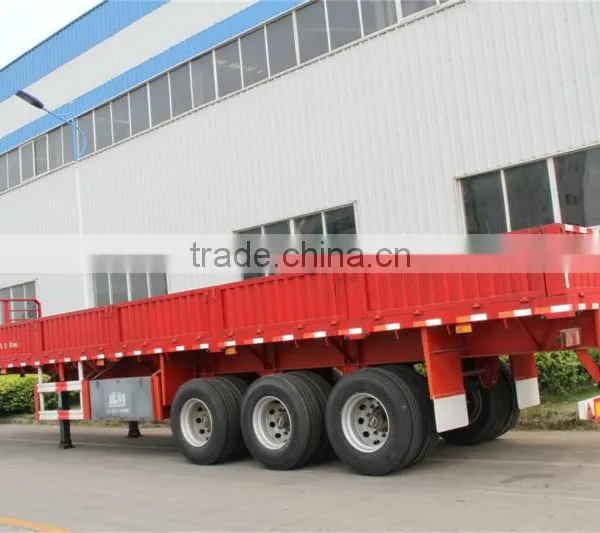

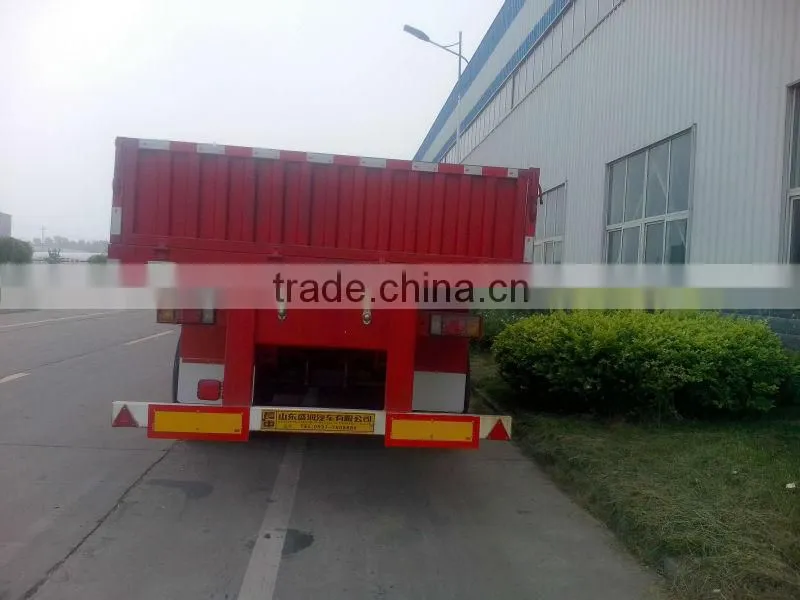

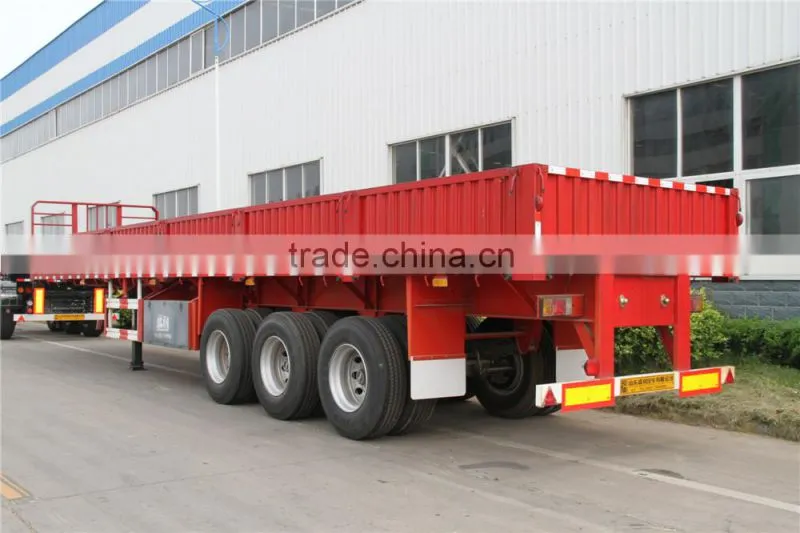

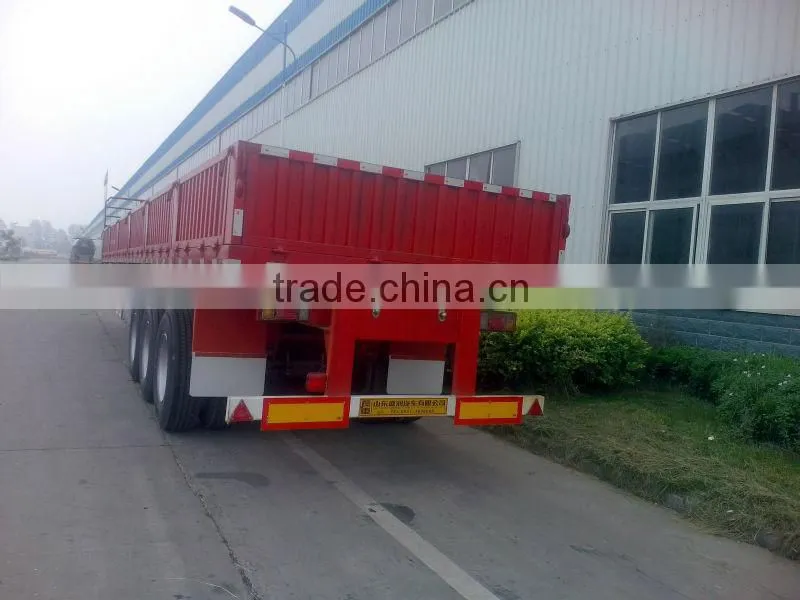

3 axle 60t side wall / fence wall / side panel semi trailer
specification of 3 axle 60t side wall / fence wall / side panel semi trailer
Specifications | ||
Manufacturer | Shandong Shengrun Automoblie Co., Ltd |
|
Model Nunber | SKW9406/SKW9407/SKW9404/SKW9405/SKW9402 | |
Product type | Flatbed semi trailer | |
Outside dimension | Length:8500mm-13000mm width:2500 mm height:2860mm-2900mm | |
Tare weight | About 6T | |
Wheelbase | 6560mm+1310mm+1310mm | |
Loading capacity | 30T-60T | |
Axle | 13T/16T,FUWA/BPW/HUAJING Brand | |
ABS system | Optional | |
Front/rear | -/2420 | |
Twist locks | Four,Eight,Twelve pieces(Lifting type or Twist screw type), optional | |
Suspension | Mechanical suspension(Germany Type or America Type) or Air suspension(China brand or BPW brand) | |
Spring leaf | 90(W)mm *13(Thickness)mm*10Layer, optional | |
Tires | 12 Pieces Triangle Brand | |
Rim | 9.00×22.5 China brand 12pieces | |
King pin | JOST 2.00 or 3.5 ,Welding type | |
Support legs | JOST brand D200T or China brand 28tons( Double speed) | |
The material of main beam | The height of the beam is500mm,upper plate is 14 mm,down plate is 16mm,middle plate is 8 mm,Material is Q345B steel | |
Floor plate | 3mm or can be optional | |
Side beam | 16mm or 18mm channel stee (Material is Q235steel) | |
Side wall | 600-1500mm height, or can be do box type,for choose | |
Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks Or China brand | |
Electrical System | 24V,7 wire harness | |
Tool box | One piece or according to the requirement of the buyer | |
Painting | Compete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint | |
Chassis name | Cargo truck chassis | |
Reflective warning signage | Manufacturer: Changzhou Hua R Sheng Reflective Material Co., Ltd. Brand:TONGMING Product Type:TM1200-1 | |
Others
| 1. This vehicle is used to transport 40FT container. 2. ABS system: type: 4S/2M. Manufacturer: Guangzhou KEMI Electronic Technology Co., Ltd. 3. Under-run protector:with the material of Q235B,be welding with the main body 4. Rear under-run protector: the height above the ground is 500mm Section:150mm*55mm. | |
Shipping terms | By bulk cargo carrier,RORO or 40HQ container |
shipping terms of 3 axle 60t side wall / fence wall / side panel semi trailer :
By bulk cargo carrier,RORO or 40HQ container
Our aftersales service of 3 axle 60t side wall / fence wall / side panel semi trailer :
- We always adhere to:"By the quality strives for the survival! Service for reputation!"
- What we pursue is a long-term cooperation!
- We always provide timely service to ensure effective!
- You can get our service until the problem is resolved or until get your satisfaction!
Our warranty of trailer is one year.
so if there is any problem about the quality, please tell us without hesitation.
Our technician will serve for you!
We are sincerely hope to cooperate with you and establish a long term relationship with you.
So we always focus on quality, not price!
Shandong Shengrun Automobile Co., Ltd. is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China(former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management.
We are the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, tipper, fuel tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, LNG, CNG, and other special vehicles.
Our company covers an area of 730,000 square meters, total assets 460 million RMB. We have more than 800 workers; including 128 persons with senior technical title. We have top-notch numerical control cutting machine, automatic welding machine, large-size bending machine and board press machine in China, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets test equipment which are advanced technology and Hi-Tech equipment. One hundred kinds of truck semi-trailers and tank trailers have passed our National Technical Appraisal and up to top class level in China, we have passed many certificates, such as ISO9001: 2008, CCC etc.
Persisting in "the quality will cast on the brand, the good faith building future" as the enterprise objective, the company's staff devote to the promotion of enterprise core competitive power, pursuing the sustainable development, the making strong trend brand, in order to serve all the clients.
Our company:
Our main products:
FAQ of 3 axle 60t side wall / fence wall / side panel semi trailer:
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by our group, every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied
during the whole producing process to ensure the welding quality.
Any question can call me or e-mail me directly.
Contact Person: Lois
TEL: 0086-537-7608808
MOB/Wechat/Whatsapp:0086-15550701995
